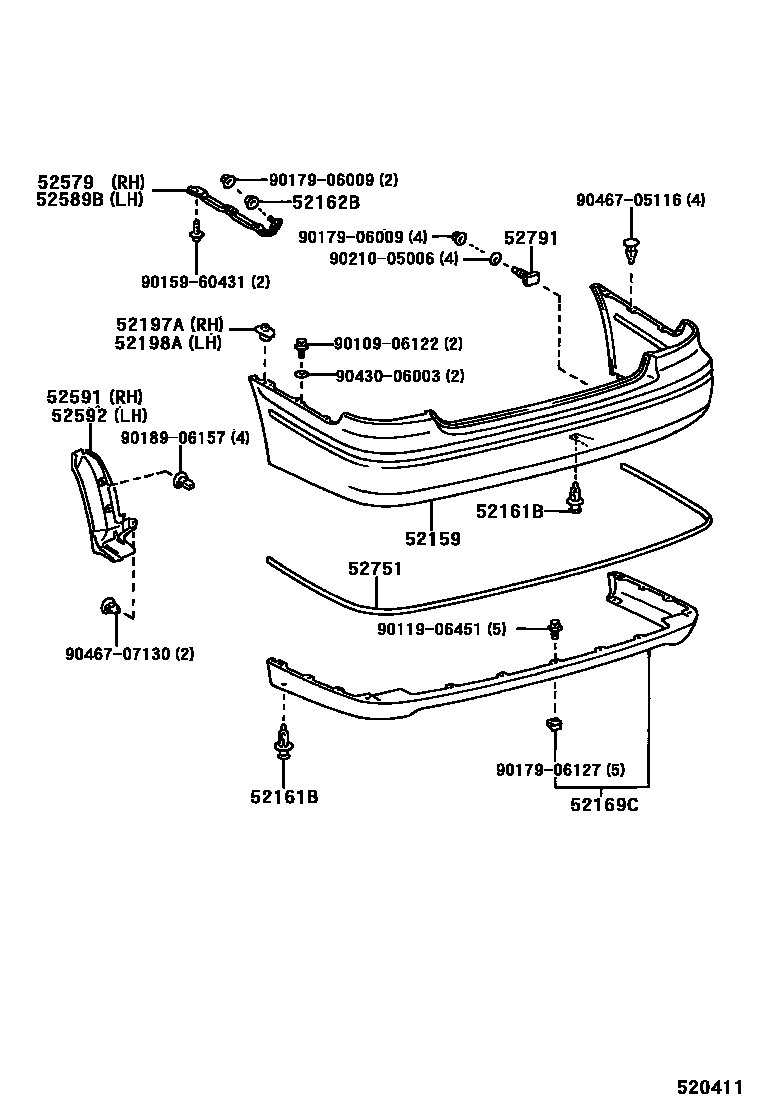

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-32390-A0iSV5#,ZZV50..WG199806-200004

SUPER WHITE 2,040

sub52159-32925

main52159-32390-A2iAZV55,SV55,ZZV50..A180E,A200E200004

SUPER WHITE 2,040

sub52159-32925

main52159-32390-B0iSV5#,ZZV50..WG199806-200004

SILVER ME GR.,1C5

sub52159-32925

main52159-32390-B1iSV5#,ZZV50..WG199806-200004

SILVER ME,199

sub52159-32925

main52159-32390-B2iSV55,ZZV50..A180E,A200E200004-200204

SILVER ME.GR.,1C5

sub52159-32925

main52159-32390-B3iSV55,ZZV50..A180E,A200E200004-200204

SILVER ME.,199

sub52159-32925

main52159-32390-B5iAZV55,ZZV50..A180E,A200E200204

SILVER ME.,1C0

sub52159-32925

main52159-32390-C0iSV5#,ZZV50..WG199806-200004

BLACK MC.,209

sub52159-32925

main52159-32390-D0iSV5#,ZZV50..WG199806-200004

RED MC.,3M8

sub52159-32925

main52159-32390-D1iSV55,ZZV50..A180E,A200E200004-200108

RED MC.,3M8

sub52159-32925

main52159-32390-E0iAZV55,ZZV50..A180E,A200E200204

BEIGE ME.,4P7

sub52159-32925

main52159-32390-G0iSV5#,ZZV50..WG199806-200004

DK.GREEN MC.,6R4

sub52159-32925

main52159-32390-G1iSV55,ZZV50..A180E,A200E200004-200204

DARK GREEN MC.,6R4

sub52159-32925

main52159-32390-G2iAZV55,ZZV50..A180E,A200E200204

JADE GREEN M.M.,6S9

sub52159-32925

main52159-32390-J0iSV5#,ZZV50..WG199806-200004

BLUE M.M,8L5

sub52159-32925

main52159-32390-J2iAZV55,SV55,ZZV50..A180E,A200E200004

DK.BLUE M.M.,8P4

sub52159-32925

main52159-32400-A0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-A1iSV5#,ZZV50..WG199812-199907

sub52159-32926

main52159-32400-A2iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004

SUPER WHITE 2,040

sub52159-32926

main52159-32400-A3iAZV5#,SV5#,ZZV50..A180S,A200S200012

SU. WHITE PM.,051

sub52159-32926

main52159-32400-B0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-B1iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-B3iSV5#,ZZV50..A180S,A200S200004-200012

SILVER ME.,2GZ

sub52159-32926

main52159-32400-B4iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004-200204

SILVER ME.GR.,1C5

sub52159-32926

main52159-32400-B5iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004-200204

SILVER ME.,199

sub52159-32926

main52159-32400-B6iAZV5#,ZZV50..A180,A180S,A200,A200G,A200S200204

SILVER ME.,1C0

sub52159-32926

main52159-32400-C0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-D0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-D1iSV5#,ZZV50..A180,A180S,A200,A200G,A200S200004-200108

RED MC.,3M8

sub52159-32926

main52159-32400-E0iAZV5#,ZZV50..A180,A180S,A200,A200G,A200S200204

BEIGE ME.,4P7

sub52159-32926

main52159-32400-G0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-G1iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004-200204

DARK GREEN MC.,6R4

sub52159-32926

main52159-32400-G2iAZV5#,ZZV50..A180,A180S,A200,A200G,A200S200204

JADE GREEN M.M.,6S9

sub52159-32926

main52159-32400-J0iSV5#,ZZV50..WG199806-200004

sub52159-32926

main52159-32400-J2iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004

DK.BLUE M.M.,8P4

sub52159-32926

main52159-32410-A0iSV5#,ZZV50..SED199806-200004

SUPER WHITE 2,040

sub52159-32924

sub52159-32923

main52159-32410-A2iSV5#,ZZV50..SED199908-200004

sub52159-32924

sub52159-32923

main52159-32410-A3iAZV5#,SV5#,ZZV50..SED200004

SUPER WHITE 2,040

sub52159-32924

sub52159-32923

main52159-32410-A4iAZV50,SV55,ZZV50..N180,N200200108-200112

SU. WHITE PM.,051

sub52159-32924

sub52159-32923

main52159-32410-B0iSV5#,ZZV50..SED199806-200004

SILVER ME.GR.,1C5

sub52159-32924

sub52159-32923

main52159-32410-B1iSV5#,ZZV50..SED199806-200004

SILVER ME,199

sub52159-32924

sub52159-32923

main52159-32410-B3iAZV55,SV55,ZZV50..N180E,N200E200112

SILVER ME.,2GZ

sub52159-32924

sub52159-32923

main52159-32410-B4iAZV50,SV5#,ZZV50..SED200004-200204

SILVER ME.GR.,1C5

sub52159-32924

sub52159-32923

main52159-32410-B5iAZV50,SV5#,ZZV50..SED200004-200204

SILVER ME.,199

sub52159-32924

sub52159-32923

main52159-32410-B6iSV55,ZZV50..N180E,N200E200112-200204

SILVER ME.,1C0

sub52159-32924

sub52159-32923

main52159-32410-C0iSV5#,ZZV50..SED199806-200004

BLACK MC.,209

sub52159-32924

sub52159-32923

main52159-32410-D0iSV5#,ZZV50..SED199806-200004

RED MC.,3M8

sub52159-32924

sub52159-32923

main52159-32410-D1iSV5#,ZZV50..SED200004-200108

RED MC.,3M8

sub52159-32924

sub52159-32923

main52159-32410-E0iAZV5#,ZZV50..SED200204

BEIGE ME.,4P7

sub52159-32924

sub52159-32923

main52159-32410-G0iSV5#,ZZV50..SED199806-200004

DK.GREEN MC.,6R4

sub52159-32924

sub52159-32923

main52159-32410-G1iAZV50,SV5#,ZZV50..SED200004-200204

DARK GREEN MC.,6R4

sub52159-32924

sub52159-32923

main52159-32410-G2iAZV5#,ZZV50..SED200204

JADE GREEN M.M.,6S9

sub52159-32924

sub52159-32923

main52159-32410-J0iSV5#,ZZV50..SED199806-200004

BLUE M.M.,8L5

sub52159-32924

sub52159-32923

main52159-32410-J2iAZV5#,SV5#,ZZV50..SED200004

DK.BLUE M.M.,8P4

sub52159-32924

sub52159-32923

52161BPIECE, REAR BUMPER

main52161-16010×4iAZV5#,SV5#,ZZV50199806

52162BPLATE, REAR BUMPER, NO.1

main52162-12050×2iAZV5#,SV5#,ZZV50..SED199806

52169CCOVER, REAR BUMPER, LOWER

main52169-32030iSV5#,ZZV50..SED199806-200004

sub52169-32900

main52169-32040-A0iAZV50,SV5#,ZZV50..N180,N180L,N200,N200G,N200L199806-200112

SUPER WHITE 2,040

sub52169-32900

main52169-32040-A1iAZV50,SV55,ZZV50..N180,N200200108-200112

SU. WHITE PM.,051

sub52169-32900

main52169-32040-B0iAZV50,SV55,ZZV50..SED200112-200204

SILVER ME.GR.,1C5

sub52169-32900

main52169-32040-B1iAZV50,SV5#,ZZV50..N180,N180L,N200,N200G,N200L199806-200112

SILVER ME,199

sub52169-32900

main52169-32040-B2iSV5#,ZZV50..N180L,N200L200004-200012

SILVER ME.,2GZ

sub52169-32900

main52169-32040-C0iSV5#,ZZV50..SED199806-200004

BLACK MC.,209

sub52169-32900

main52169-32040-D0iSV5#,ZZV50..N180,N180L,N200,N200G,N200L199806-200108

RED MC.,3M8

sub52169-32900

main52169-32040-E0iSV5#,ZZV50..SED199908-200004

sub52169-32900

main52169-32040-E1iAZV5#,ZZV50..SED200204

BEIGE ME.,4P7

sub52169-32900

main52169-32040-G0iAZV50,SV5#,ZZV50..N180,N180L,N200,N200G,N200L199806-200112

DK.GREEN MC.,6R4

sub52169-32900

main52169-32040-G1iAZV5#,ZZV50..SED200204

JADE GREEN M.M.,6S9

sub52169-32900

main52169-32040-J0iSV5#,ZZV50..SED199806-200004

BLUE M.M.,8L5

sub52169-32900

main52169-32040-J1iAZV50,SV5#,ZZV50..N180,N180L,N200,N200G,N200L200004-200112

DK.BLUE M.M.,8P4

sub52169-32900

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iAZV5#,SV5#,ZZV50199806

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-16020iAZV5#,SV5#,ZZV50199806

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-32060iAZV5#,SV5#,ZZV50..SED199806

52589BRETAINER, REAR BUMPER SIDE, NO.3 LH

main52589-32010iAZV5#,SV5#,ZZV50..SED199806

52591SEAL, REAR BUMPER SIDE, RH

main52591-32020iAZV5#,SV5#,ZZV50..WG199806

main52591-32030iAZV5#,SV5#,ZZV50..SED199806

52592SEAL, REAR BUMPER SIDE, LH

main52592-32010iAZV5#,SV5#,ZZV50..WG199806

main52592-32020iAZV5#,SV5#,ZZV50..SED199806

52751MOULDING, REAR BUMPER

main52751-32080iAZV5#,SV5#,ZZV50..WG199806

main52751-32090iAZV5#,SV5#,ZZV50..SED199806

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010×4iSV5#,ZZV50..WG199806-200004

sub90109-06354

main52791-12040×4iAZV5#,SV5#,ZZV50..SED200103

main52791-32010×4iSV5#,ZZV50..SED199806-200103

9010906122

main90109-06122

9011906451

main90119-06451

9015960431

main90159-60431

9017906009

main90179-06009

9017906127

main90179-06127

9018906157

main90189-06157

9021005006

main90210-05006

9043006003

main90430-06003

9046705116

main90467-05116

9046707130

main90467-07130

22 parts on this diagram · 2 diagrams in section
