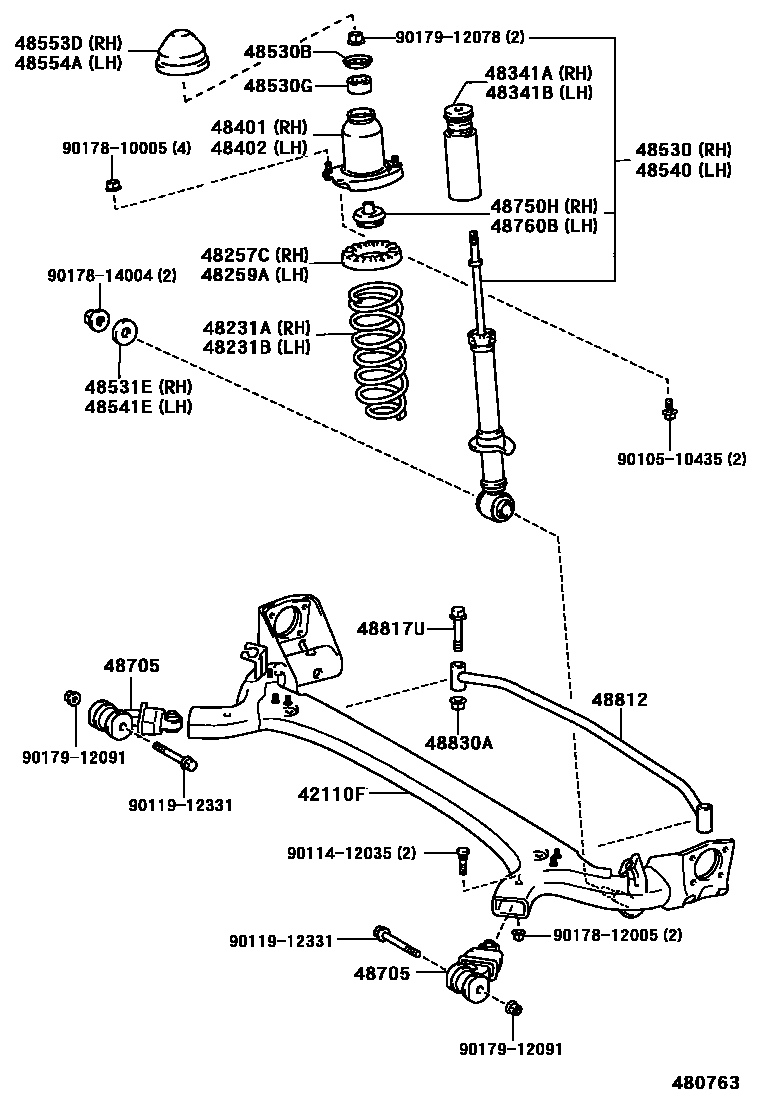

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-39506
sub48530-39516
sub48530-39526
sub48530-39536
sub48530-39686
sub48530-39696
sub48530-39706
sub48530-39716
sub48530-80133
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-39506
sub48530-39516
sub48530-39526
sub48530-39536
sub48530-39686
sub48530-39696
sub48530-39706
sub48530-39716
sub48530-80133
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
9010510435
main90105-10435
9011412035
main90114-12035
9011912331
main90119-12331
9017810005
main90178-10005
9017812005
main90178-12005
9017814004
main90178-14004
9017912078
main90179-12078
9017912091
main90179-12091
31 parts on this diagram · 3 diagrams in section
