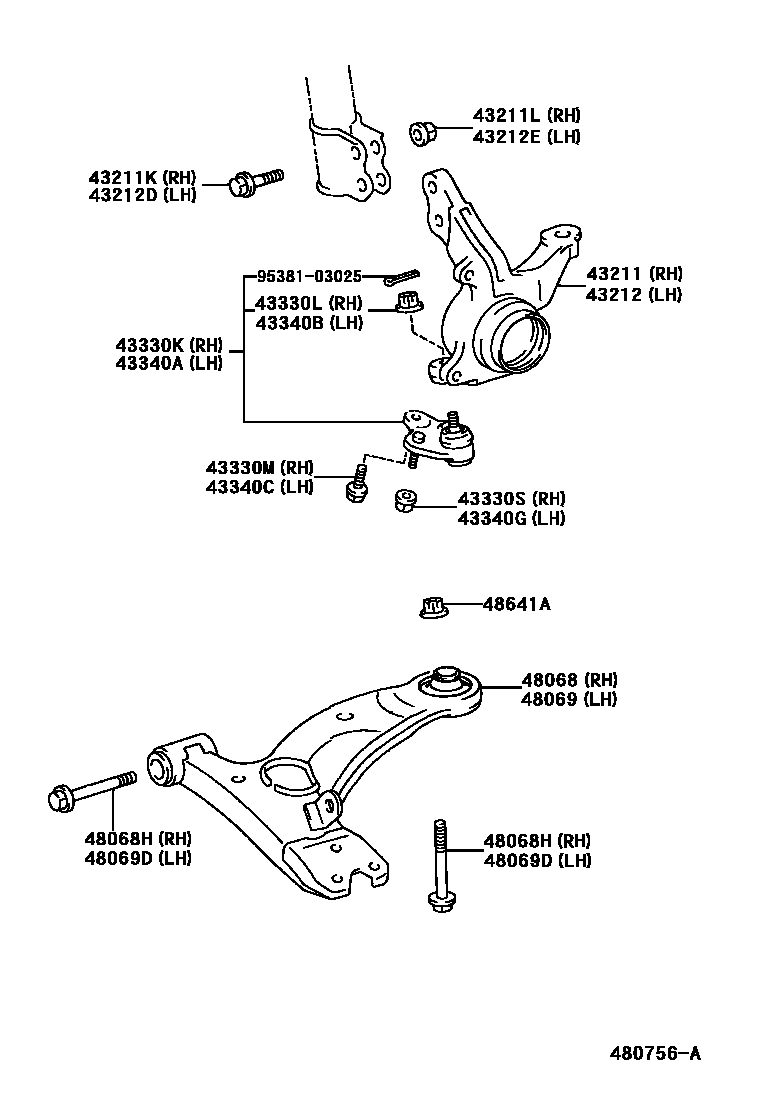

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-32120iAZV50,SV50,ZZV50199806

main43211-32130iAZV55,SV55199806

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001×2iAZV50,SV5#,ZZV50199906-200111

main90105-15004iAZV50,SV5#,ZZV50200004-200111

main90105-15005iAZV50,SV5#,ZZV50200004-200111

main90105-15006iAZV50,SV5#,ZZV50200004-200111

main90105-15008×2iSV5#,ZZV50199806-199906

main90109-15001×2iAZV5#,SV55,ZZV50200111-200212

main90109-15002iAZV5#,SV55,ZZV50200111

main90109-15003iAZV5#,SV55,ZZV50200111

main90109-15004iAZV5#,SV55,ZZV50200111

main90901-05001×2iAZV5#,ZZV50200212

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iAZV5#,SV55,ZZV50200111

main90179-15006×2iAZV50,SV5#,ZZV50199806-200111

43212KNUCKLE, STEERING, LH

main43212-32120iAZV50,SV50,ZZV50199806

main43212-32130iAZV55,SV55199806

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001×2iAZV50,SV5#,ZZV50199906-200111

main90105-15004iAZV50,SV5#,ZZV50200004-200111

main90105-15005iAZV50,SV5#,ZZV50200004-200111

main90105-15006iAZV50,SV5#,ZZV50200004-200111

main90105-15008×2iSV5#,ZZV50199806-199906

main90109-15001×2iAZV5#,SV55,ZZV50200111-200212

main90109-15002iAZV5#,SV55,ZZV50200111

main90109-15003iAZV5#,SV55,ZZV50200111

main90109-15004iAZV5#,SV55,ZZV50200111

main90901-05001×2iAZV5#,ZZV50200212

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iAZV5#,SV55,ZZV50200111

main90179-15006×2iAZV50,SV5#,ZZV50199806-200111

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iAZV5#,SV5#,ZZV50199806

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAZV5#,SV5#,ZZV50199806

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAZV5#,SV5#,ZZV50199806-200307

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070×2iAZV5#,SV5#,ZZV50199806-200307

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iAZV5#,SV5#,ZZV50199806

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAZV5#,SV5#,ZZV50199806

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAZV5#,SV5#,ZZV50199806-200307

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070×2iAZV5#,SV5#,ZZV50199806-200307

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-32070iSV5#,ZZV50199806-200004

main48068-32080iAZV50,SV5#,ZZV50200004-200205

main48068-32081iAZV55200204-200205

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086×2iSV5#,ZZV50199806-200004

main90119-14108×2iAZV5#,SV5#,ZZV50200004

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-32070iSV5#,ZZV50199806-200004

main48069-32080iAZV50,SV5#,ZZV50200004-200205

main48069-32081iAZV55200204-200205

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086×2iSV5#,ZZV50199806-200004

main90119-14108×2iAZV5#,SV5#,ZZV50200004

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iAZV5#,SV5#,ZZV50199806

9538103025

main95381-03025

20 parts on this diagram · 2 diagrams in section
