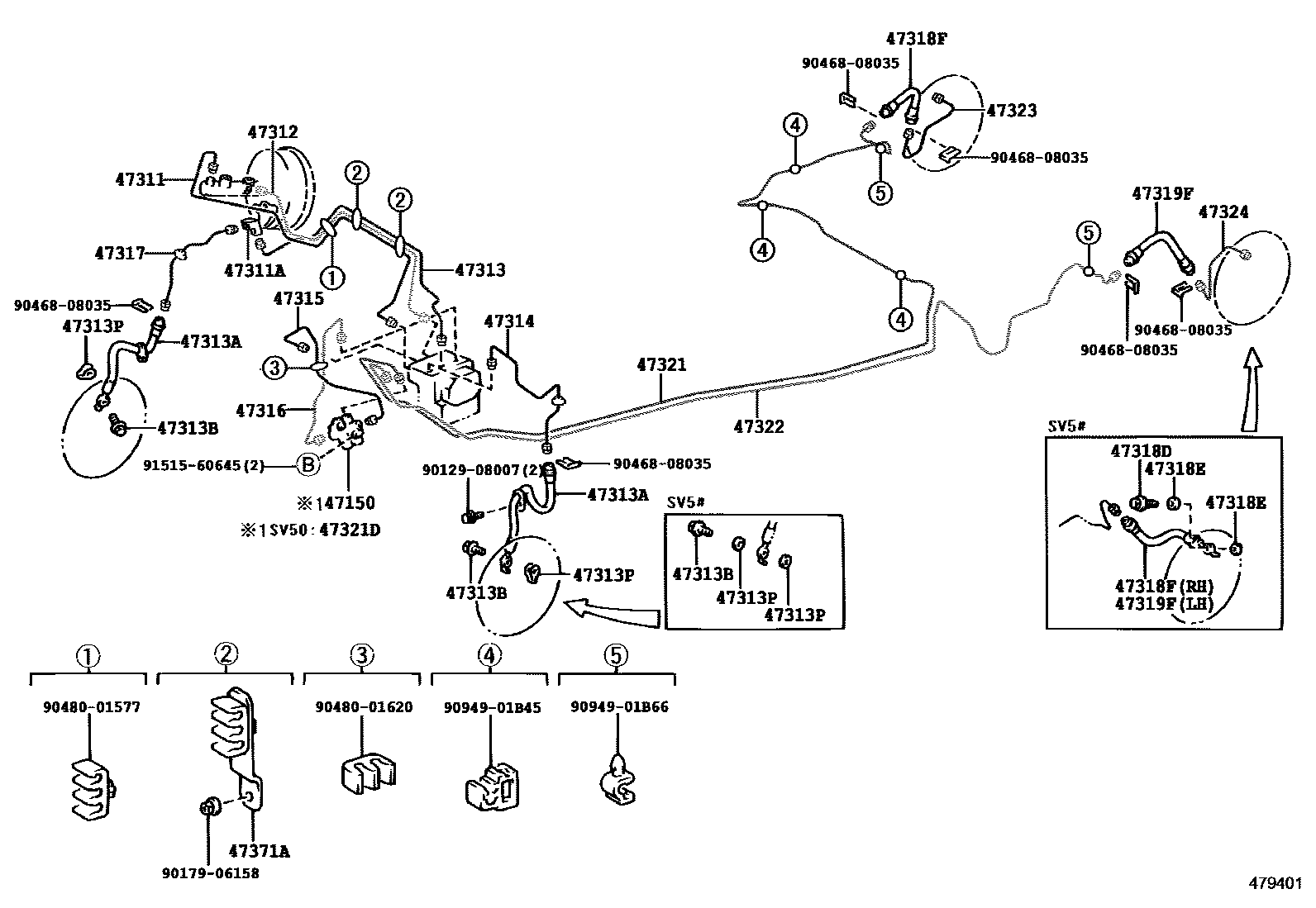

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-44020iZZV50..SED199806

main47150-46010iZZV50..WG199806

47311TUBE, FRONT BRAKE, NO.1

main47311-32110iSV55,ZZV50199806-200004

main47311-32120iSV50199806-200004

main47311-32150iSV55,ZZV50200004

main47311-32160iSV50200004-200108

main47311-32170iAZV5#200108

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12019iSV55,ZZV50199806-200004

main90904-12069iSV50199806-200004

47312TUBE, FRONT BRAKE, NO.2

main47312-32190iSV55,ZZV50199806-200004

main47312-32200iSV50199806-200004

main47312-32230iSV55,ZZV50200004

main47312-32240iSV50200004-200108

main47312-32250iAZV5#200108

47313TUBE, FRONT BRAKE, NO.3

main47313-32160iSV55,ZZV50199806-200004

main47313-32190iSV50199806-200004

main47313-32220iAZV5#,SV5#,ZZV50200004

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A32iZZV50199806-200004

main90947-02A33iZZV50199806-200004

main90947-02A34iSV5#199806-200004

main90947-02A35iSV5#199806-200004

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10045×2iSV5#199806-200004

main90401-10058×2iSV55,ZZV50200004

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iAZV5#,SV50200004

main47389-50020×2iZZV50199806-200004

47314TUBE, FRONT BRAKE, NO.4

main47314-32150iSV5#,ZZV50199806-200004

main47314-32190iAZV5#,SV5#,ZZV50200004

47315TUBE, FRONT BRAKE, NO.5

main47315-32160iSV5#,ZZV50199806-200004

main47315-32190iAZV5#,SV5#,ZZV50200004

47316TUBE, FRONT BRAKE, NO.6

main47316-32100iSV5#,ZZV50199806-200004

main47316-32120iAZV5#,SV5#,ZZV50200004

47317TUBE, FRONT BRAKE, NO.7

main47317-32100iSV55,ZZV50199806-200004

main47317-32110iSV50199806-200004

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045×2iAZV5#,SV5#199806

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iAZV5#,SV5#199806

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A36iSV50199806-200004

main90947-02A37iAZV55,SV55199806-200208

main90947-02A38iZZV50199806-200004

main90947-02C49iZZV50200004

main90947-02C50iAZV50,SV50200004

main90947-02D45iAZV55200209

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A36iSV50199806-200004

main90947-02A37iAZV55,SV55199806-200208

main90947-02A38iZZV50199806-200004

main90947-02C49iZZV50200004

main90947-02C50iAZV50,SV50200004

main90947-02D45iAZV55200209

47321TUBE, REAR BRAKE, NO.1

main47321-32180iAZV50,SV50,ZZV50200004

main47321-32190iAZV55,SV55200004

main47321-32210iSV50,ZZV50199806-200004

main47321-32220iSV55199806-200004

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iAZV5#,SV5#199806

47322TUBE, REAR BRAKE, NO.2

main47322-32170iAZV50,SV50,ZZV50200004

main47322-32180iAZV55,SV55200004

main47322-32200iSV50,ZZV50199806-200004

main47322-32210iSV55199806-200004

47323TUBE, REAR BRAKE, NO.3

main47323-32130iZZV50199806-200004

main47323-63010iZZV50200004

47324TUBE, REAR BRAKE, NO.4

main47324-32170iZZV50199806-200004

main47324-63010iZZV50200004

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32220×2iAZV5#,SV5#,ZZV50199806

9012908007

main90129-08007

9017906158

main90179-06158

9046808035

main90468-08035

9048001577

main90480-01577

9048001620

main90480-01620

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9151560645

main91515-60645

30 parts on this diagram · 4 diagrams in section
