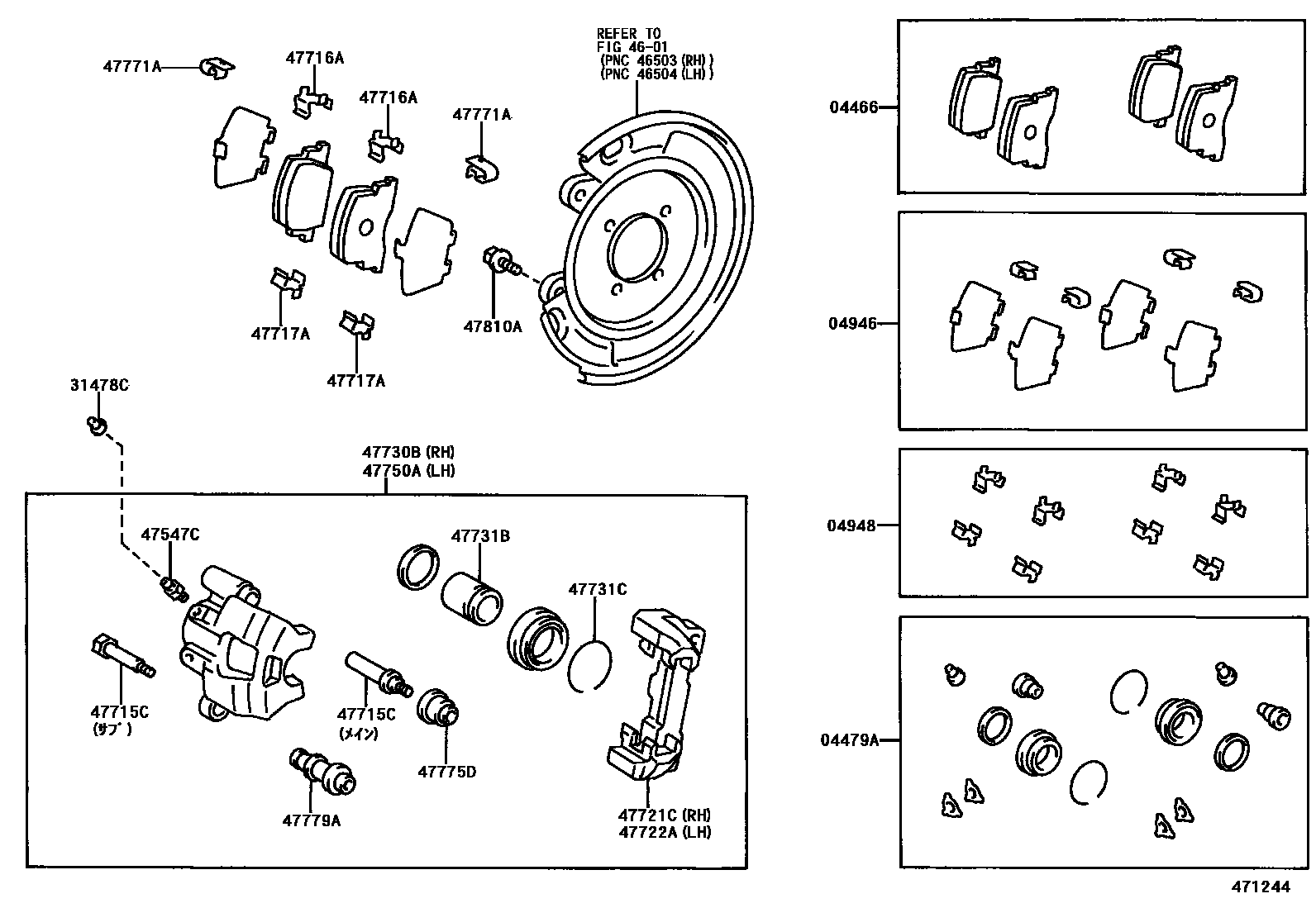

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-32030i199806-200204

main04466-32040i200204

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-32110i199806-200004

main04479-32120i200004

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32080i199806

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040i199806

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i199806

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i199806

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2i199806

main47715-32030×2i199806

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060×4i199806

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060×4i199806

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32150i199806

sub47715-32040

sub47721-32151

sub47722-32151

sub47771-32050

sub47875-30340

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-32150i199806

sub47722-32151

sub47715-32040

sub47771-32050

sub47875-30340

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-32170i199806

47731BPISTON, REAR DISC BRAKE

main47731-32060×2i199806

sub47731-32030

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002×2i199806

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-32170i199806

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×2i199806

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2i199806

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2i199806

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4i199806

20 parts on this diagram · 1 diagram in section
