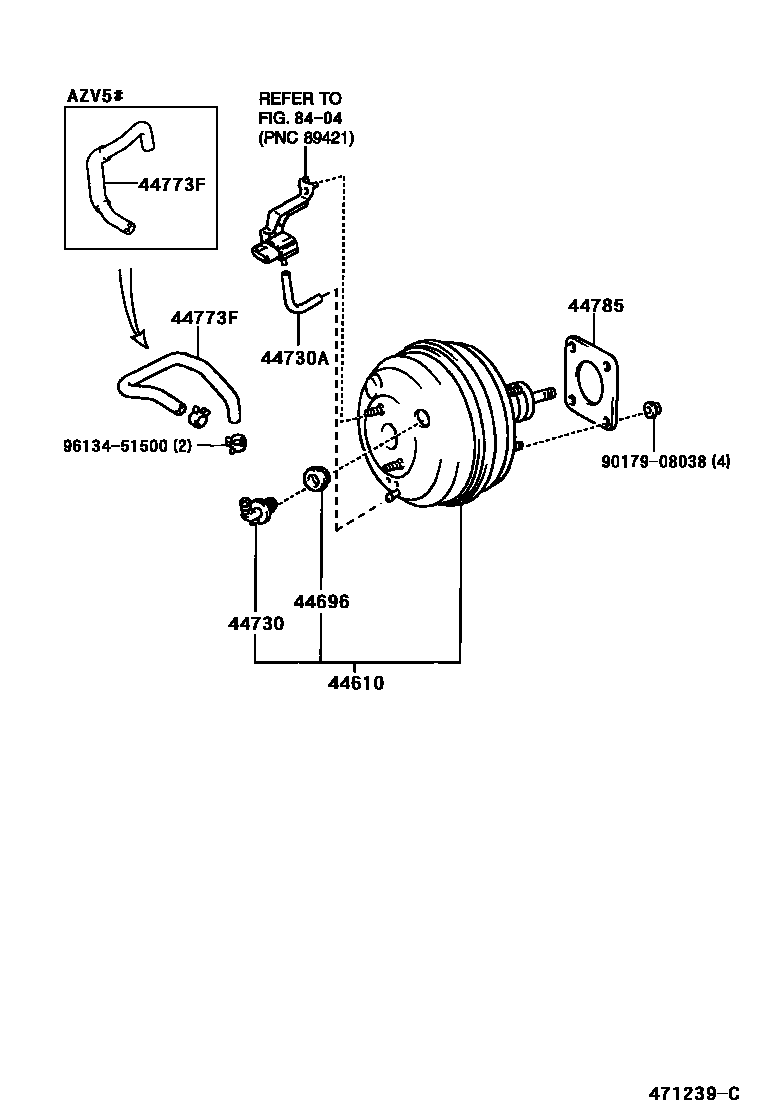

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-32610iSV55,ZZV50..SED199806

main44610-32620iSV50199806-200108

main44610-32630iSV55,ZZV50..WG199806

main44610-32640iAZV5#200108

44696GROMMET, CHECK VALVE

main90480-24439iAZV5#,SV5#,ZZV50199806

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iSV50199806-200108

main44730-20080iSV55,ZZV50199806

main44730-30040iAZV5#200108

44730AHOSE, VACUUM, NO.1

main90999-92002iAZV5#,SV50199806

44773FHOSE, UNION TO CHECK VALVE

main44773-32210iSV50199806-200108

main44773-32220iSV55199806-200204

main44773-32230iAZV5#200108

44785GASKET, BRAKE BOOSTER

main44785-32010iAZV5#,SV5#,ZZV50199806

8404

9017908038

main90179-08038

9613451500

main96134-51500

9 parts on this diagram · 3 diagrams in section
