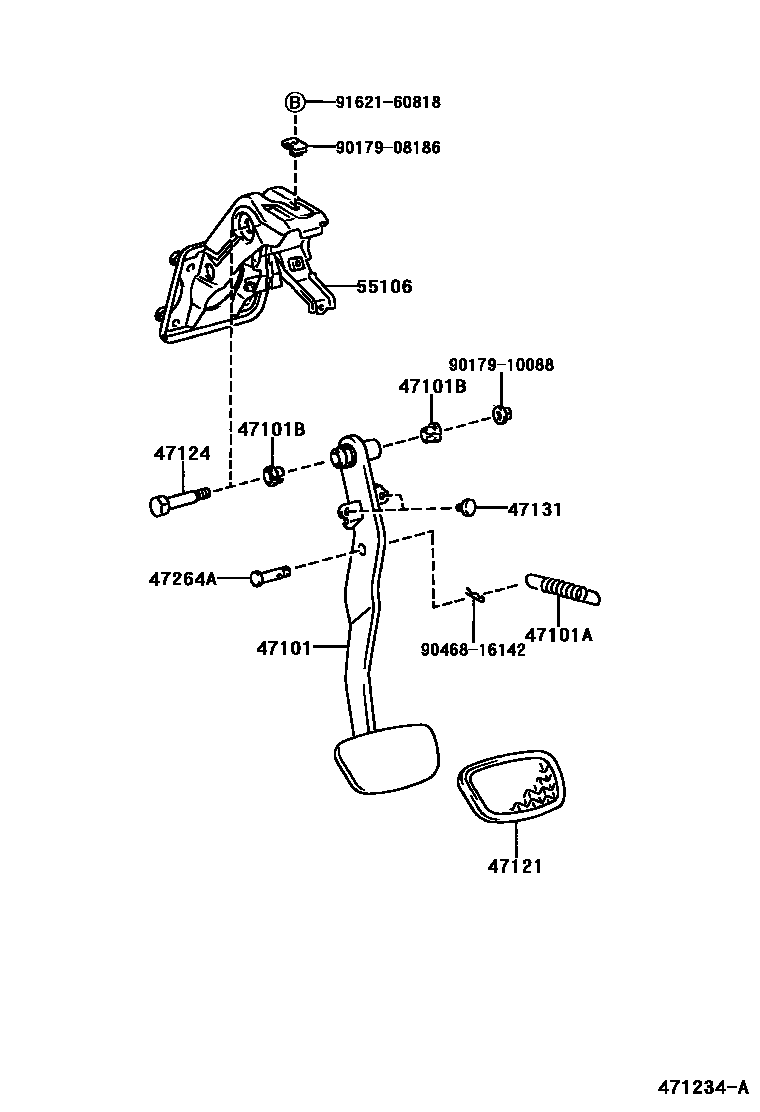

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32190iAZV5#,SV5#,ZZV50199806

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06053iAZV5#,SV5#,ZZV50199806

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAZV5#,SV5#,ZZV50199806

47121PAD, BRAKE PEDAL

main47121-50010iAZV5#,SV5#,ZZV50199806

47124SHAFT, BRAKE PEDAL

main90109-10167iAZV5#,SV5#,ZZV50199806

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049×2iAZV5#,SV5#,ZZV50199806

47264APIN(FOR PUSH ROD)

main90249-08051iAZV5#,SV5#,ZZV50199806

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-32080iAZV5#,SV5#,ZZV50199806

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

9162160818

main91621-60818

12 parts on this diagram · 1 diagram in section
