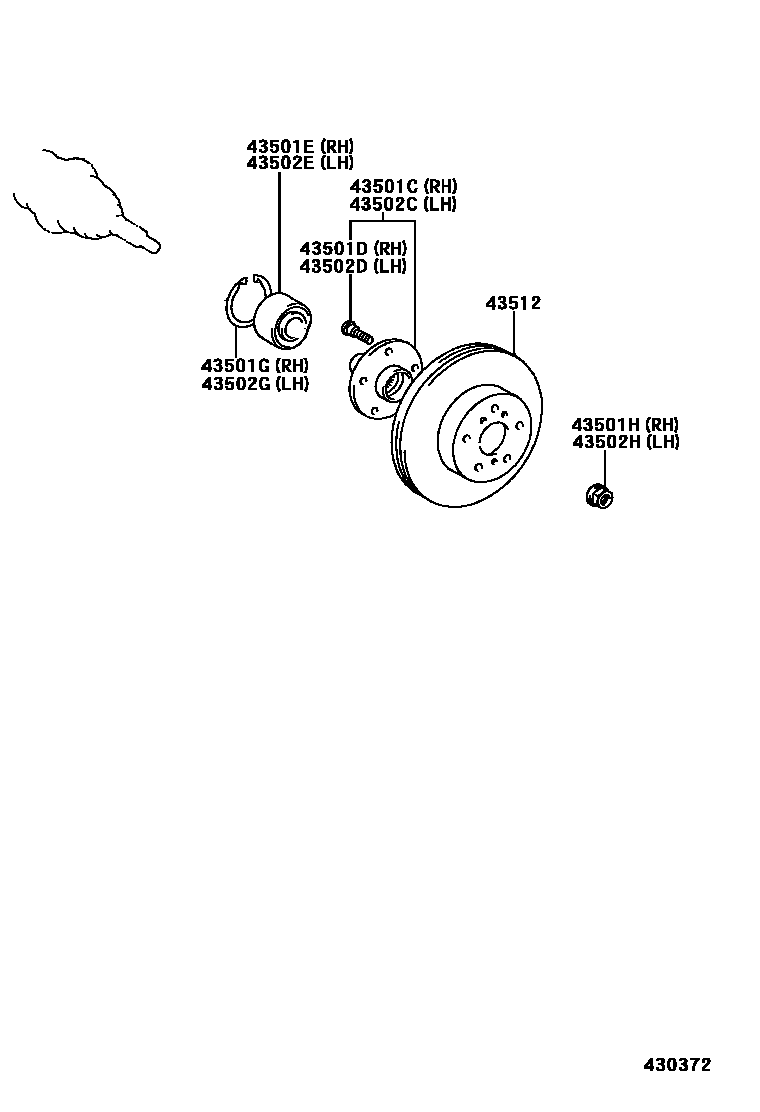

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080iAZV5#,SV5#,ZZV50199806

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAZV5#,SV5#,ZZV50199806

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iAZV5#,SV5#,ZZV50199806

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iAZV5#,SV5#,ZZV50199806

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZV5#,SV5#,ZZV50199806

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080iAZV5#,SV5#,ZZV50199806

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAZV5#,SV5#,ZZV50199806

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iAZV5#,SV5#,ZZV50199806

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iAZV5#,SV5#,ZZV50199806

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZV5#,SV5#,ZZV50199806

43512DISC, FRONT

main43512-32290×2iZZV50199806

sub43512-32301

main43512-32300×2iZZV50199806

sub43512-32301

main43512-32311×2iAZV5#,SV5#199806

11 parts on this diagram · 1 diagram in section
