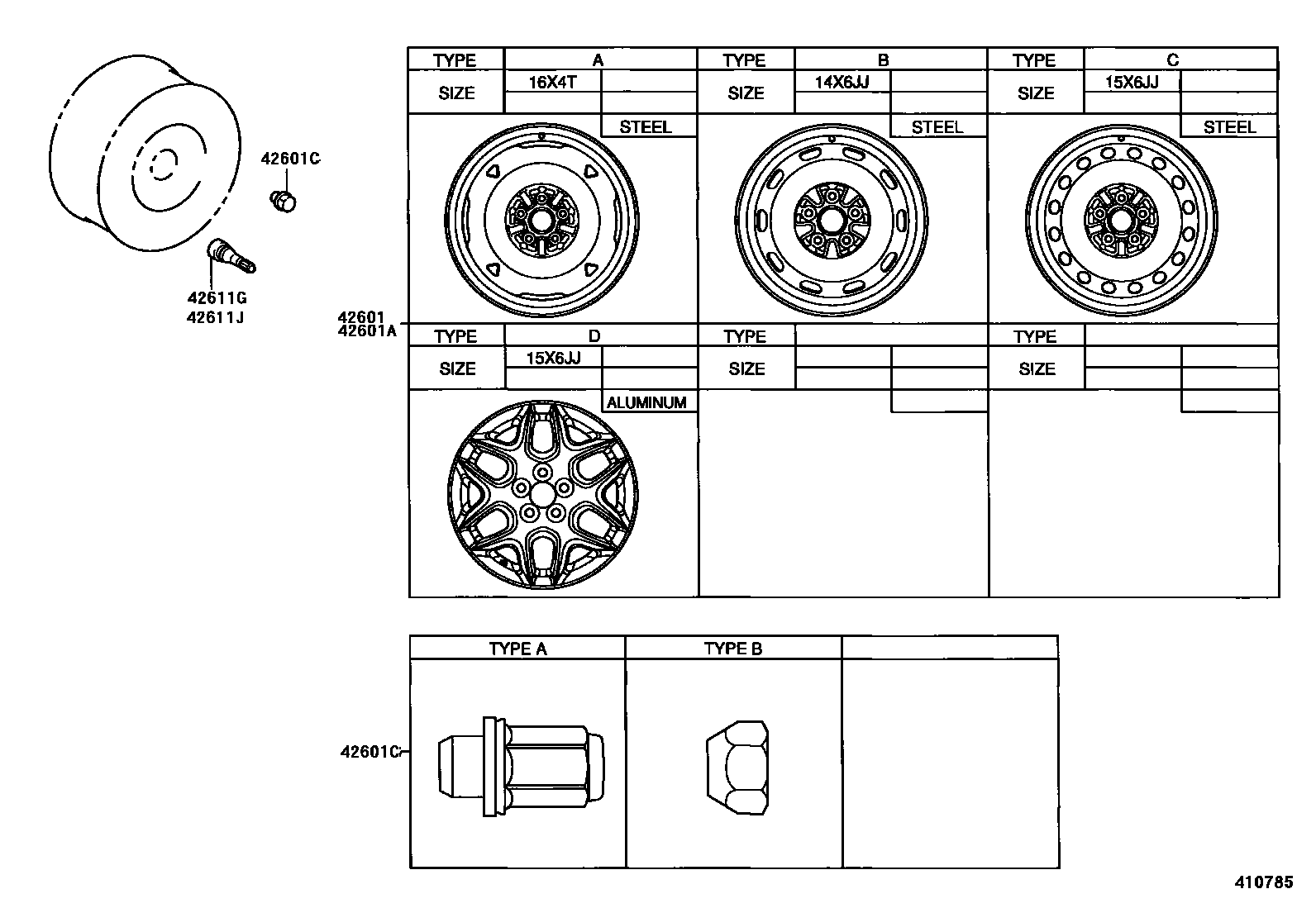

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-20660-01×4iZZV50..A180E,N180E200004

main42611-32330×4iAZV50,SV5#,ZZV50..A180,A180S,A200,A200E,A200S,N180,N180L,N200,N200E,N200L199806-200112

sub42611-32331

main42611-32340×4iAZV5#,SV5#,ZZV50199806

main42611-32350×4iSV5#,ZZV50..A180S,A200S200004-200012

42601AWHEEL, DISC (FOR SPARE)

main42611-20660-01iZZV50..A180E,N180E200004

main42611-20840iZZV50..N180199912-200004

sub42611-20841

main42611-32330iZZV50..N180199912-200004

sub42611-32331

main42611-32340iAZV5#,SV5#,ZZV50199806

main42611-32350iSV5#,ZZV50..A180S,A200S200004-200012

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L199806

main90942-01058×20iAZV5#,SV5#,ZZV50199806

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAZV5#,SV5#,ZZV50199806

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAZV5#,SV5#,ZZV50199806

5 parts on this diagram · 4 diagrams in section
