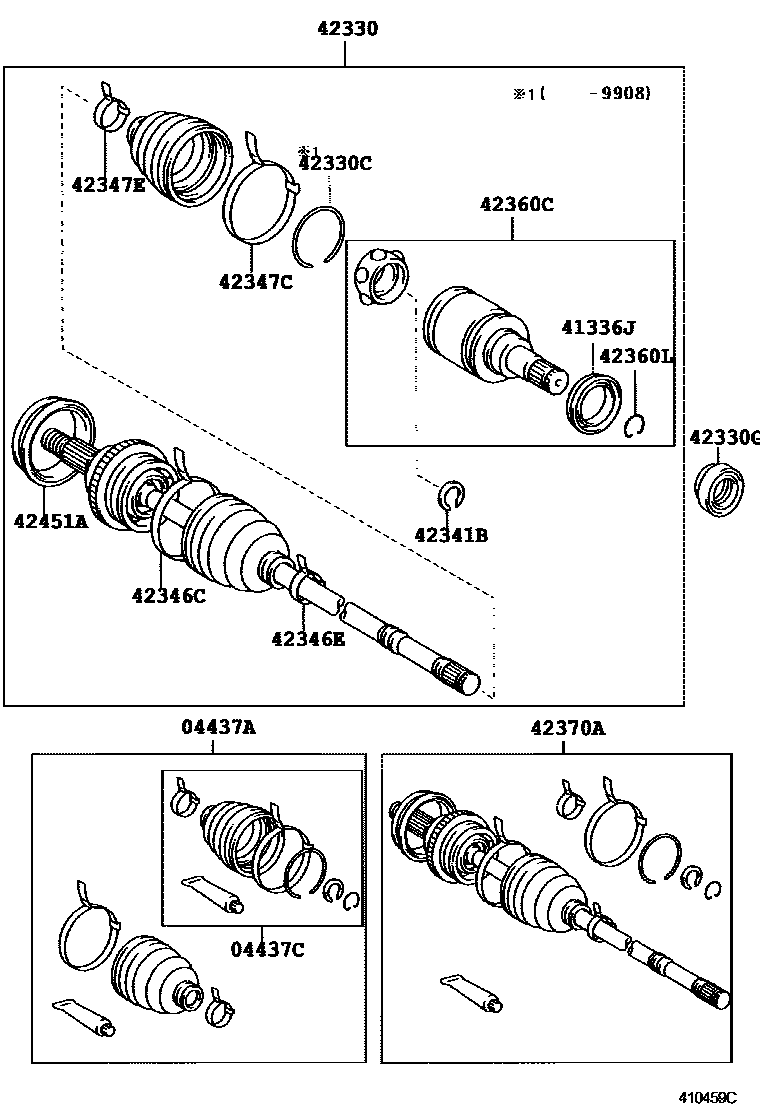

REAR AXLE SHAFT & HUB

0001 1��� 0002 1 0003 1��� 0004 1

04437ABOOT KIT, REAR DRIVE SHAFT, RH

main04437-21021iSV55199806-200004

main04437-21022iAZV55,SV55200004

sub04429-12020

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04437-21011iSV55199806-200004

main04437-21012iAZV55,SV55200004

sub04439-12010

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-33010iAZV55,SV55199806

42330SHAFT ASSY, REAR DRIVE, RH

main42340-32110iAZV55,SV55199806

sub42340-32111

42330CRING, HOLE SNAP(FOR REAR DRIVE SHAFT)

main90521-64001iSV55199806-199908

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-42033iAZV55,SV55199806

sub90311-42046

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main90520-21020iAZV55,SV55199806

sub43425-48040

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12120iSV55199806-200008

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12130iAZV55,SV55200008

main42345-33020iSV55199806-200008

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12120iAZV55,SV55200008

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12130iAZV55,SV55200008

main42345-33020iSV55199806-200008

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-33010iAZV55,SV55199806

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-26004iAZV55,SV55199806

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-39155iSV55199806-200004

main42370-39157iAZV55,SV55200004

sub42370-19155

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-32020iAZV55,SV55199806

15 parts on this diagram · 4 diagrams in section
