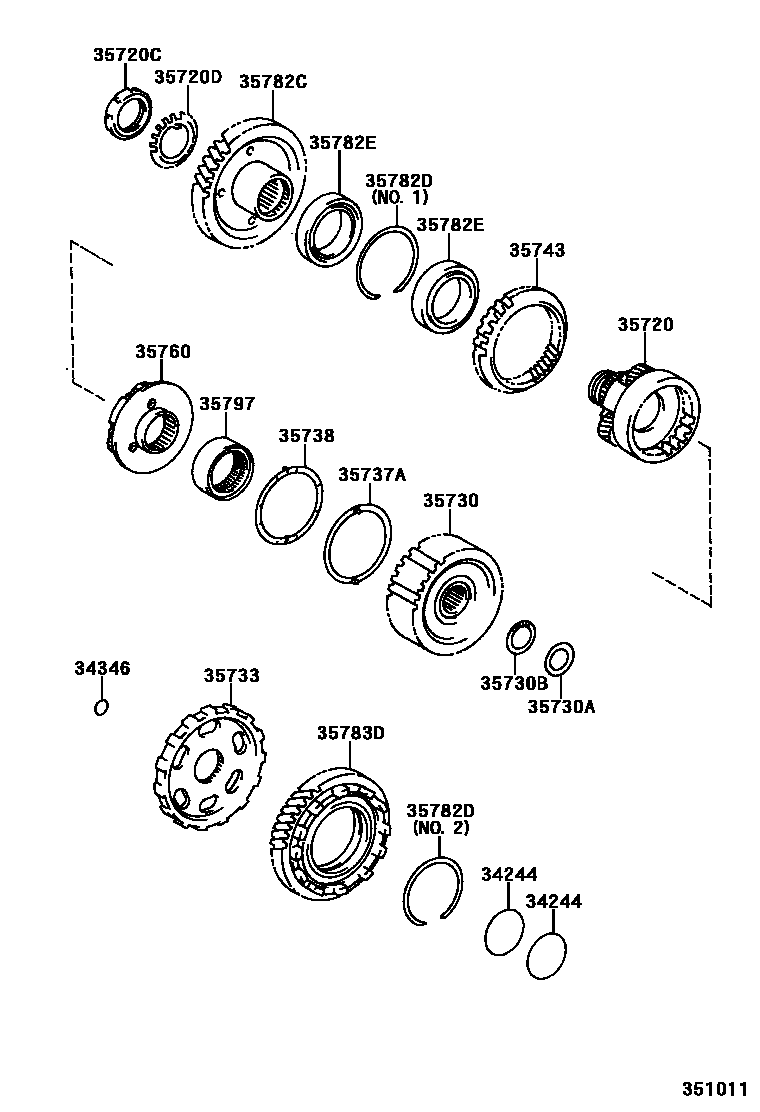

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U240E,U240F 0003 1U341E 0004 1A247E 0005 1A248F

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iSV5#,ZZV50199806-200204

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iSV5#,ZZV50199806-200204

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iAZV5#200108-200307

main35720-21010iSV5#199806-200204

sub35720-44010

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iSV5#199806-200204

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iSV5#,ZZV50199806-200204

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iSV5#,ZZV50199806-200204

sub35730-28020

main35730-52020iZZV50200004-200307

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iSV5#,ZZV50199806-200204

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iSV5#,ZZV50199806-200204

main90374-43003iZZV50200004-200307

35733GEAR, PARKING LOCK

main35733-32030iSV50,ZZV50199806-200108

main35733-32040iSV55199806-200204

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iSV5#,ZZV50199806-200204

main35737-52020iZZV50200004-200307

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iSV5#,ZZV50199806-200204

main35738-32010iAZV5#200108-200307

35743GEAR, FRONT PLANETARY RING

main35743-21010iSV5#,ZZV50199806-200204

sub35743-28010

main35743-32040iAZV5#200108-200307

35760GEAR ASSY, REAR PLANETARY

main35760-21020iSV5#199806-200204

sub35760-33030

main35760-32010iAZV50200108-200204

main35760-32030iAZV5#200204-200307

main35760-52010iZZV50200004-200307

sub35760-52011

35782CGEAR, COUNTER DRIVE

main35782-32030iSV5#,ZZV50199806-200104

main35782-32031iSV5#200104-200204

sub35782-28020

main35782-52020iZZV50200004-200307

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-83001iZZV50200004-200307

main90520-84001iSV5#199806-200204

main90520-89002iSV5#199806-200204

sub90520-89004

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90363-40070iAZV5#200204-200307

main90363-52005iZZV50200210-200307

main90366-52007iZZV50200004-200210

sub90363-52005

main90366-60009iSV5#199806-200204

main90369-40006iAZV50200108-200204

35783DGEAR, COUNTER DRIVEN

main35783-32030iSV5#,ZZV50199806-200104

main35783-32031iSV5#200104-200204

sub35783-33040

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iSV5#,ZZV50199806-200204

18 parts on this diagram · 4 diagrams in section
