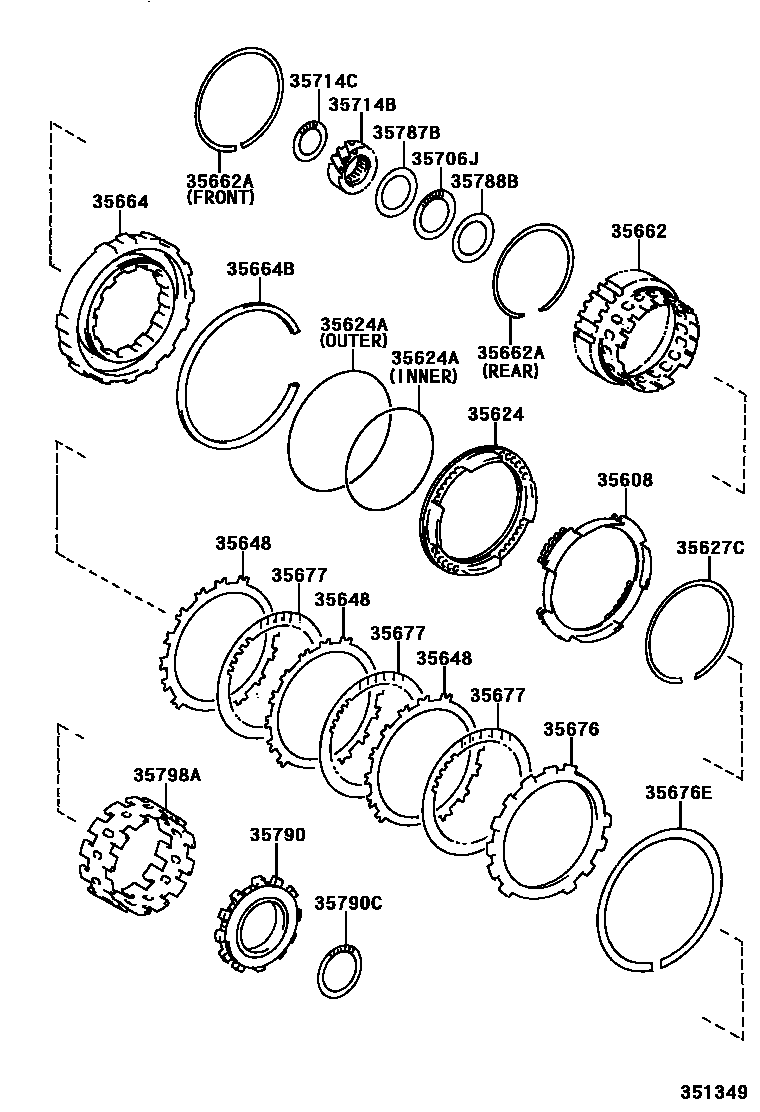

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35624ARING, O (FOR 2ND BRAKE PISTON)
35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
35662HUB, BRAKE
sub35662-06010
35662ARING, SNAP (FOR BRAKE HUB)
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35714BGEAR, INPUT SUN
sub35714-28010
35714CBEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
35787BRACE, THRUST BEARING, NO.2
35788BRACE, THRUST BEARING, NO.3
35790CLUTCH ASSY, 1 WAY
35790CBEARING, THRUST NEEDLE ROLLER
sub90374-53006
35798ASLEEVE, 1WAY CLUTCH, OUTER
sub35798-28010
20 parts on this diagram · 3 diagrams in section
