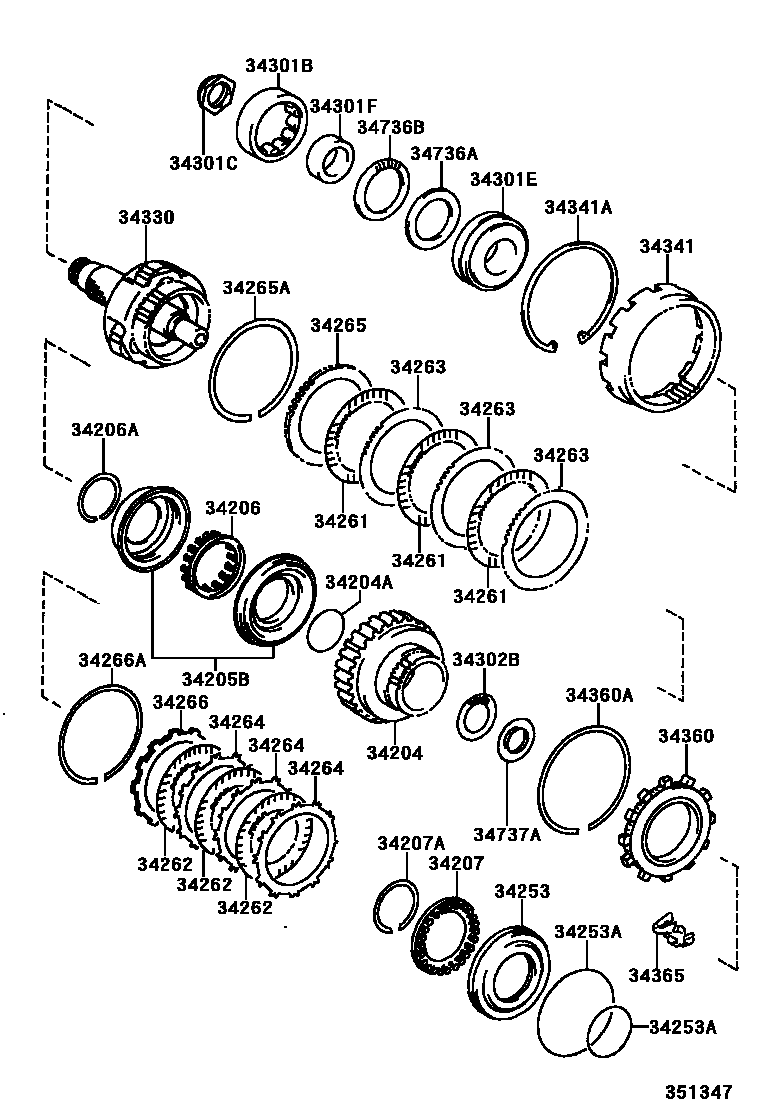

OVERDRIVE GEAR (ATM)
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
34205PISTON SUB-ASSY, UNDERDRIVE CLUTCH
34205BPISTON SET, UNDERDRIVE CLUTCH
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
34253PISTON, UNDERDRIVE BRAKE
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
34262DISC, UNDERDRIVE CLUTCH, NO.2
34263PLATE, UNDERDRIVE CLUTCH, NO.1
34264PLATE, UNDERDRIVE CLUTCH, NO.2
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
34301SHAFT SUB-ASSY, UNDERDRIVE INPUT
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
34301FRACE, CYLINDRICAL ROLLER BEARING, INNER
34302GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
34736BBEARING, THRUST NEEDLE ROLLER
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
34 parts on this diagram · 2 diagrams in section
