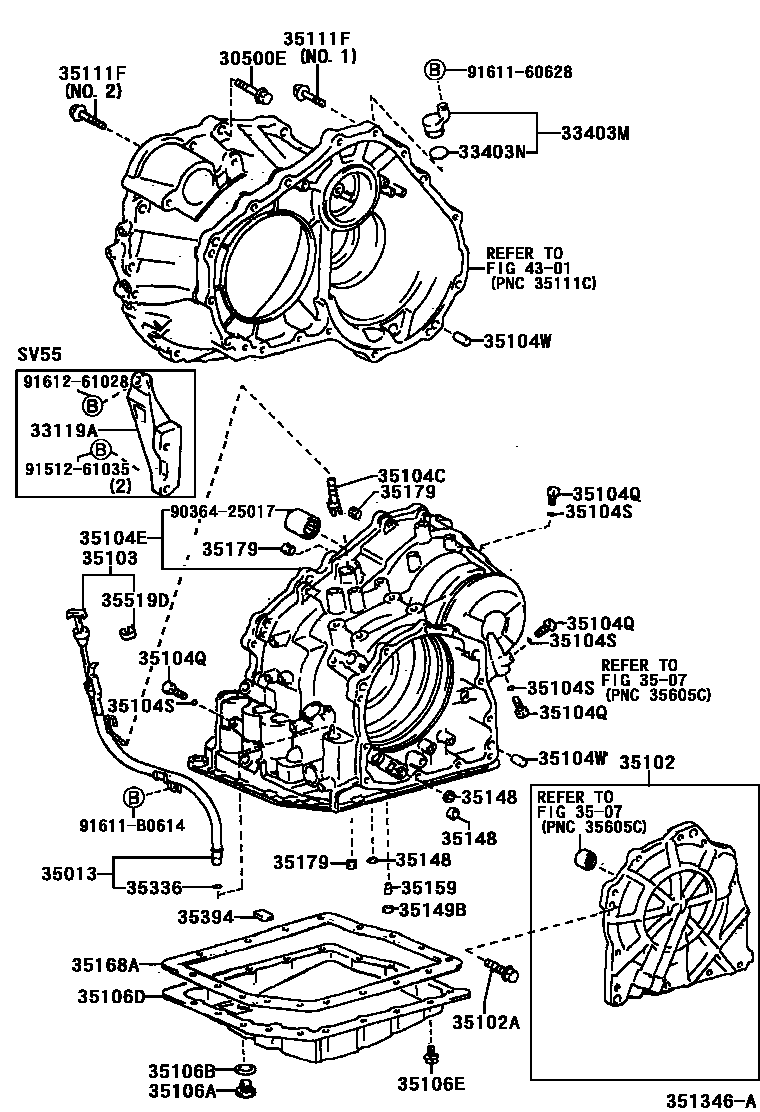

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U240E,U240F 0003 1U341E 0004 1A247E,A248F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSV55199806-200204

sub91641-H0820

main90105-10077iSV5#199806-200204

main90119-12168iAZV5#200108

main91512-61050iAZV5#200108

main91512-61065iAZV5#200108

main91619-61245iSV5#199806-200204

main91619-61255iZZV50199806

main91642-81055iZZV50199806

main91651-41022iSV5#199806-200204

33119APLATE, STIFFENER, LH(ATM)

main33119-32020iSV55199806-200204

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iAZV5#,SV5#,ZZV50199806

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iAZV5#,SV5#,ZZV50199806

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-32200iSV5#,ZZV50199806-200204

main35013-32210iZZV50200004

main35013-32220iAZV5#200108

3507

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-32010iSV5#,ZZV50199806-200204

main35102-52020iZZV50200004-200307

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iAZV5#200108-200307

main90105-08071iSV5#199806-200204

main90105-08365iZZV50200004-200307

main91511-80625iAZV5#200108-200307

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-21080iAZV55200204

main35103-32170iSV50199806-200108

main35103-32180iSV55199806-200204

main35103-32190iZZV50200004

main35103-32200iAZV50200108

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03001iSV5#,ZZV50199806-200204

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20130iZZV50200004-200307

sub35104-20131

sub35165-52030

main35104-32080iSV5#199806-200204

main35104-44020iAZV5#200108-200307

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iSV5#,ZZV50199806-200307

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iSV5#199806-200307

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iZZV50199806-200307

main90250-10021iAZV5#200108-200307

main90250-10036iSV5#200009-200204

sub90250-10232

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iAZV5#200108-200307

main90341-18016iSV5#,ZZV50199806-200307

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAZV5#200108-200307

main90430-18008iSV5#,ZZV50199806-200307

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12100iAZV5#200108-200307

main35106-21020iSV5#199806-200102

sub35106-33030

sub35330-06010

main35106-33030iSV5#200102-200204

main35106-52020iZZV50200004-200307

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iAZV5#,SV5#199806-200307

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08068iAZV55200108-200307

sub90105-08333

main90105-08071iAZV50,ZZV50200004-200307

main90105-08233iSV5#..A200E,A200G,A200S,N200E,N200G,N200L200004-200204

main90105-08233iSV5#..A200,N200199806-200204

main90105-08288iAZV5#200108-200307

main90105-08353iSV5#..A200E,A200G,A200S,N200E,N200G,N200L200004-200204

main90105-08353iSV5#,ZZV50199806-200204

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iSV5#,ZZV50199806-200204

main35148-16010iAZV5#200108-200307

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iSV5#,ZZV50199806-200307

35159GASKET, BRAKE DRUM

main35159-20010iAZV5#200108-200307

main35159-21010iSV5#,ZZV50199806-200307

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12060iAZV5#200108-200307

main35168-21010iSV5#,ZZV50199806-200204

sub35168-21011

main35168-52020iZZV50200004-200307

35179GASKET, OVERDRIVE BRAKE

main35179-32010iSV5#,ZZV50199806-200307

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAZV5#,SV5#,ZZV50199806

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iSV5#199806-200307

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iAZV50,ZZV50200004

main35519-21020iSV55199806-200204

main35519-30010iSV50,ZZV50199806-200108

main35519-52010iAZV55200204

4301

9036425017

main90364-25017

9151261035

main91512-61035

9161160628

main91611-60628

91611B0614

main91611-B0614

9161261028

main91612-61028

33 parts on this diagram · 3 diagrams in section
