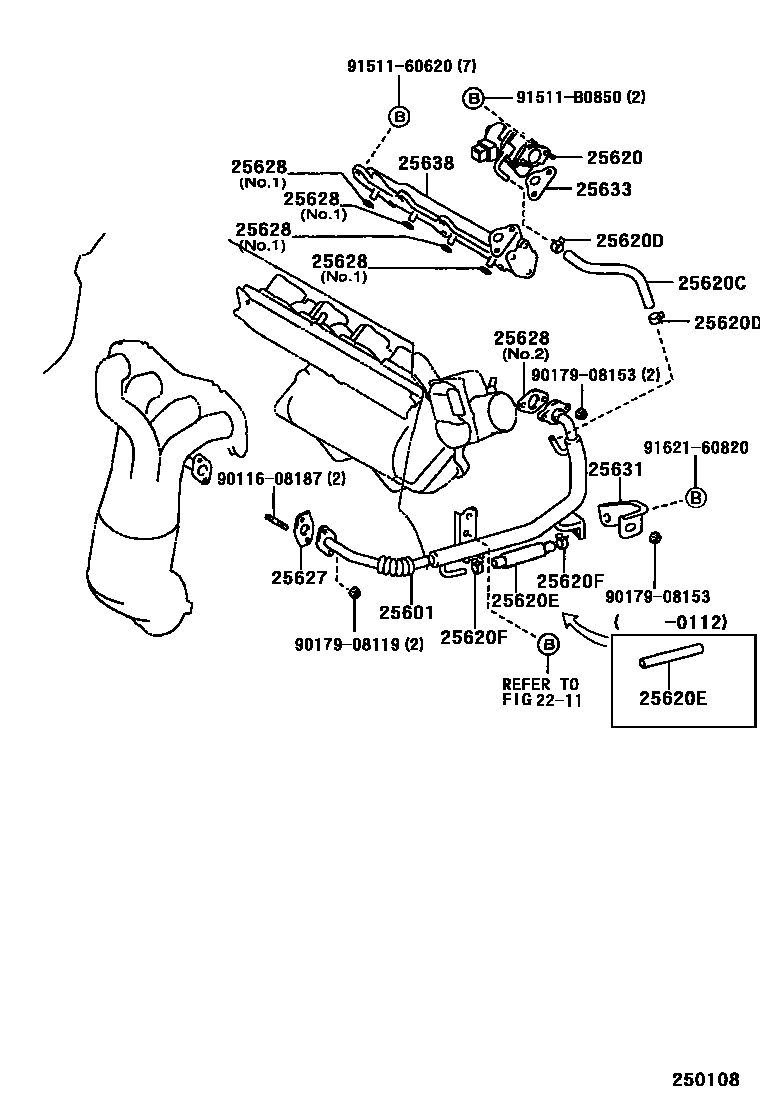

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

2211

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i1AZFSE..AZV5#200108

sub25611-28011

main25611-74080i3SFSE..SV50199806-200108

25620VALVE ASSY, EGR

main25620-28090i1AZFSE..AZV5#200108

sub25620-28091

main25620-74340i3SFSE..SV50199806-200108

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i1AZFSE..AZV5#200108

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300×2i1AZFSE..AZV5#200108

sub96135-51300

25620EHOSE, WATER BY-PASS NO.2

main16264-28070i1AZFSE..AZV5#200112

main99555-10200i1AZFSE..AZV50200108-200112

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-41300×2i1AZFSE..AZV5#200108

sub96135-51300

25627GASKET, EGR VALVE

main25627-74080i1AZFSE..AZV5#200108

main25627-74090i3SFSE..SV50199806-200108

25628GASKET, EGR INLET

main25628-28010×4i1AZFSE..AZV5#200108

main25628-28030i1AZFSE..AZV5#200108

25631STAY, EGR PIPE, NO.1

main25631-28010i1AZFSE..AZV5#200108

25633GASKET, EGR VALVE

main25633-28010i1AZFSE..AZV5#200108

25638CHAMBER, EGR DELIVERY

main25638-28010i1AZFSE..AZV5#200108

sub25638-28011

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

9151160620

main91511-60620

91511B0850

main91511-B0850

9162160820

main91621-60820
