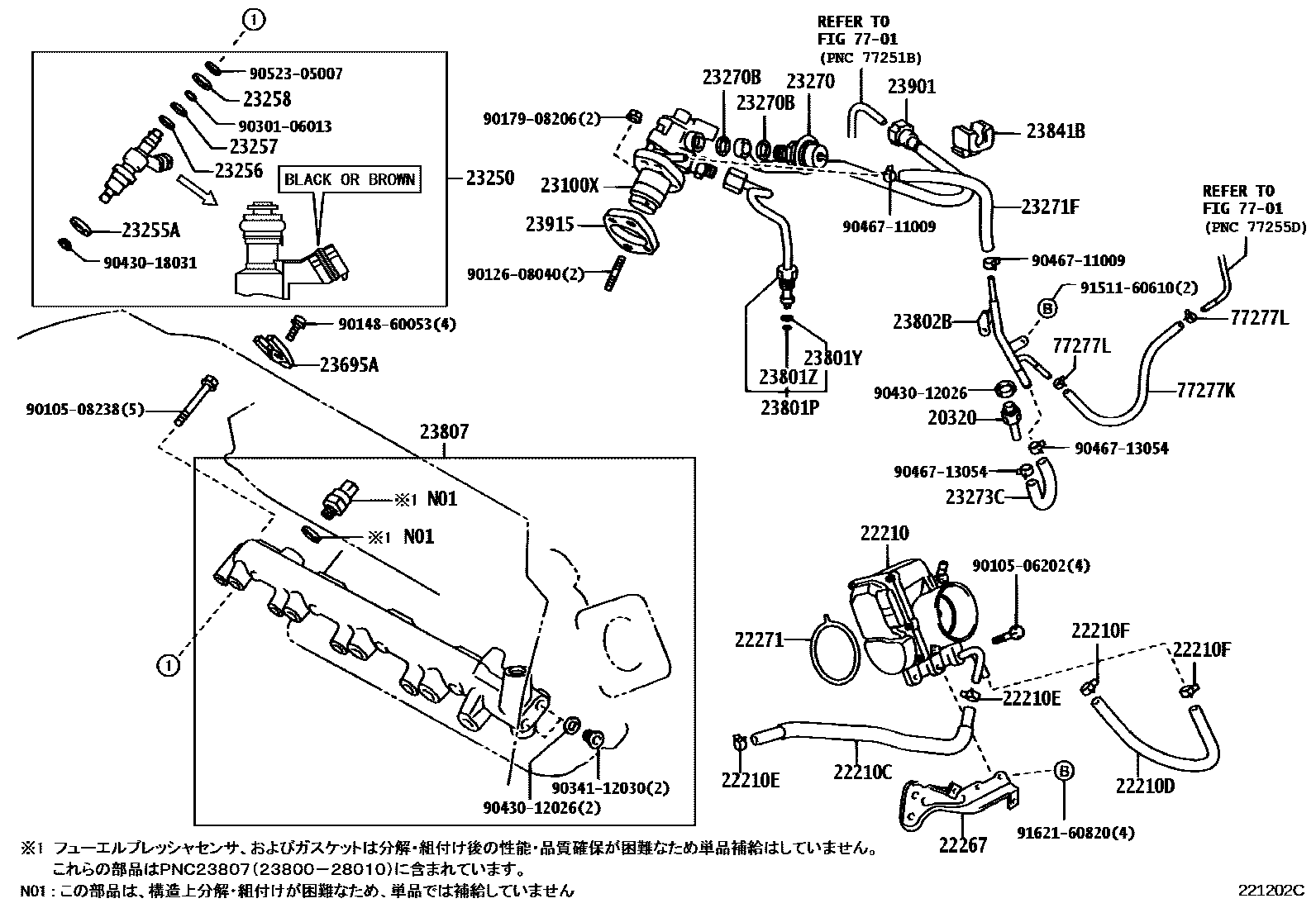

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

20320VALVE ASSY, FUEL RELIEF

main20320-28010i1AZFSE..AZV5#200108-200304

sub20320-28011

main20320-28011i1AZFSE..AZV5#200304

main20320-74010i3SFSE..SV50199806-199811

sub20320-74011

sub23803-74060

sub90447-12122

main20320-74011i3SFSE..SV50199811-200108

22210BODY ASSY, THROTTLE

main22030-28010i1AZFSE..AZV50200108-200111

sub22030-28011

main22030-28011i1AZFSE..AZV5#200111

main22210-22030i1ZZFE..ZZV50199806-200004

main22210-22080i1ZZFE..ZZV50200004-200106

sub22210-22170

main22210-22130i1ZZFE..ZZV50200106-200308

main22210-7A760i3SFE..SV55199806

22210CHOSE, WATER BY-PASS, NO.1

main16261-28030i1AZFSE..AZV5#200108

main16264-74140i3SFSE..SV50199806-200108

main16283-74050i3SFE..SV55199806

22210DHOSE, WATER BY-PASS, NO.2

main16267-74110i3SFSE..SV50199806-200108

main16282-74100i3SFE..SV55199806

main99555-10300i1AZFSE..AZV5#200108

sub99555-10500

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13050i3SFE..SV55199806-200204

sub96135-51300

main90467-15022i3SFSE..SV50199806-200108

main96135-41300i1AZFSE..AZV5#200108

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13050i3SFE..SV55199806-200204

sub96135-51300

main90467-15022i3SFSE..SV50199806-200108

main96135-41300i1AZFSE..AZV5#200108

sub96135-51300

22267BRACKET, THROTTLE BODY

main22267-22030i1ZZFE..ZZV50200004-200308

main22267-28010i1AZFSE..AZV5#200108

22271GASKET, THROTTLE BODY

main22271-22020i1ZZFE..ZZV50199806-200004

main22271-22040i1ZZFE..ZZV50200004-200308

main22271-28030i1AZFSE..AZV5#200108

main22271-74070i3SFE..SV55199806-200204

main22271-74080i3SFSE..SV50199806-200108

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-28040i1AZFSE..AZV5#200108-200304

sub23100-28041

main23100-28041i1AZFSE..AZV5#200304-200307

sub23100-28042

main23100-74040i3SFSE..SV50199806-199809

sub23100-74041

main23100-74041i3SFSE..SV50199809-200108

23250INJECTOR ASSY, FUEL

main23209-22020i1ZZFE..ZZV50199806-200004

main23209-22040i1ZZFE..ZZV50200004-200308

main23209-29025i1AZFSE..AZV5#200108

sub23209-29026

main23209-74170i3SFE..SV55199806

main23209-79125i3SFSE..SV50199806-200108

23255ASEAL, FUEL INJECTOR

main23255-28010i1AZFSE..AZV5#200108

main23255-46011i3SFSE..SV50200010-200108

main23255-74020i3SFSE..SV50199806-200010

sub23255-46011

main23255-74030i3SFSE..SV50199806-200108

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1AZFSE..AZV5#200205

main23256-74010i3SFSE..SV50199806-200205

main23256-74010i1AZFSE..AZV5#200205

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i3SFSE..SV50199806-200205

main23257-74010i1AZFSE..AZV5#200205

main23257-74010i1AZFSE..AZV5#200205

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010i1AZFSE..AZV5#200205

sub23258-28011

main23258-28010i1AZFSE..AZV5#200108-200205

sub23258-28011

main23258-74010i1AZFSE..AZV5#200205

main23258-74010i3SFSE..SV50199806-200108

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i3SFE..SV55199806

sub23207-20011

main23270-28040i1AZFSE..AZV5#200108

sub23270-31050

main23270-74030i3SFSE..SV50199806-200108

sub23270-74031

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010i3SF#..SV5#199806

23271FHOSE, FUEL

main23271-28050i1AZFSE..AZV5#200108

sub23271-28051

main23271-74700i3SFSE..SV50199806-200108

main23271-74710i3SFE..SV55199806

23273CHOSE, FUEL, NO.2

main23273-28010i1AZFSE..AZV5#200108

main23273-74020i3SFSE..SV50199806-199809

sub23273-74021

main23273-74021i3SFSE..SV50199809-199811

main23273-74022i3SFSE..SV50199811-200108

23695ACLAMP, NOZZLE HOLDER

main23695-28010i1AZFSE..AZV5#200108

main23695-74010i3SFSE..SV50199806-200108

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-28041i1AZFSE..AZV5#200108-200205

sub23801-28070

main23801-28043i1AZFSE..AZV5#200205

sub23801-28050

main23801-74100i3SFSE..SV50199806-200108

23801YGASKET

main90430-07006i1AZFSE..AZV5#200108-200205

23801ZRING, SNAP(FOR FUEL PIPE)

main90520-05003i1AZFSE..AZV5#200108-200205

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-28020i1AZFSE..AZV5#200108

main23802-74120i3SFSE..SV50199806-200108

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22020i1ZZFE..ZZV50199806-200004

sub23807-22080

main23807-22030i1ZZFE..ZZV50200004-200308

sub23807-22061

main23807-28021i1AZFSE..AZV5#200108-200205

sub23807-28023

sub23801-28043

sub91621-J0614

main23807-28023i1AZFSE..AZV5#200205

sub23807-28024

main23814-74110i3SFE..SV55199806

sub23814-74080

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21020i1AZFSE..AZV5#200004-200307

main23841-22030i1ZZFE..ZZV50199806-200004

main23841-74020i3SFE..SV55199806-200204

23901TUBE SUB-ASSY, FUEL

main23901-22020i1ZZFE..ZZV50199806-200004

main23901-22120i1ZZFE..ZZV50200004-200307

main23901-28040i1AZFSE..AZV5#200108

sub23901-28041

main23901-74020i3SFSE..SV50199806-200108

23915INSULATOR, FUEL PUMP

main23915-46011i1AZFSE..AZV5#200108-200307

main23915-74010i3SFSE..SV50199806-200108

7701

77277KHOSE, FUEL(FOR RETURN HOSE)

main23274-28010iAZV50200108

main23274-28020iAZV55200204

77277LCLIP, HOSE(FOR RETURN HOSE)

main90467-11009iAZV5#200108

sub96135-51100

9010506202

main90105-06202

9010508238

main90105-08238

9012608040

main90126-08040

9014860053

main90148-60053

9017908206

main90179-08206

9030106013

main90301-06013

9034112030

main90341-12030

9043012026

main90430-12026

9043018031

main90430-18031

9046711009

main90467-11009

9046713054

main90467-13054

9052305007

main90523-05007

9151160610

main91511-60610

9162160820

main91621-60820
