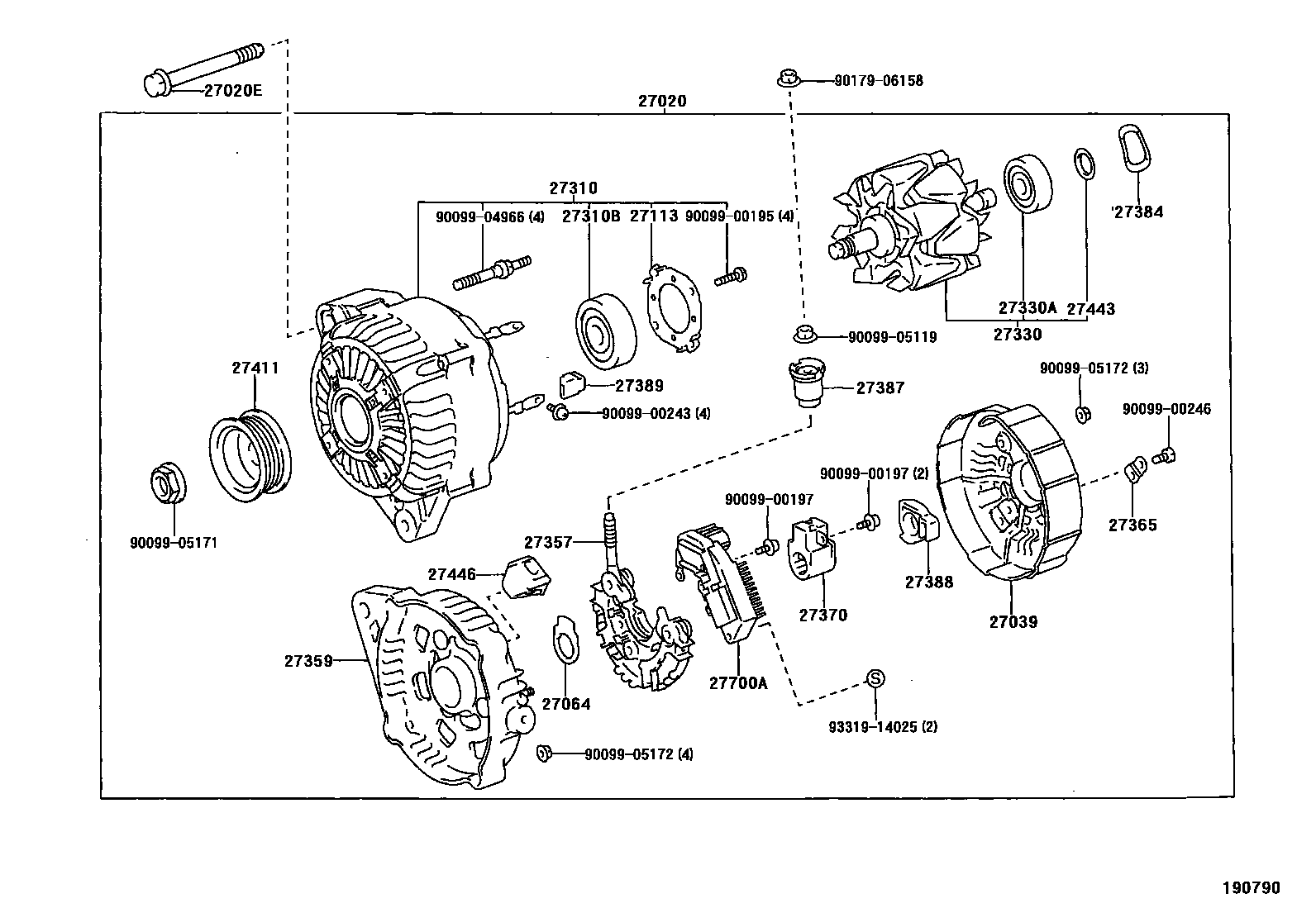

ALTERNATOR

0001 112V 80A,12V 90A 0002 112V 80A 0003 112V 90A

27020ALTERNATOR ASSY

main27060-22010i1ZZFE..ZZV50199806-200004

main27060-22160i1ZZFE..ZZV50200004

main27060-28210i1AZFSE..AZV5#200108

main27060-74840i3SFE..SV55199806-200204

main27060-74850i3SFSE..SV50199806-200108

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZZV50199806-200307

main90105-10249i3SF#..SV5#199806-200204

main91511-60840i1AZFSE..AZV5#200108

sub91511-J0840

main91512-81085i1AZFSE..AZV5#200108

27039COVER, ALTERNATOR REAR END

main27039-21100i1AZFSE..AZV5#200108

main27039-22050i1ZZFE..ZZV50200104

main27039-30020i3SF#..SV5#200104-200204

main27039-46190i1ZZFE..ZZV50200004-200104

main27039-55080i3SFSE..SV50199806-200004

sub27039-70470

main27039-74700i3SFE,1ZZFE..SV55,ZZV50199806-200004

27064SEAL, ALTERNATOR PLATE

main27064-42010i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010×4i1ZZFE..ZZV50199806-200004

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-22040i1ZZFE..ZZV50199806-200004

main27310-22060i1ZZFE..ZZV50200004

main27310-28090i1AZFSE..AZV5#200108

main27310-74490i3SFE..SV55200004-200204

sub27310-70440

main27310-74570i3SFSE..SV50200004-200108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i3SF#,1ZZFE..SV5#,ZZV50199806-200004

main90099-10219i1ZZFE..ZZV50200004

27330ROTOR ASSY, ALTERNATOR

main27330-72280i3SF#,1ZZFE..SV5#,ZZV50199806-200004

main27330-74550i3SFSE,1ZZFE..SV50,ZZV50200004-200007

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i3SFSE..SV50199806-199910

main27357-22070i1AZFSE..AZV5#200108

main27357-23040i3SFE,1ZZFE..SV55,ZZV50199910

main27357-23050i3SFSE..SV50199910-200108

main27357-55080i3SFE,1ZZFE..SV55,ZZV50199806-199910

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0D010i1ZZFE..ZZV50199806-200004

main27359-22040i1ZZFE..ZZV50200004

main27359-28090i1AZFSE..AZV5#200108

main27359-74550i3SF#..SV5#199806-200204

sub27359-70440

27365PLATE, TERMINAL

main27365-55080i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27384WASHER

main27384-50030i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27387INSULATOR, TERMINAL

main27387-42021i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27388COVER, ALTERNATOR BRUSH

main27388-42010i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27389INSULATOR, TERMINAL

main27389-42010×4i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27411PULLEY, ALTERNATOR

main27411-28090i1AZFSE..AZV5#200108

main27411-42030i3SF#..SV5#199806-200204

main27411-50050i1ZZFE..ZZV50199806

27443COVER, ALTERNATOR BEARING

main27443-63020i1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50199806

27446CLIP, ALTERNATOR CORD

main27446-22040i1ZZFE..ZZV50199806

main27446-28060i1AZFSE..AZV5#200108

main27446-74250i3SF#..SV5#199806-200204

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1ZZFE..ZZV50200004

main27700-21040i1AZFSE..AZV5#200108

main27700-74060i3SF#,1ZZFE..SV5#,ZZV50199806-200004

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

31 parts on this diagram · 3 diagrams in section
