IGNITION COIL & SPARK PLUG / GLOW PLUG

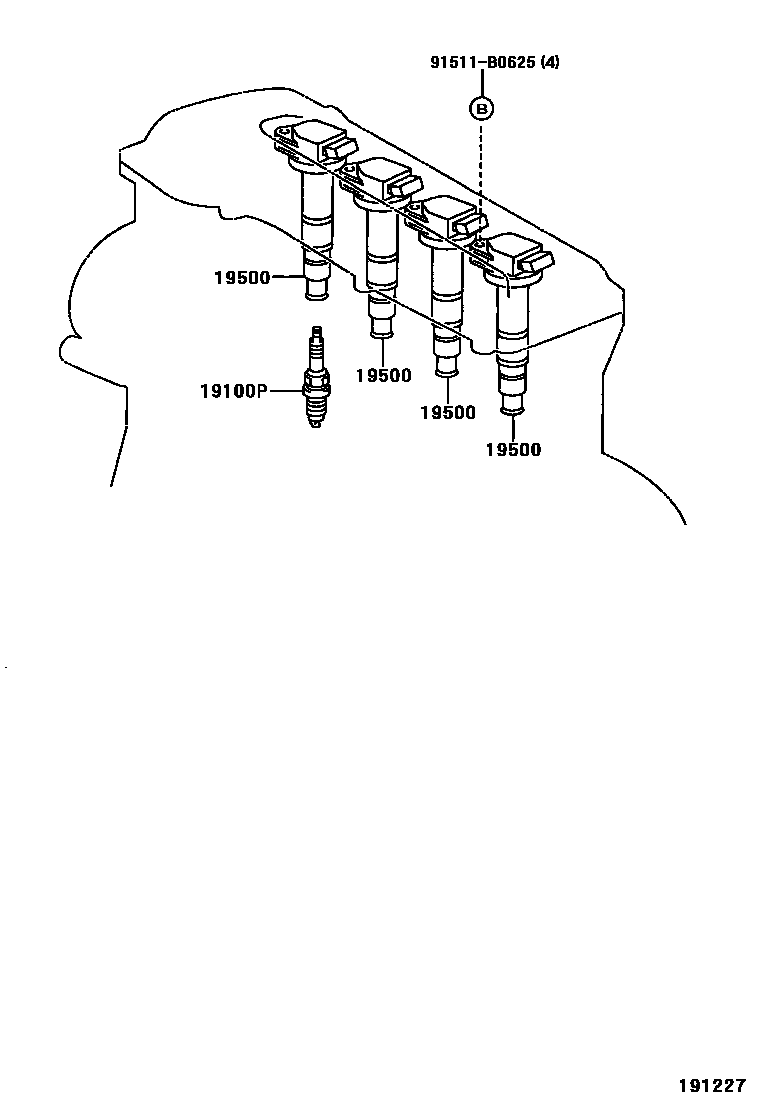

Parts diagram

19100PPLUG, SPARK

main90919-01164×4i200004-200308

main90919-01192×4i199806-200004

main90919-01198×4i199806

main90919-01208×4i199806-200108

main90919-01213×4i199806-200108

main90919-01221×4i200108

19500COIL ASSY, IGNITION

main90919-02224×2i199806-200004

main90919-02235×4i199806-200108

main90919-02239×4i200004-200308

main90919-02247×4i200108-200209

main90919-02248×4i200209

91511B0625

main91511-B0625

3 parts on this diagram · 5 diagrams in section
