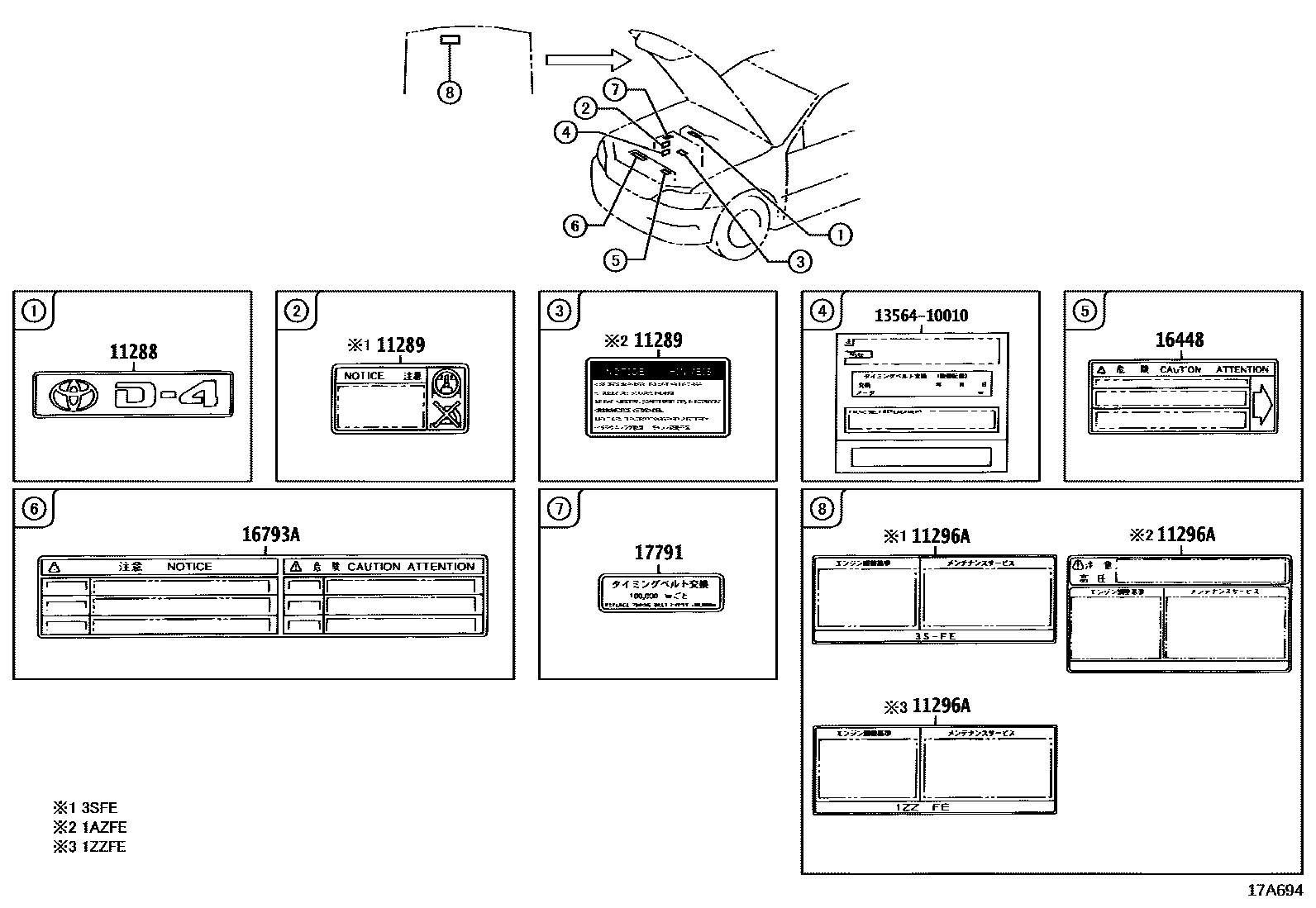

CAUTION PLATE & NAME PLATE (ENGINE)

11288PLATE, ENGINE SYSTEM

main11288-74100i3SFSE..SV50199806-200108

11289PLATE, SPARK PLUG CAUTION

main11289-28010i1AZFSE..AZV5#200108

main11289-62020i3SFE,1ZZFE..SV55,ZZV50199806-200004

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-22010i1ZZFE..ZZV50199806-200205

main11296-22011i1ZZFE..ZZV50200205-200209

main11296-22071i1ZZFE..ZZV50200209-200307

main11296-28020i1AZFSE..AZV5#200108-200205

main11296-28021i1AZFSE..AZV5#200205

main11296-74170i3SFE..SV55199806-200204

main11296-74200i3SFSE..SV50199806-200108

16448PLATE, RADIATOR CAUTION

main16448-22010i3SF#,1ZZFE..SV5#,ZZV50199806-200004

16793ALABEL, COOLING FAN CAUTION

main16793-22010i3SF#,1ZZFE..SV5#,ZZV50199806-200004

17791LABEL, MAINTENANCE INFORMATION

main17791-74040i3SF#..SV5#199806-200204

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

7 parts on this diagram · 1 diagram in section
