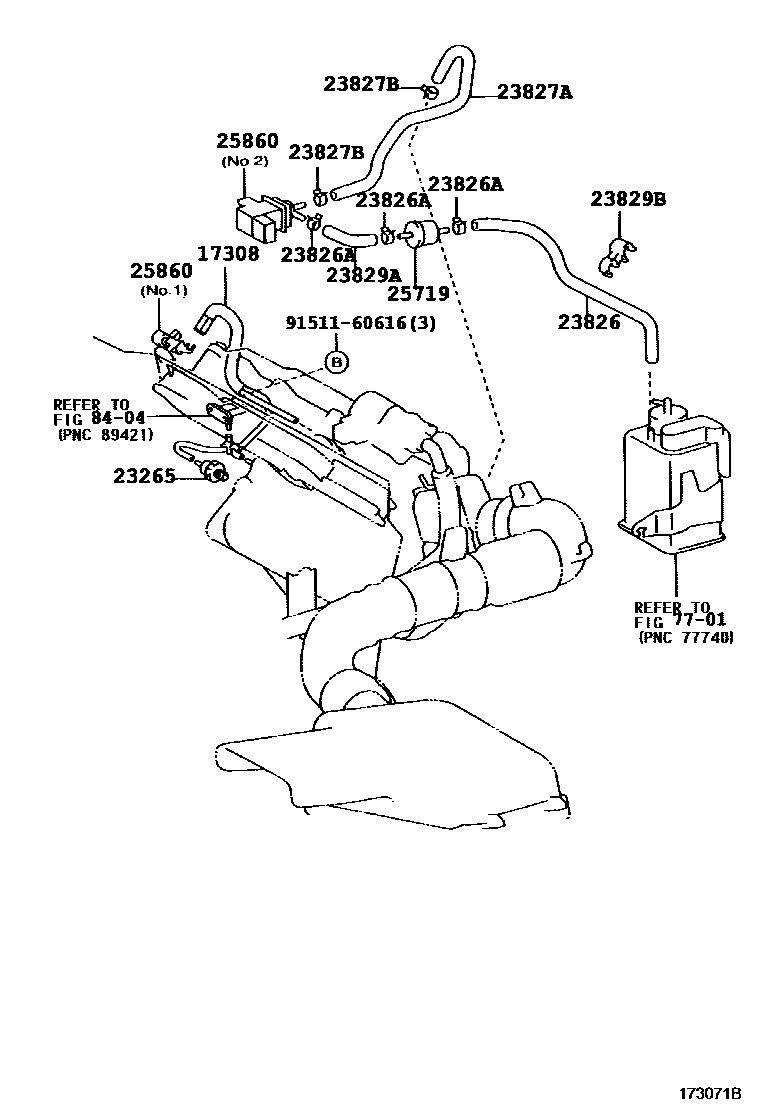

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-28010i1AZFSE..AZV5#200108

23265FILTER, GAS, NO.1

main90917-11037i3SF#..SV5#199806

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-22080i1ZZFE..ZZV50200004

main23826-28170i1AZFSE..AZV5#200108

main23826-74060i3SFSE..SV50199806-200108

sub95328-07032

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41100×2i1ZZFE..ZZV50200004

sub96132-51100

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28070i1AZFSE..AZV5#200108

main95328-07015i3SFSE..SV50199806-200108

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-13069×2i1AZFSE..AZV5#200108

sub96132-51300

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-22050i1ZZFE..ZZV50200004-200111

main23829-22080i1ZZFE..ZZV50200111-200308

23829AHOSE, FUEL VAPOR FEED

main23826-28180i1AZFSE..AZV5#200108

main23829-74080i3SFE..SV55199806-200204

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90464-00725i1AZFSE..AZV5#200108

25719TANK, VACUUM SURGE

main25719-74020i1AZFSE..AZV5#200108

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-22030i1ZZFE..ZZV50199806-200004

main25860-22060i1ZZFE..ZZV50200004

main25860-28020i1AZFSE..AZV5#200108

main25860-74250i3SFSE..SV50199806-200108

7701

8404

9151160616

main91511-60616

14 parts on this diagram · 5 diagrams in section
