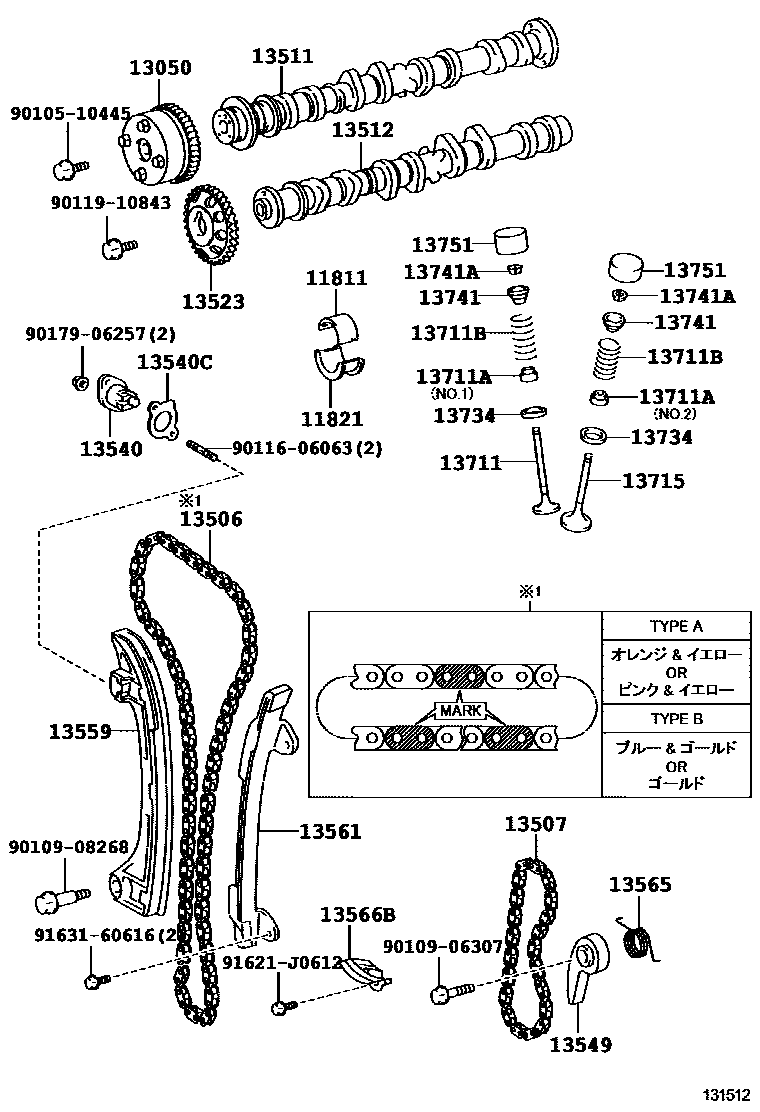

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13507CHAIN SUB-ASSY, NO.2
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
sub13751-21020
sub13751-21030
sub13751-21040
sub13751-21050
sub13751-21060
sub13751-21070
sub13751-21080
sub13751-21090
sub13751-21100
sub13751-21110
sub13751-21120
sub13751-21130
sub13751-21140
sub13751-21150
sub13751-21160
sub13751-21170
sub13751-21180
sub13751-21190
sub13751-21200
sub13751-21210
sub13751-21220
sub13751-21230
sub13751-21240
sub13751-21250
sub13751-21260
sub13751-21270
sub13751-21280
sub13751-21290
sub13751-21300
sub13751-21310
sub13751-21320
sub13751-21330
sub13751-21340
sub13751-21350
sub13751-21360
9010510445
main90105-10445
9010906307
main90109-06307
9010908268
main90109-08268
9011606063
main90116-06063
9011910843
main90119-10843
9017906257
main90179-06257
91621J0612
main91621-J0612
9163160616
main91631-60616
31 parts on this diagram · 4 diagrams in section
