VENTILATION HOSE

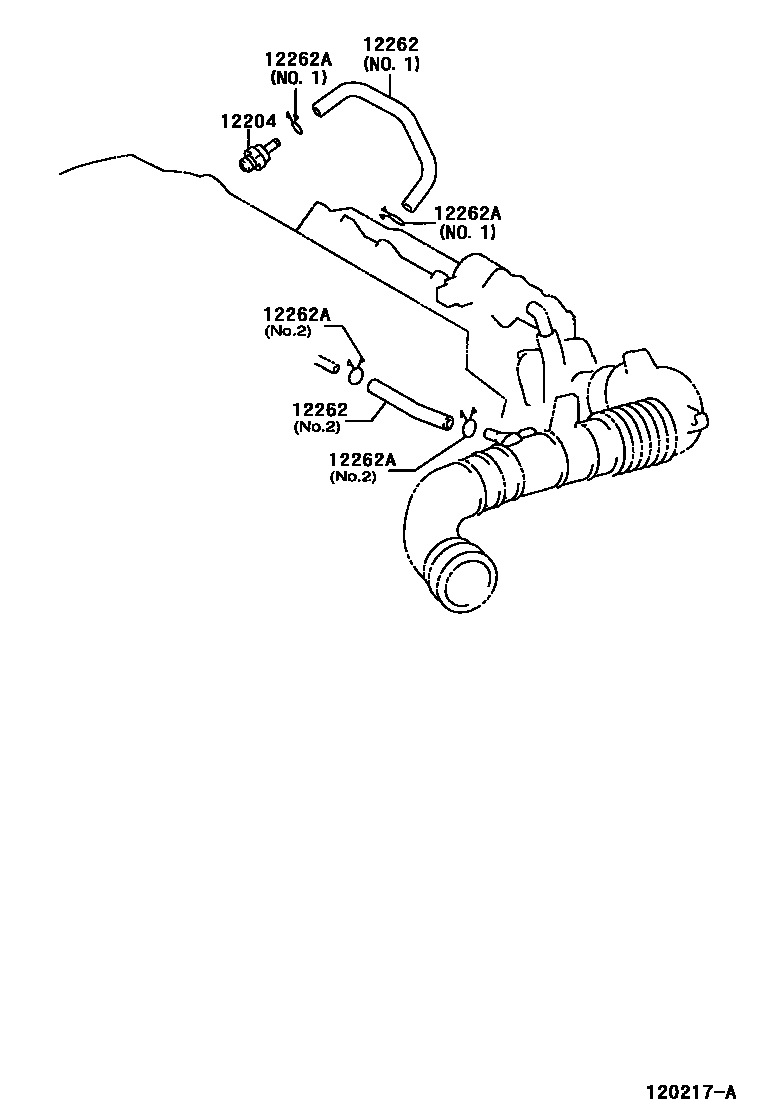

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-22030i199806-200004

main12204-22050i200004-200308

main12204-28020i200108

main12204-74030i199806

12262HOSE, VENTILATION, NO.2

main12262-22010i199806-200004

main12262-22040i200004-200308

main12262-28030i200108

main12262-28070i200108

main12262-74100i199806

main12262-74150i199806-200108

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103×2i200108

main90467-14001i199806-200004

main90467-14043×2i199806

main90467-16038i199806-200004

main90467-19003i200004-200308

3 parts on this diagram · 5 diagrams in section
