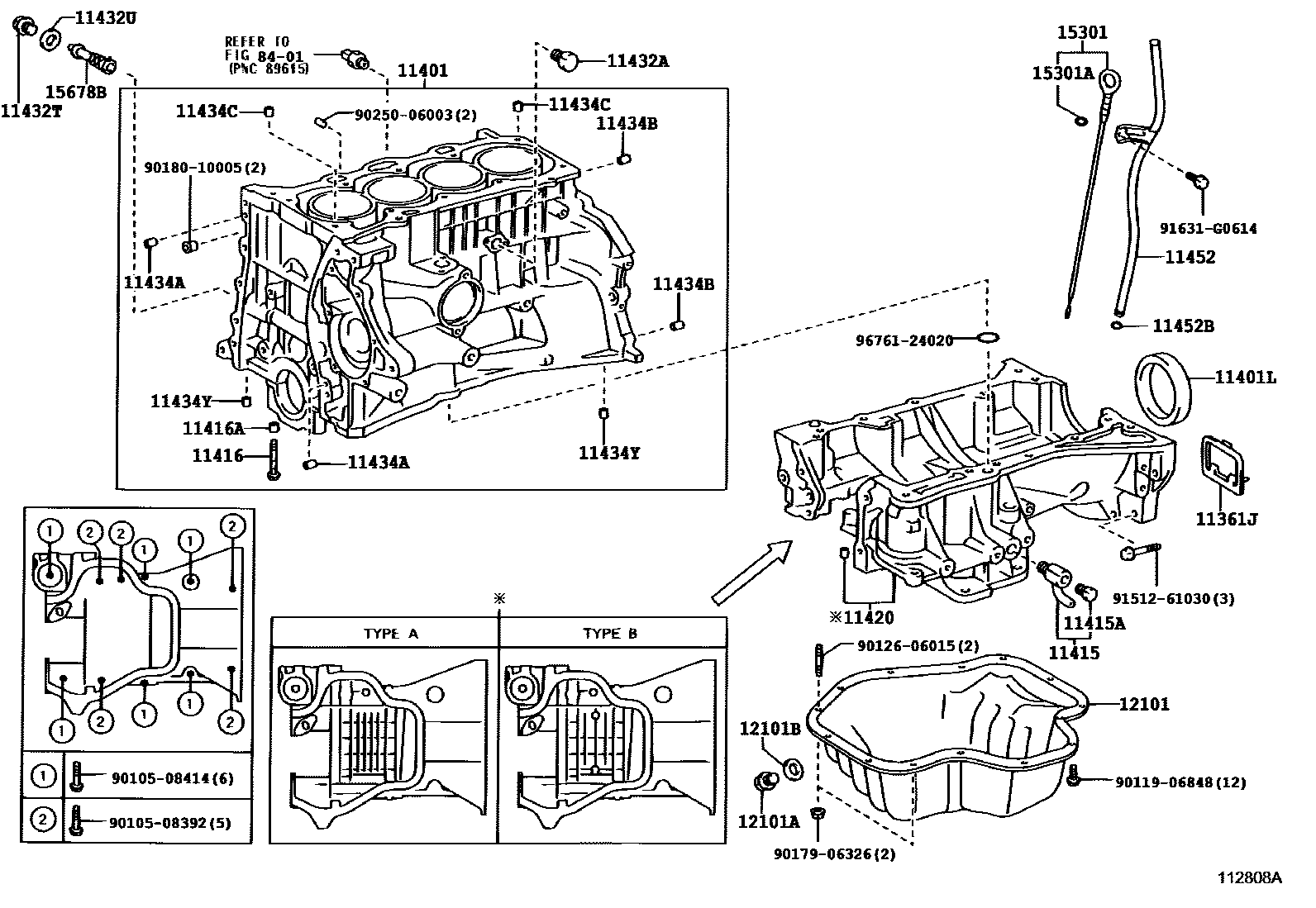

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-22021i1ZZFE..ZZV50199806-200307

main11361-28010i1AZFSE..AZV5#200108

11401BLOCK SUB-ASSY, CYLINDER

main11401-74967i3SFSE..SV50199806-200108

main11401-80015i3SFE..SV55199806

main11410-29035i1ZZFE..ZZV50199806-199903

main11410-29065i1ZZFE..ZZV50199903-200004

main11410-29066i1ZZFE..ZZV50200004-200101

main11410-29086i1ZZFE..ZZV50200101-200212

main11410-29115i1AZFSE..AZV5#200108

sub11410-29195

main11410-29135i1ZZFE..ZZV50200212-200308

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

11401LSEAL, ENGINE REAR OIL

main90311-76001i1ZZFE..ZZV50199806-200308

sub90311-76003

main90311-89003i1AZFSE..AZV5#200108

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1ZZFE..ZZV50199806-200308

main90910-09120i1AZFSE..AZV5#200108

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1ZZFE..ZZV50199806-200308

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-08363×10i1ZZFE..ZZV50199806-200308

sub91511-K0840

main90105-10028×10i3SF#..SV5#199806

main90910-02124×10i1AZFSE..AZV5#200108

sub90910-02206

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1AZFSE..AZV5#200108

11420CRANKCASE ASSY, STIFFENING

main11421-28020i1AZFSE..AZV5#200112-200301

main11421-28031i1AZFSE..AZV5#200301

main11421-28900i1AZFSE..AZV50200108-200112

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFSE..AZV5#200108

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFSE..AZV5#200108

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFSE..AZV5#200108-200304

main90430-14011i1AZFSE..AZV5#200304

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074×2i1AZFSE..AZV5#200108-200302

main90250-08120×2i1AZFSE..AZV5#200302

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1ZZFE..ZZV50199806-200308

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003×2i1AZFSE..AZV5#200108

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074×2i1AZFSE..AZV5#200108

11452GUIDE, OIL LEVEL GAGE

main11452-22020i1ZZFE..ZZV50199806-199908

main11452-22021i1ZZFE..ZZV50199908-200004

main11452-22030i1ZZFE..ZZV50200004-200308

sub11452-22031

sub11459-22010

main11452-28010i1AZFSE..AZV5#200108-200301

main11452-28011i1AZFSE..AZV5#200301-200309

main11452-74031i3SFE..SV55199806

main11452-74100i3SFSE..SV50199806-200108

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1ZZFE..ZZV50199806-200308

12101PAN SUB-ASSY, OIL

main12101-22022i1ZZFE..ZZV50199806-199901

main12101-22023i1ZZFE..ZZV50199901-199905

main12101-22024i1ZZFE..ZZV50199905-200308

main12101-28050i1AZFSE..AZV5#200108

main12101-74150i3SFE..SV55199806

sub12101-74160

sub12129-54010

sub91651-60614

main12101-74170i3SFSE..SV50199806-200108

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFSE..AZV5#200210

main90341-12026i3SF#..SV5#199806-200204

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ZZFE..ZZV50199806-200308

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22020i1ZZFE..ZZV50199806-200004

main15301-22030i1ZZFE..ZZV50200004-200308

sub15301-22050

main15301-28020i1AZFSE..AZV5#200108-200301

main15301-28050i1AZFSE..AZV5#200301-200304

main15301-28051i1AZFSE..AZV5#200304

main15301-74010i3SFE..SV55199806

main15301-74140i3SFSE..SV50199806-200108

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFSE..AZV5#200108-200301

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFSE..AZV5#200108

8401

9010508392

main90105-08392

9010508414

main90105-08414

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9018010005

main90180-10005

9025006003

main90250-06003

9151261030

main91512-61030

91631G0614

main91631-G0614

9676124020

main96761-24020

34 parts on this diagram · 4 diagrams in section
