ENGINE OVERHAUL GASKET KIT

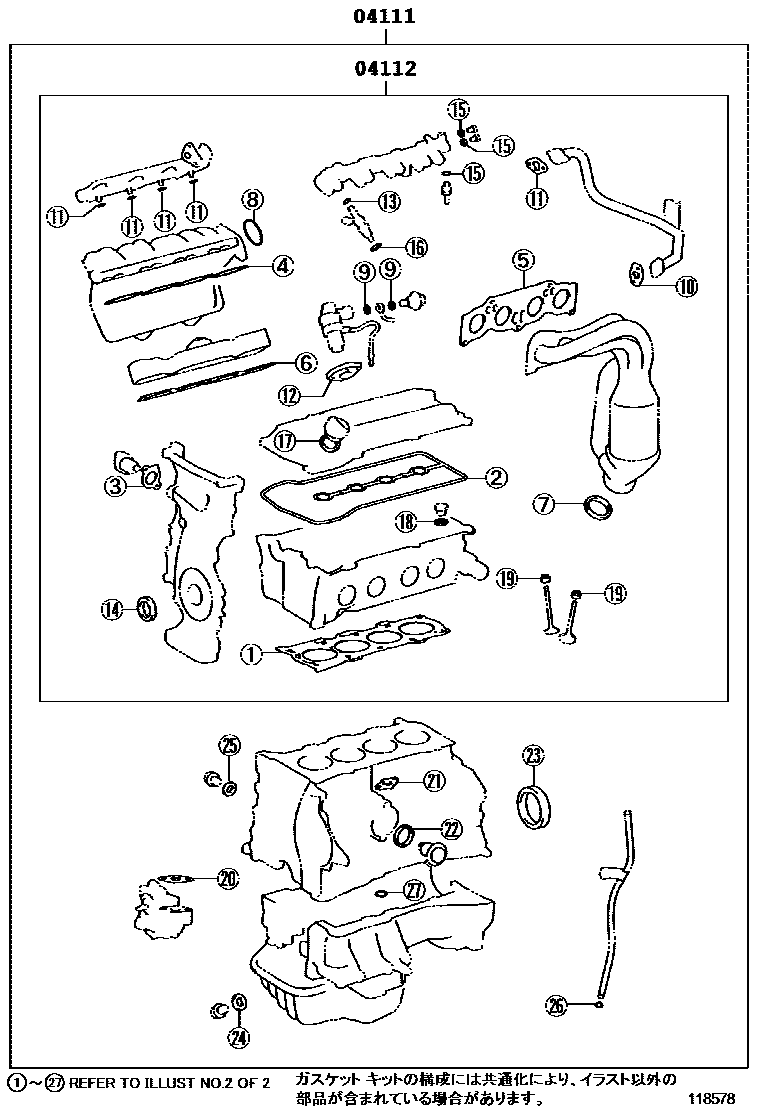

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-22050i199806-200004
sub04111-22051
main04111-22120i200004-200105
main04111-22150i200105-200206
main04111-22151i200206-200302
main04111-22152i200302-200308
sub04111-22511
main04111-28062i200108-200211
main04111-28063i200211-200212
main04111-28064i200212-200304
main04111-28065i200304
sub04111-28350
main04111-74750i199806-200108
main04111-74760i199806
04112GASKET KIT, ENGINE VALVE GRIND
main04112-22050i199806-200004
sub04112-22051
main04112-22120i200004-200105
main04112-22150i200105-200206
main04112-22151i200206-200302
main04112-22152i200302-200308
sub04112-22481
main04112-28062i200108-200211
main04112-28063i200211-200212
main04112-28064i200212-200304
main04112-28065i200304
sub04112-28340
main04112-74750i199806-200108
main04112-74760i199806

2 parts on this diagram · 10 diagrams in section
