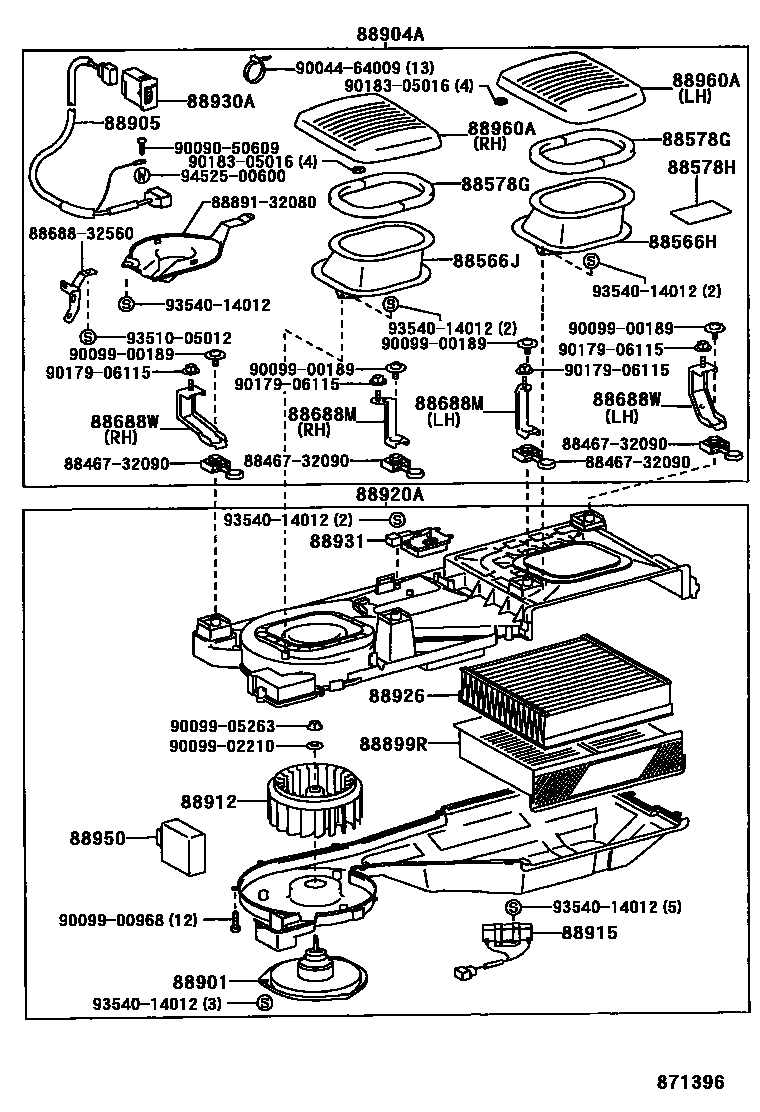

AIR PURIFIER OR ION GENERATOR

88566HDUCT, AIR, NO.1

main88566-32110iCV4#,SV4#..SED199406

main88566-32120iCV4#,SV4#..HT199406

88566JDUCT, AIR, NO.2

main88566-32110iCV4#,SV4#..SED199406

main88566-32120iCV4#,SV4#..HT199406

88578GPACKING, AIR PURIFIER, NO.1

main88578-32080×2iCV4#,SV4#..SED199406

main88578-32090×2iCV4#,SV4#..HT199406

88578HPACKING, AIR PURIFIER, NO.2

main88578-30370×5iCV4#,SV4#..HT199406

88688MBRACKET, AIR PURIFIER, NO.2

main88688-32580iCV4#,SV4#..SED199406

main88688-32590iCV4#,SV4#..SED199406

main88688-32620iCV4#,SV4#..HT199406

main88688-32630iCV4#,SV4#..HT199406

88688WBRACKET, AIR PURIFIER, NO.1

main88688-32570×2iCV4#,SV4#..SED199406

main88688-32600iCV4#,SV4#..HT199406

main88688-32610iCV4#,SV4#..HT199406

88899RFRAME, AIR PURIFIER

main88899-50011iCV4#,SV4#199406

88901MOTOR SUB-ASSY, AIR PURIFIER

main88901-22310iCV4#,SV4#199406

sub88901-22320

88904AACCESSORY SUB-ASSY, AIR PURIFIRE

main88904-32230-B0iCV4#,SV4#..SED199406

SHADOW GRAY,TRIM1#

main88904-32230-E0iCV4#,SV4#..LUM,XJ,ZX199406

OAK,TRIM4#

main88904-32240-B0iCV4#,SV4#..HT199406

SHADOW GRAY,TRIM1#

main88904-32240-E0iCV4#,SV4#..ETO,VJ,VX199406

OAK,TRIM4#

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main88905-32220iCV4#,SV4#199406

88912FAN, AIR PURIFIER

main88912-22310iCV4#,SV4#199406

88915RESISTOR, AIR PURIFIER

main88915-22310iCV4#,SV4#199406

88920APURIFIER ASSY, AIR

main88920-32230iCV4#,SV4#199406

88926FILTER, AIR PURIFIER

main88926-50011iCV4#,SV4#199406

88930ASWITCH ASSY, AIR PURIFIER

main88930-32030iCV4#,SV4#199406

88931SENSOR, SMOKE

main88931-33010iCV4#,SV4#199406

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-22310iCV4#,SV4#199406

88960AGRILLE ASSY, AIR PURIFIER

main88960-32230-B0iCV4#,SV4#199406

main88960-32230-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

main88960-32240-B0iCV4#,SV4#199406

main88960-32240-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

8846732090CUSHION, COOLER CONDENSER, NO.1

main88467-32090

8868832560BRACKET, COOLER DIAPHRAGM

main88688-32560

8889132080PACKING (FOR COOLER)

main88891-32080

9004464009

main90044-64009

9009050609

main90090-50609

9009900189

main90099-00189

9009900968

main90099-00968

9009902210

main90099-02210

9009905263

main90099-05263

9017906115

main90179-06115

9018305016

main90183-05016

9351005012

main93510-05012

9354014012

main93540-14012

9452500600

main94525-00600

32 parts on this diagram · 1 diagram in section
