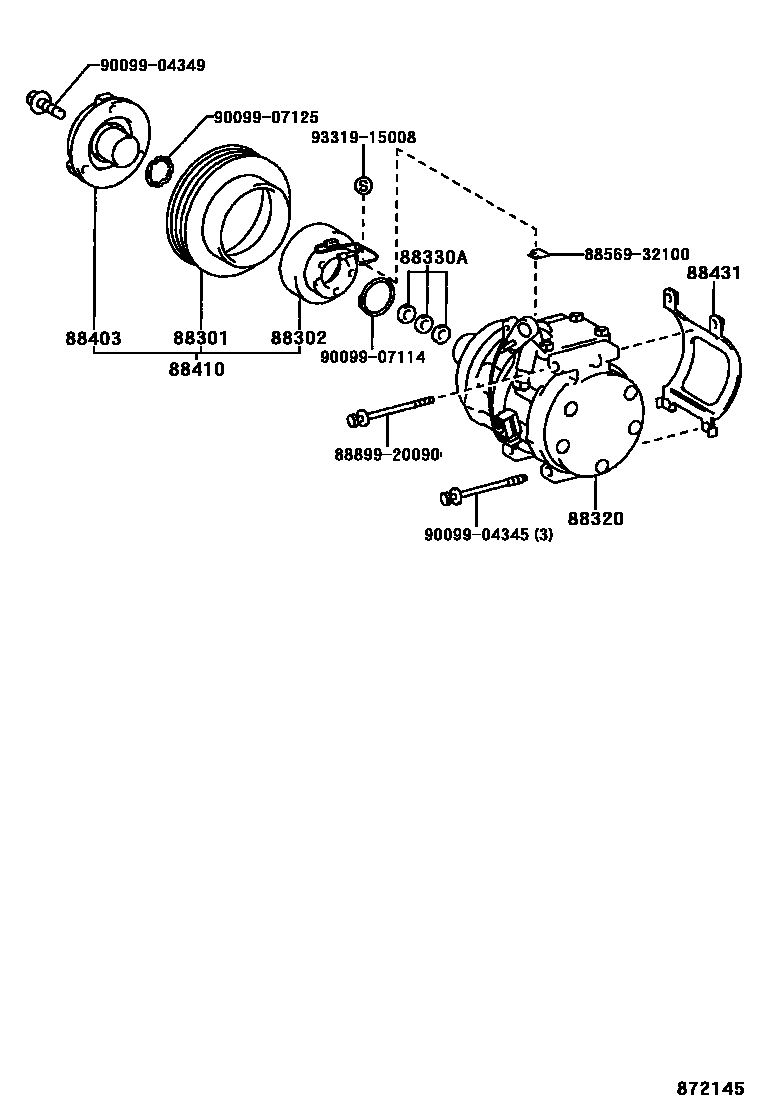

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32040iCV4#199406-199806

main88412-32060iSV4#199406-199707

main88412-32070iSV41,42,43199707-199806

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2B020iSV40199707-199806

main88411-2B090iCV4#199605-199806

main88411-32080iCV4#199406-199605

main88411-32090iSV41,42,43199707-199806

88320COMPRESSOR ASSY, COOLER

main88320-32180iCV4#199406-199806

main88320-32190iSV4#199406-199707

main88320-32200iSV41,42,43199707-199806

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCV4#,SV4#199406-199806

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iCV4#,SV40199707-199806

main88403-32010iSV41,42,43199707-199806

88410CLUTCH ASSY, MAGNET

main88410-32110iCV4#199406-199806

main88410-32130iSV40199707-199806

main88410-32140iSV41,42,43199707-199806

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-32030iCV4#199406

8856932100CLAMP (FOR COOLER RELAY)

main88569-32100

8889920090COVER, EVAPORATOR

main88899-20090

9009904345

main90099-04345

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

14 parts on this diagram · 2 diagrams in section
