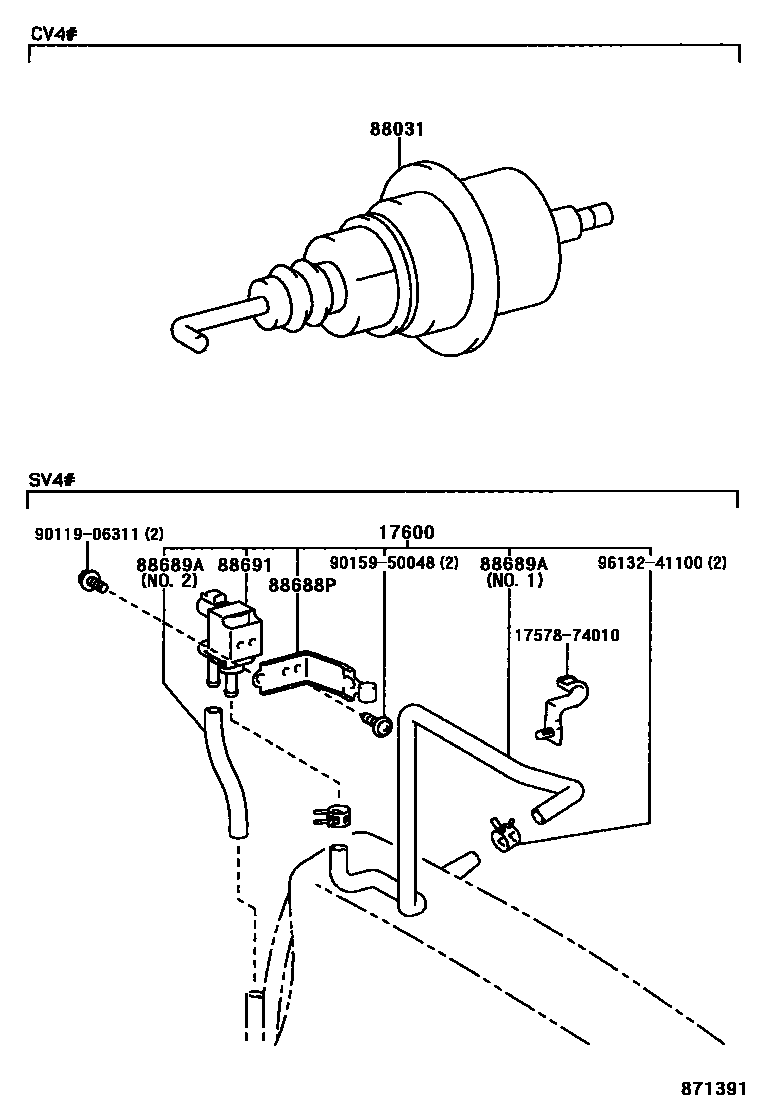

HEATING & AIR CONDITIONING - VACUUM PIPING

17600VALVE ASSY, AIR BY-PASS W/HOSE

main17600-74220i3SFE,4SFE..SV4#199406-199605

88031ACTUATOR SET, IDLE-UP

main88031-27040iCV4#199406

88688PBRACKET (FOR MAGNET VALVE)

main88688-2D580iSV4#199406-199605

88689AHOSE, COOLER VACUUM NO.1

main17347-74060iSV4#199406-199605

main88689-20390iSV4#199406-199605

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main90910-13004iSV4#199406-199605

1757874010CLAMP, PIPE

main17578-74010

9011906311

main90119-06311

9015950048

main90159-50048

9613241100

main96132-41100

9 parts on this diagram · 1 diagram in section
