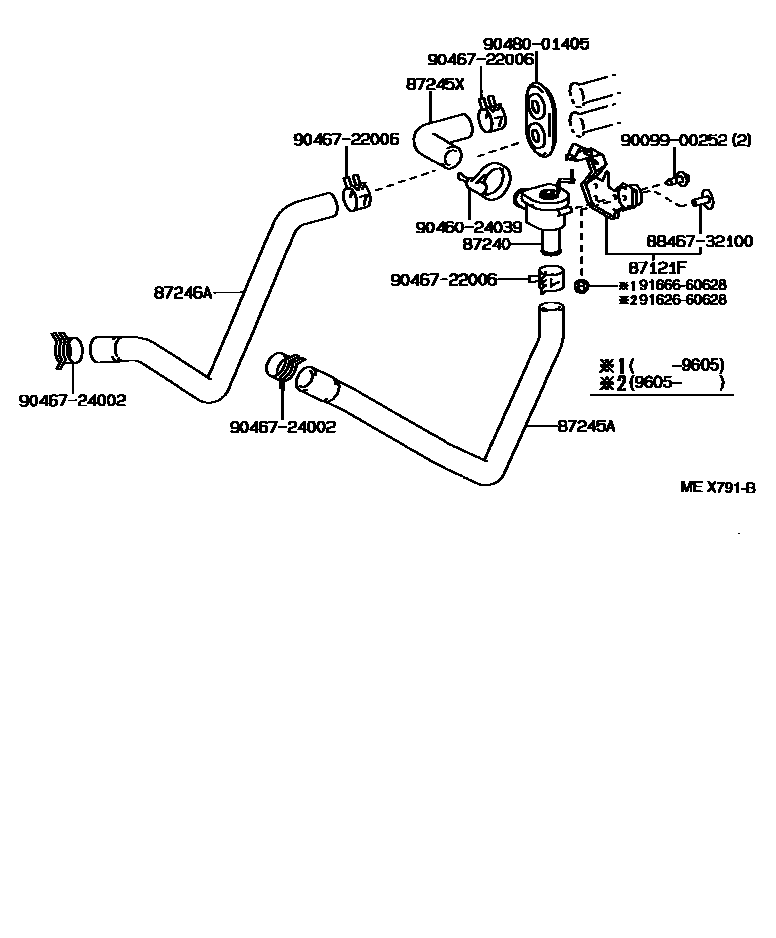

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87121FBRACKET, HEATER

main87121-32020iCV4#,SV4#199406

87240VALVE ASSY, HEATER WATER

main87240-32040iCV4#,SV4#199406

87245AHOSE, HEATER WATER, INLET A

main87245-32330iSV4#199406-199605

main87245-32350iCV4#199406

main87245-32380iSV4#199605

87245XHOSE, HEATER WATER

main87245-32370iCV4#,SV4#199406

87246AHOSE, HEATER WATER, OUTLET A

main87245-32340iSV4#199406-199605

main87245-32360iCV4#199406

main87245-32410iSV4#199605

8846732100CUSHION, COOLER CONDENSER, NO.1

main88467-32100

9009900252

main90099-00252

9046024039

main90460-24039

9046722006

main90467-22006

9046724002

main90467-24002

9048001405

main90480-01405

9162660628

main91626-60628

9166660628

main91666-60628

13 parts on this diagram · 2 diagrams in section
