MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22190-B3iCV4#,SV4#199406

MD.GRAY,TRIM1#

main87810-22190-E4iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

MD.OAK,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iCV4#,SV4#199406

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B0iCV4#,SV4#199406

GRAY,TRIM1#

main87834-20080-E4iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

MD.OAK,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-32410iCV4#,SV4#199406

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-32530iCV4#,SV4#199406

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32410-A0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

SUPER WHITE 2,040

main87910-32410-A1iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406-199605

WARM GRAY PM,22Y

main87910-32410-B0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199605

LT.GRAIGE ME.,1A2

main87910-32410-B1iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406-199605

DK BLUISH GRAY MICA,29Y

main87910-32410-B2iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

SILVER ME,199

main87910-32410-E0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

FLAXEN MM,4M7

main87910-32410-G0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

DK GREEN MICA,6M1

main87910-32410-J0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199605

DK.BLUE MM,8G5

main87910-32410-J1iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

DK.BLUE MC.GR.,8L8

main87910-32500-A0iCV4#,SV40..XJ199406-199806

SUPER WHITE 2,040

main87910-32500-A1iCV4#,SV40..XJ199605-199806

WARM GRAY PM,22Y

main87910-32500-B0iCV4#,SV40..XJ199406-199605

LT.GRAIGE ME.,1A2

main87910-32500-B1iCV4#,SV40..XJ199406-199806

SILVER ME,29Y

main87910-32500-B2iCV4#,SV40..XJ199406-199806

SILVER ME,199

main87910-32500-E0iCV4#,SV40..XJ199605-199806

FLAXEN MM,4M7

main87910-32500-G0iCV4#,SV40..XJ199406-199806

DK GREEN MICA,6M1

main87910-32500-J0iCV4#,SV40..XJ199406-199605

DK.BLUE MM,8G5

main87910-32500-J1iCV4#,SV40..XJ199605-199806

DK.BLUE MC.GR.,8L8

main87910-32590-A0iSV40..VJ199712-199806

main87910-32590-A1iSV40,43..ETO199504-199605

main87910-32590-B0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199605

LT.GRAIGE ME.,1A2

main87910-32590-B1iCV4#,SV4#..HT..(ETO,TOU,VX)199605-199806

DK BLUISH GRAY MICA,29Y

main87910-32590-B2iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199806

SILVER ME,199

main87910-32590-E0iSV40..VJ199712-199806

main87910-32590-G0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199806

DK GREEN MICA,6M1

main87910-32590-J0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199605

DK.BLUE MM,8G5

main87910-32590-J1iCV4#,SV4#..HT..(ETO,TOU,VX)199605-199806

DK.BLUE MC.GR.,8L8

main87910-32600-A0iCV4#,SV40..VJ199406-199806

SUPER WHITE 2,040

main87910-32600-A1iCV4#,SV40..VJ199605-199806

WARM GRAY PM,22Y

main87910-32600-B0iCV4#,SV40..VJ199406-199605

LT.GRAIGE ME.,1A2

main87910-32600-B1iCV4#,SV40..VJ199605-199806

DK BLUISH GRAY MICA,29Y

main87910-32600-B2iCV4#,SV40..VJ199406-199806

SILVER ME,199

main87910-32600-E0iCV4#,SV40..VJ199605-199806

FLAXEN MM,4M7

main87910-32600-G0iCV4#,SV40..VJ199406-199806

DK GREEN MICA,6M1

main87910-32600-J0iCV4#,SV40..VJ199406-199605

DK.BLUE MM,8G5

main87910-32600-J1iCV4#,SV40..VJ199605-199806

DK.BLUE MC.GR.,8L8

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32500-A0iCV4#,SV40..XJ199406-199806

SUPER WHITE 2,040

main87940-32500-A1iCV4#,SV40..XJ199605-199806

WARM GRAY PM,22Y

main87940-32500-B0iCV4#,SV40..XJ199406-199605

LT.GRAIGE ME.,1A2

main87940-32500-B1iCV4#,SV40..XJ199406-199806

SILVER ME,29Y

main87940-32500-B2iCV4#,SV40..XJ199406-199806

SILVER ME,199

main87940-32500-E0iCV4#,SV40..XJ199605-199806

FLAXEN MM,4M7

main87940-32500-G0iCV4#,SV40..XJ199406-199806

DK GREEN MICA,6M1

main87940-32500-J0iCV4#,SV40..XJ199406-199605

DK.BLUE MM,8G5

main87940-32500-J1iCV4#,SV40..XJ199605-199806

DK.BLUE MC.GR.,8L8

main87940-32530-A0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

SUPER WHITE 2,040

main87940-32530-A1iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

WARM GRAY PM,22Y

main87940-32530-B0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199605

LT.GRAIGE ME.,1A2

main87940-32530-B1iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

DK BLUISH GRAY MICA,29Y

main87940-32530-B2iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

SILVER ME,199

main87940-32530-E0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

FLAXEN MM,4M7

main87940-32530-G0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199806

DK GREEN MICA,6M1

main87940-32530-J0iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199605

DK.BLUE MM,8G5

main87940-32530-J1iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199605-199806

DK.BLUE MC.GR.,8L8

main87940-32630-A0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199806

SUPER WHITE 2,040

main87940-32630-A1iSV40,43..ETO199504-199605

main87940-32630-B0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199605

LT.GRAIGE ME.,1A2

main87940-32630-B1iCV4#,SV4#..HT..(ETO,TOU,VX)199605-199806

DK BLUISH GRAY MICA,29Y

main87940-32630-B2iSV40..VJ199712-199806

main87940-32630-E0iSV40..VJ199712-199806

main87940-32630-G0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199806

DK GREEN MICA,6M1

main87940-32630-J0iCV4#,SV4#..HT..(ETO,TOU,VX)199406-199605

DK.BLUE MM,8G5

main87940-32630-J1iCV4#,SV4#..HT..(ETO,TOU,VX)199605-199806

DK.BLUE MC.GR.,8L8

main87940-32640-A0iCV4#,SV40..VJ199406-199806

SUPER WHITE 2,040

main87940-32640-A1iCV4#,SV40..VJ199605-199806

WARM GRAY PM,22Y

main87940-32640-B0iCV4#,SV40..VJ199406-199605

LT.GRAIGE ME.,1A2

main87940-32640-B1iCV4#,SV40..VJ199605-199806

DK BLUISH GRAY MICA,29Y

main87940-32640-B2iCV4#,SV40..VJ199406-199806

SILVER ME,199

main87940-32640-E0iCV4#,SV40..VJ199605-199806

FLAXEN MM,4M7

main87940-32640-G0iCV4#,SV40..VJ199406-199806

DK GREEN MICA,6M1

main87940-32640-J0iCV4#,SV40..VJ199406-199605

DK.BLUE MM,8G5

main87940-32640-J1iCV4#,SV40..VJ199605-199806

DK.BLUE MC.GR.,8L8

9010506130

main90105-06130

9010506185

main90105-06185

9014950059

main90149-50059

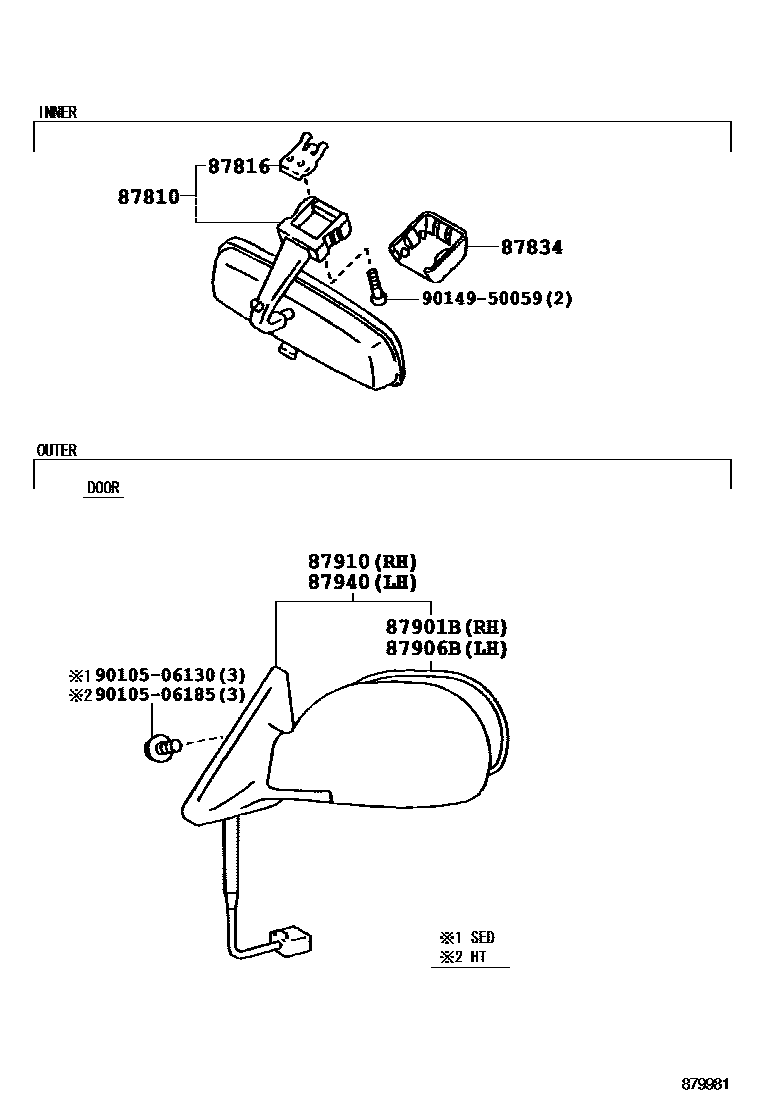

10 parts on this diagram · 1 diagram in section
