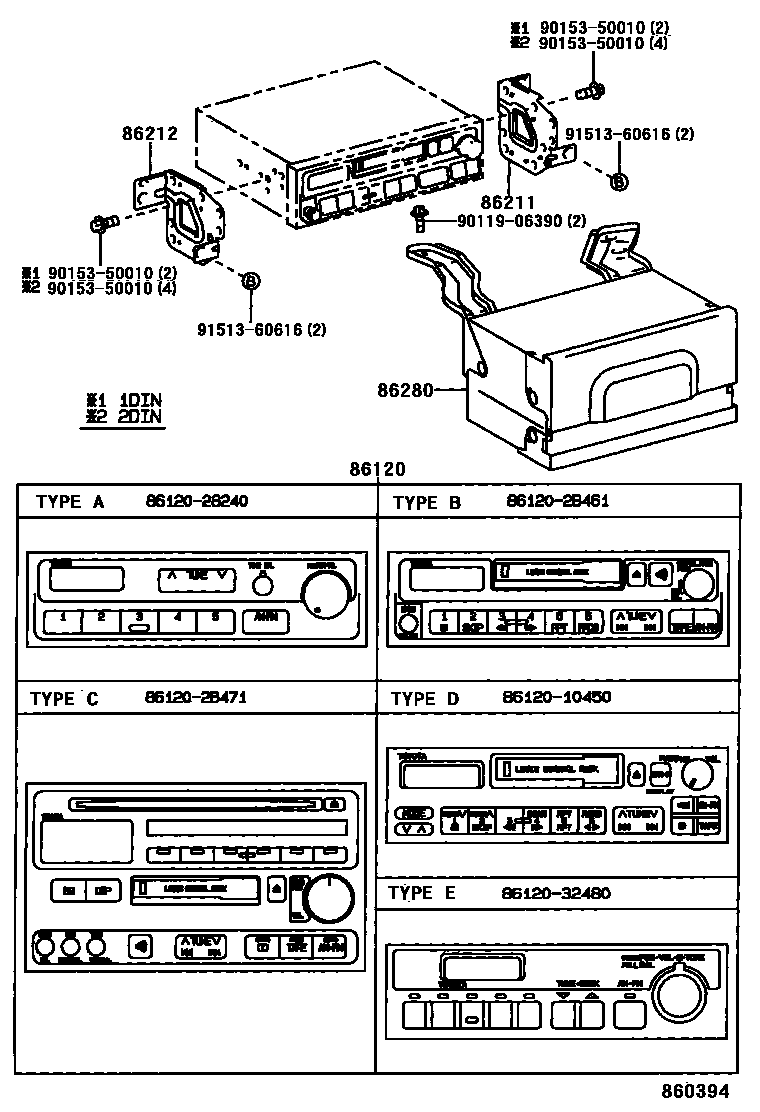

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1���� ��-��,������ & ���������0002 1������ & ��������

86120RECEIVER ASSY, RADIO

main86120-10450iCV4#,SV4#..ALPX,VX,ZX199605-199806

main86120-10450iSV40..VJ199712-199806

main86120-28240iSV40,41,43..ETO,LUM199406-199605

main86120-2B461iCV4#,SV4#..ALPX,VX,ZX199406-199605

main86120-2B471iCV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX199406-199605

main86120-32480iSV40,41,43..ETO,LUM199605-199806

86211BRACKET, RADIO, NO.1

main86211-32080iCV4#,SV4#199406-199605

main86211-32090iCV4#,SV4#199605

86212BRACKET, RADIO, NO.2

main86212-32080iCV4#,SV4#199406-199605

main86212-32090iCV4#,SV4#199605

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-32130iCV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX199406-199605

9011906390

main90119-06390

9015350010

main90153-50010

9151360616

main91513-60616

7 parts on this diagram · 2 diagrams in section
