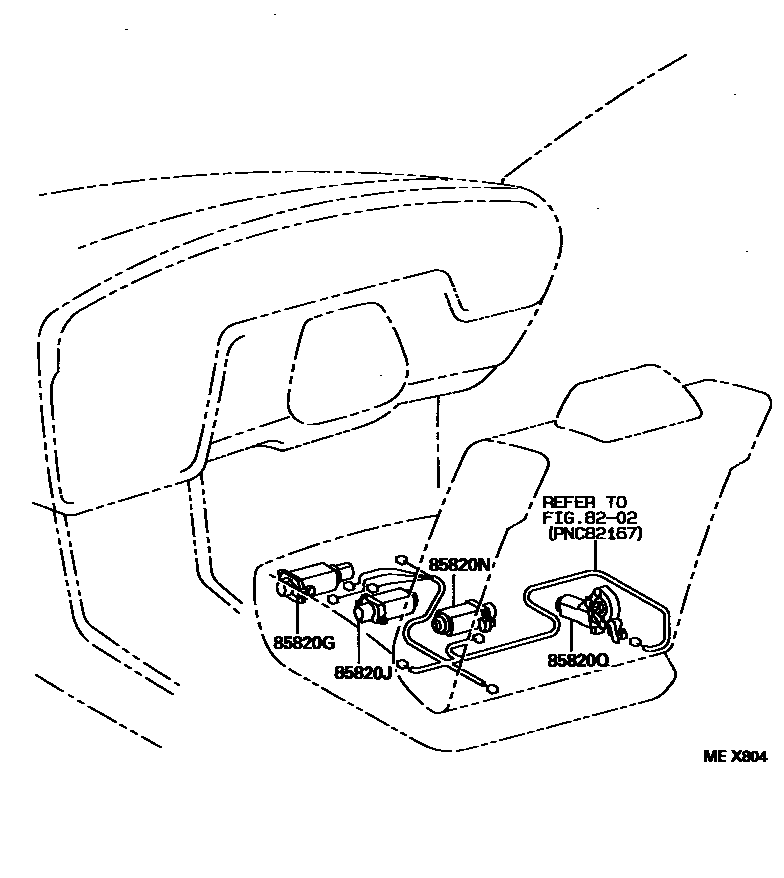

SEAT MOTOR & SEAT HEATER

8202WIRING & CLAMP

→ Go to FIG 82-02

85820GMOTOR ASSY, POWER SEAT

main85820-30510iSV41,42,43..VX,ZX199605

main85820-32050iSV41,42,43..VX,ZX199406-199605

85820JMOTOR ASSY, POWER SEAT

main85820-30510iSV41,42,43..VX,ZX199605

main85820-32030iSV41,42,43..VX,ZX199406-199605

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85820-30510iSV41,42,43..VX,ZX199605

main85820-32040iSV41,42,43..VX,ZX199406-199605

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-30570iSV41,42,43..VX,ZX199605

main85820-32020iSV41,42,43..VX,ZX199406-199605

5 parts on this diagram · 1 diagram in section
