WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-32030iCV4#,SV4#199406-199605

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iCV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX199406

main85330-12280iSV42..TOU199406

85330JAR ASSY, WINDSHIELD WASHER

main85315-32070iCV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX199406

main85315-32080iSV42..TOU199406

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCV4#,SV4#199406

85332CAP, WINDSHIELD WASHER JAR

main85316-33120iCV4#,SV4#199406

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iCV4#,SV4#199406

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-32220iCV4#,SV4#199406

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iCV4#,SV4#199406

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iCV4#,SV4#199406

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iCV4#,SV4#199406

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iCV4#,SV4#199406

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iCV4#,SV4#199406-199605

main90099-59123iCV4#,SV4#199605

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iCV4#,SV4#199406-199605

main90099-33299iCV4#,SV4#199605

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iCV4#,SV4#199406-199605

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904433

main90099-04433

9011906442

main90119-06442

9017906242

main90179-06242

9046907002

main90469-07002

9095901335

main90959-01335

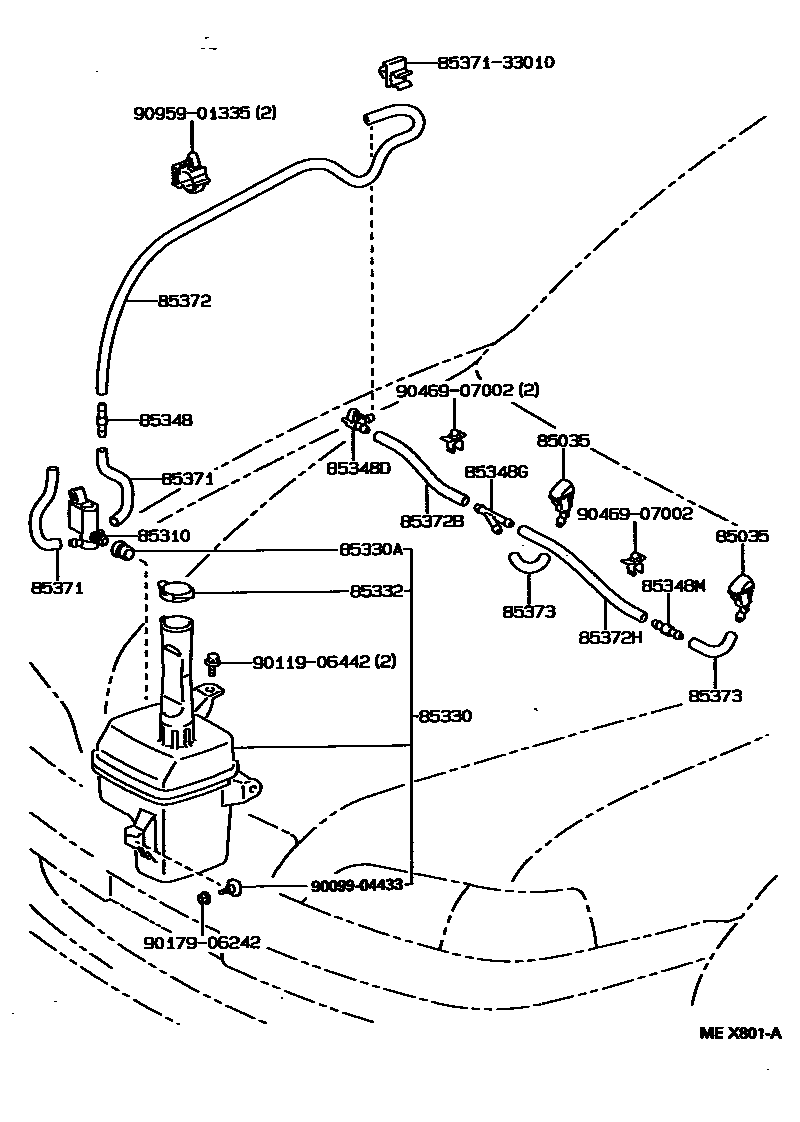

20 parts on this diagram · 1 diagram in section
