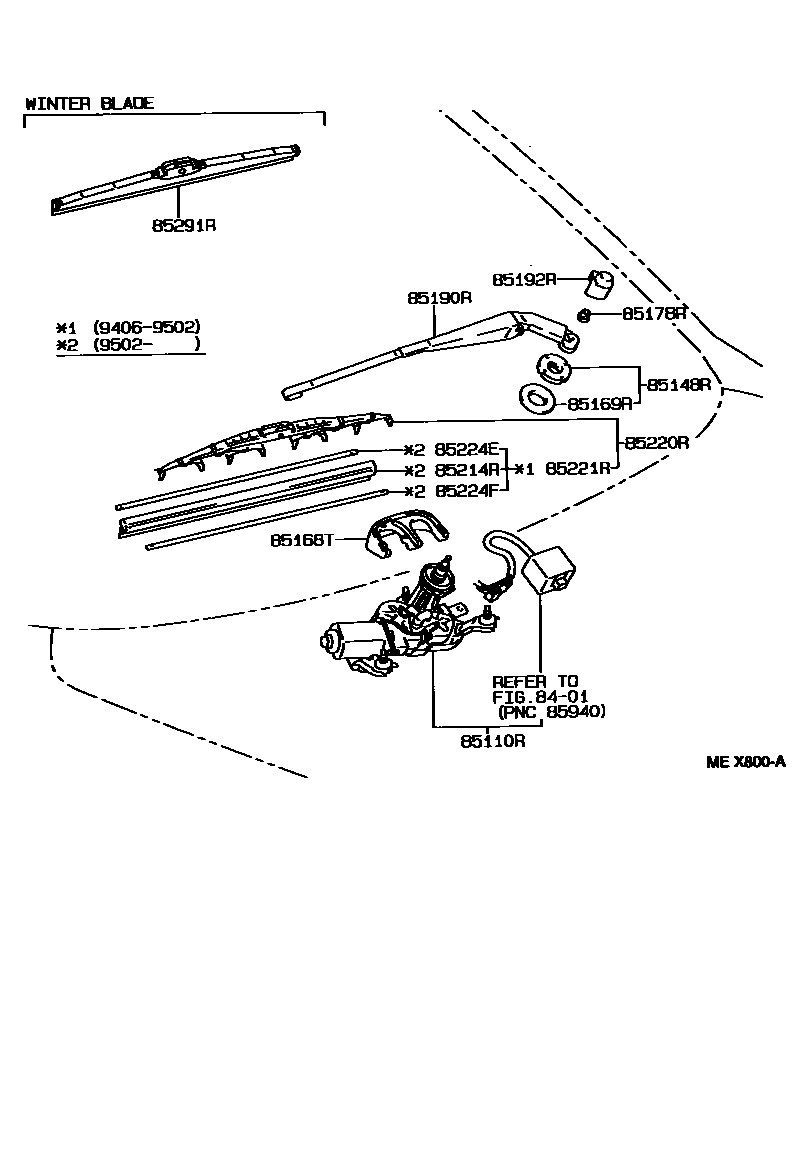

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-32300iCV4#,SV4#..SED199406

main85130-32310iCV4#,SV4#..HT199406

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-12770iCV4#,SV4#199406

85168TCOVER, WIPER LINK

main85168-20690-E1iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub85168-20690

main85168-20690-P0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub85168-20690

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iCV4#,SV4#199406

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iCV4#,SV4#199406

85190RARM ASSY, REAR WIPER

main85241-32030iCV4#,SV4#..HT199406

main85241-32040iCV4#,SV4#..SED199406

85192RCOVER, REAR WIPER ARM

main85244-12010iCV4#,SV4#199406

85214RRUBBER, REAR WIPER

main85214-20290iCV4#,SV4#..SED199502-199605

sub85214-30260

main85214-20420iCV4#,SV4#..HT199605

main85214-22360iCV4#,SV4#..HT199502-199605

sub85214-20330

main85214-32080iCV4#,SV4#..SED199605

85220RBLADE ASSY, REAR WIPER

main85242-20090iCV4#,SV4#..HT199605

main85242-32020iCV4#,SV4#..HT199406-199605

sub85242-20090

main85242-32030iCV4#,SV4#..SED199406-199605

sub85242-32040

main85242-32040iCV4#,SV4#..SED199605

85221RBLADE, REAR WIPER

main85243-20020iCV4#,SV4#..SED199406-199502

sub85214-20290

main85243-22030iCV4#,SV4#..HT199406-199502

sub85214-22360

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-1G010iCV4#,SV4#..HT199605

main85224-20360iCV4#,SV4#..SED199605

main85224-30380iCV4#,SV4#..SED199502-199605

main85224-60050iCV4#,SV4#..HT199502-199605

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-1G010iCV4#,SV4#..HT199605

main85224-20360iCV4#,SV4#..SED199605

main85224-30380iCV4#,SV4#..SED199502-199605

main85224-60050iCV4#,SV4#..HT199502-199605

85291RBLADE,REAR WIPER, WINTER

main85291-60020iCV4#,SV4#199406

sub85291-33050

14 parts on this diagram · 1 diagram in section
