Toyota 281120 — WIRELESS DOOR LOCK

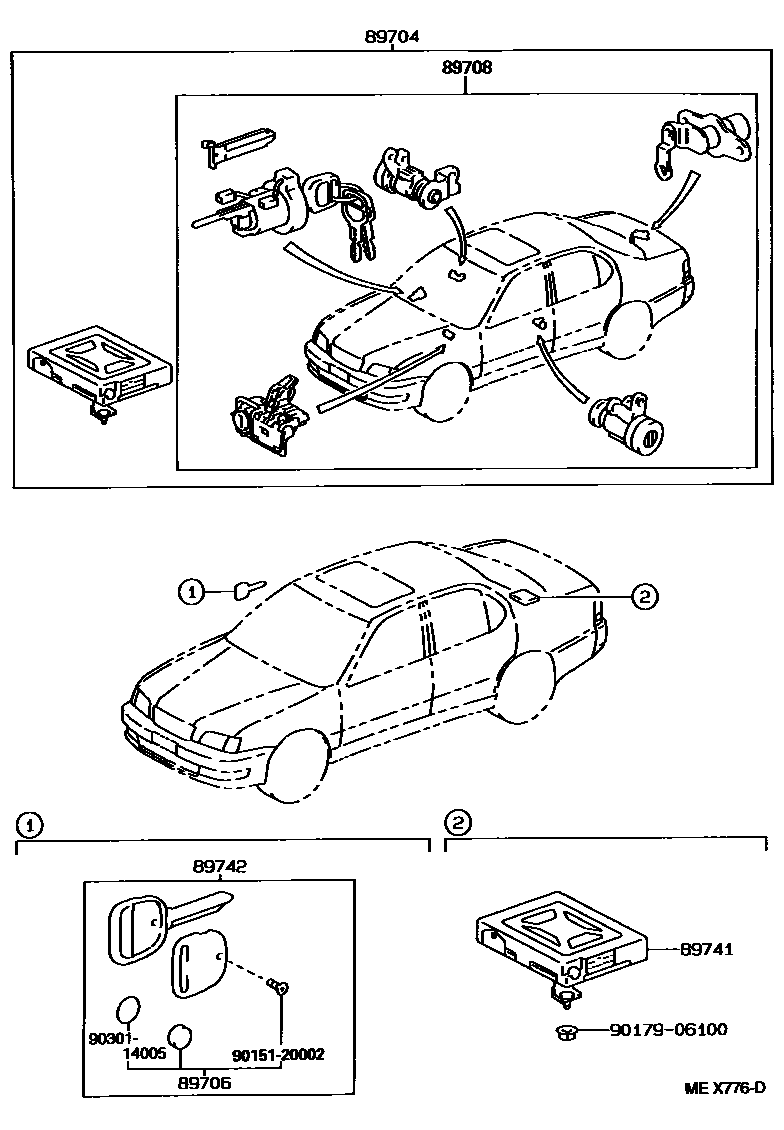

Parts diagram
89704CONTROL SET, WIRELESS DOOR LOCK
89704-32140
89704-32150
89706BATTERY SET, TRANSMITTER
89706-50010
89708CYLINDER SET, WIRELESS DOOR LOCK
89708-32080
89708-32090
89741RECEIVER, DOOR CONTROL
89741-32040
89742TRANSMITTER, DOOR CONTROL
89742-26050
89742-32180
9015120002
90151-20002
9017906100
90179-06100
9030114005
90301-14005

8 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota 281120

This section contains 8 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota 281120. Key components include: CONTROL SET, WIRELESS DOOR LOCK, BATTERY SET, TRANSMITTER, CYLINDER SET, WIRELESS DOOR LOCK, RECEIVER, DOOR CONTROL, TRANSMITTER, DOOR CONTROL.
