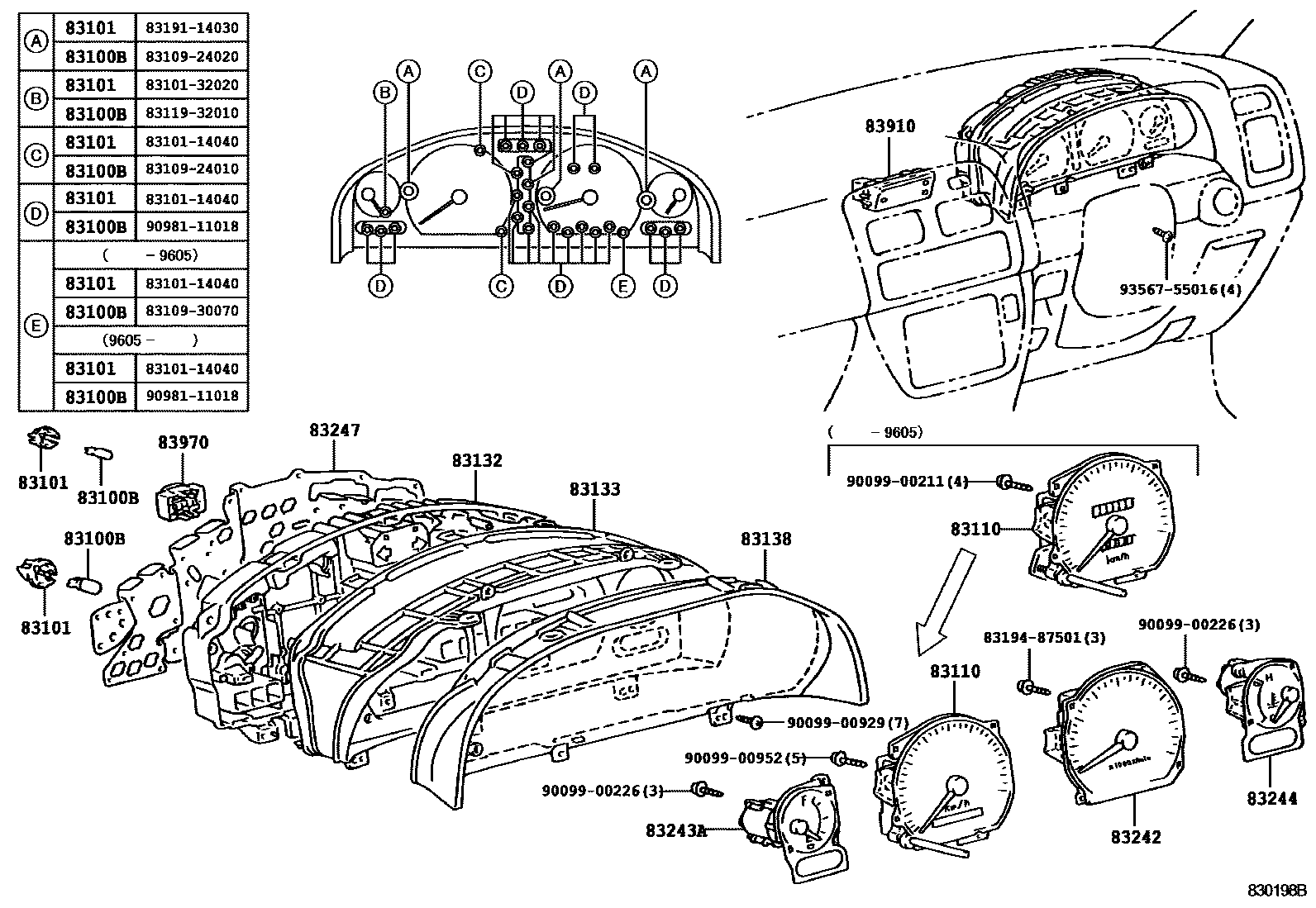

METER

0001 1����� �-� 0002 1�������� �-� 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-24010×2iCV4#,SV4#199406-199806

main83109-24020×3iCV4#,SV4#199406-199806

main83109-30070iCV4#,SV4#199406-199605

main83119-24570×8iSV41,42,43..ALPX,VX,ZX199406-199806

main83119-32010iCV4#,SV4#199406-199806

main90981-11018×23iCV40,SV4#199406-199605

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3iCV4#,SV4#199406

main83101-14040iCV4#,SV4#199406-199605

main83101-24010×8iSV41,42,43..ALPX,VX,ZX199406

main83101-32020iCV4#,SV4#199406

83110SPEEDOMETER ASSY

main83110-32690iSV41,42..ALPX,VX,ZX199406-199605

main83110-32700iSV41,42..ALPX,VX,ZX199406-199605

main83110-32701iSV41,42..ALPX,VX,ZX199605-199710

main83110-32702iSV41,42..ALPX,VX,ZX199710

main83110-32710iSV43..ATM..(ALPX,VX,ZX)199406-199605

main83110-32711iSV43..ATM..(ALPX,VX,ZX)199605-199710

main83110-32712iSV43..ATM..(ALPX,VX,ZX)199710

main83110-32720iSV43..MTM..(ALPX,VX,ZX)199406-199605

main83110-32721iSV43..MTM..(ALPX,VX,ZX)199605-199710

main83110-32722iSV43..MTM..(ALPX,VX,ZX)199710

main83110-32730iCV4#,SV4#199406-199605

main83110-32731iCV4#,SV4#199605

83132CASE, COMBINATION METER

main83132-33450iSV41,42,43..ALPX,VX,ZX199406

main83132-3H410iCV4#,SV4#..ATM199406-199605

main83132-3H430iCV40,SV40,43..MTM199406-199605

main83132-3H440iCV4#,SV4#..ATM199605

main83132-3H450iCV40,SV40,43..MTM199605

83133PLATE, COMBINATION METER, NO.1

main83133-33130iSV41,42,43..ALPX,VX,ZX199406

main83133-3H010iCV4#,SV4#..ATM199406

main83133-3H030iCV40,SV40,43..MTM199406

83138GLASS, SPEEDOMETER

main83138-32230iCV4#,SV4#199406

main83138-33110iSV41,42,43..ALPX,VX,ZX199406

83242TACHOMETER ASSY, ENGINE

main83242-3H350iSV41,42..ALPX,TOU,VX,ZX199406-199605

main83242-3H370iSV41,42,43..ATM199406-199605

main83242-3H390iSV40;SV43..MTM199406-199605

main83242-3H410iCV4#199406

main83242-3H440iSV41,42199605-199710

main83242-3H450iSV43..ATM199605-199710

main83242-3H460iSV40;SV43..MTM199605-199710

main83881-32582iSV41,42199710

main83881-32592iSV43..ATM199710

main83881-32602iSV40;SV43..MTM199710

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-33190iSV41,42,43..ALPX,VX,ZX199406

main83243-3H350iSV4#199406

main83243-3H370iCV4#199406

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-32810iSV41,42199406-199605

main83244-32830iSV40,43199406-199605

main83244-32850iCV40199406-199605

main83244-32870iCV43199501

main83244-32880iSV41,42199605

main83244-32890iSV40,43199605

main83244-33250iSV41,42,43..ALPX,VX,ZX199406

main83244-3H010iCV40199605

83247PLATE, METER CIRCUIT

main83247-33670iSV41,42,43..ALPX,VX,ZX199406-199605

main83247-3P010iSV43..MTM;SV40,41,42199406-199605

main83247-3P030iSV43..ATM199406-199605

main83247-3P050iCV40199406-199605

main83247-3P070iCV43199501-199605

main83247-3P080iSV43..ALPX,VX,ZX199605

main83247-3P090iSV41,42..ALPX,VX,ZX199605

main83247-3P100iSV41,42199605

main83247-3P110iSV43..ATM199605

main83247-3P120iSV40,43..MTM199605

main83247-3P130iSV40..ATM199605

main83247-3P140iCV40..ATM199605

main83247-3P150iCV40..MTM199605

83910CLOCK ASSY

main83910-20720iCV4#,SV4#199605

main83910-32120iCV4#,SV4#199406-199605

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iSV43..ALPX,VX,ZX;CV4#,SV40,41,42..ATM;SV43..ATM..(ETO,LUM)199406

8319487501

main83194-87501

9009900211

main90099-00211

9009900226

main90099-00226

9009900929

main90099-00929

9009900952

main90099-00952

9356755016

main93567-55016

18 parts on this diagram · 3 diagrams in section
