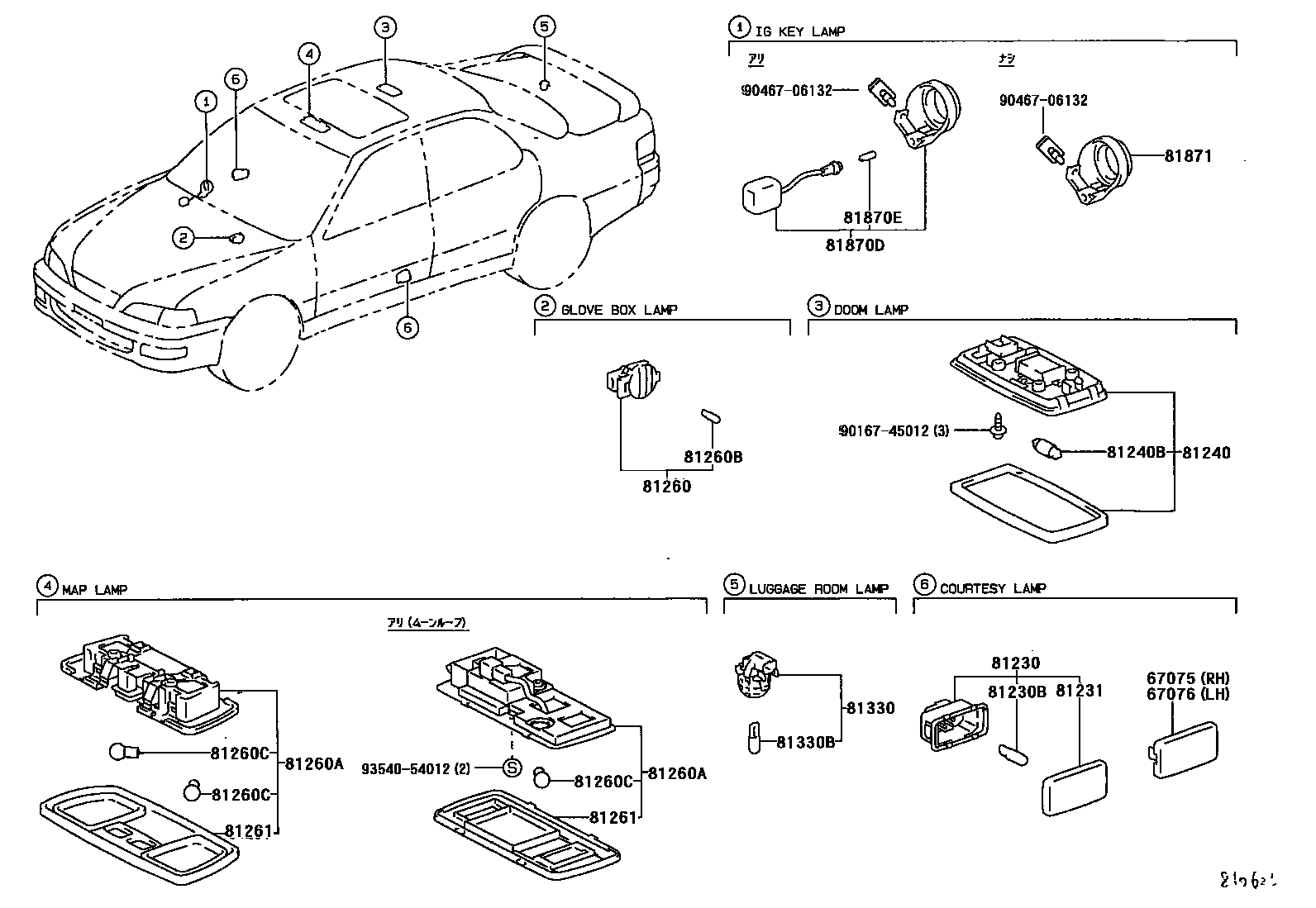

INTERIOR LAMP

67075REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH

main67665-20020iCV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ199406

67076REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH

main67665-20020iCV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ199406

81230LAMP ASSY, COURTESY

main81230-30140iCV4#,SV4#..VX,ZX199406

81230BBULB(FOR COURTESY LAMP)

main90981-11020iCV4#,SV4#..VX,ZX199406

81231LENS, COURTESY LAMP

main81231-50010iCV4#,SV4#..VX,ZX199605

81240LAMP ASSY, ROOM, NO.1

main81240-22120-B0iCV4#,SV4#199406

MD.GRAY,TRIM1#

sub81240-22120

sub81240-51010

main81240-22120-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

MD.OAK,TRIM4#

sub81240-22120

sub81240-51010

81240BBULB, ROOM LAMP, NO.1

main90981-14004iCV4#,SV4#199406

81260LAMP ASSY, GLOVE BOX

main81260-33010iCV4#,SV4#..ALPX,VX,ZX199406-199605

81260ALAMP ASSY, MAP

main81260-22140-B0iCV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX199406-199505

MD.GRAY,TRIM1#

sub81260-22141

main81260-22140-E0iCV4#,SV4#..ETO,LUM,VX,ZX199406-199505

MD.OAK,TRIM4#

sub81260-22141

main81260-22141-B0iCV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX199505

MD.GRAY,TRIM1#

sub81260-22180

main81260-22141-E0iCV4#,SV4#..ETO,LUM,VX,ZX199505

MD.OAK,TRIM4#

sub81260-22180

main81260-32090-B0iCV4#,SV4#..ALPX,TOU,VX,ZX199406

sub81260-32090

main81260-32090-E1iCV4#,SV4#..VX,ZX199406

sub81260-32090

81260BBULB(FOR GLOVE BOX)

main90981-11018iCV4#,SV4#..VX,ZX199406-199605

81260CBULB(FOR MAP LAMP)

main90981-12014iCV4#,SV4#..ALPX,TOU,VX,ZX199406

main90981-12020iCV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX199406

81261LENS AND COVER, MAP LAMP

main81261-32081-B2iCV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX199406

MD.GRAY,TRIM1#

sub81261-32081

main81261-32081-E2iCV4#,SV4#..ETO,LUM,VX,ZX199406

OAK,TRIM4#

sub81261-32081

main81261-32090-B1iCV4#,SV4#..ALPX,TOU,VX,ZX199406

sub81261-32090

main81261-32090-E1iCV4#,SV4#..VX,ZX199406

sub81261-32090

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iCV4#,SV4#199406

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iCV4#,SV4#199406

81870DLAMP ASSY, KEY CYLINDER

main81870-22050iCV4#,SV4#..VX,ZX199406

sub81870-30100

81870EBULB, KEY CYLINDER LAMP

main90981-11014iCV4#,SV4#..VX,ZX199406

81871LENS, KEY ILLUMINATION

main81871-22020iCV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ199406

9016745012

main90167-45012

9046706132

main90467-06132

9354054012

main93540-54012

20 parts on this diagram · 1 diagram in section
