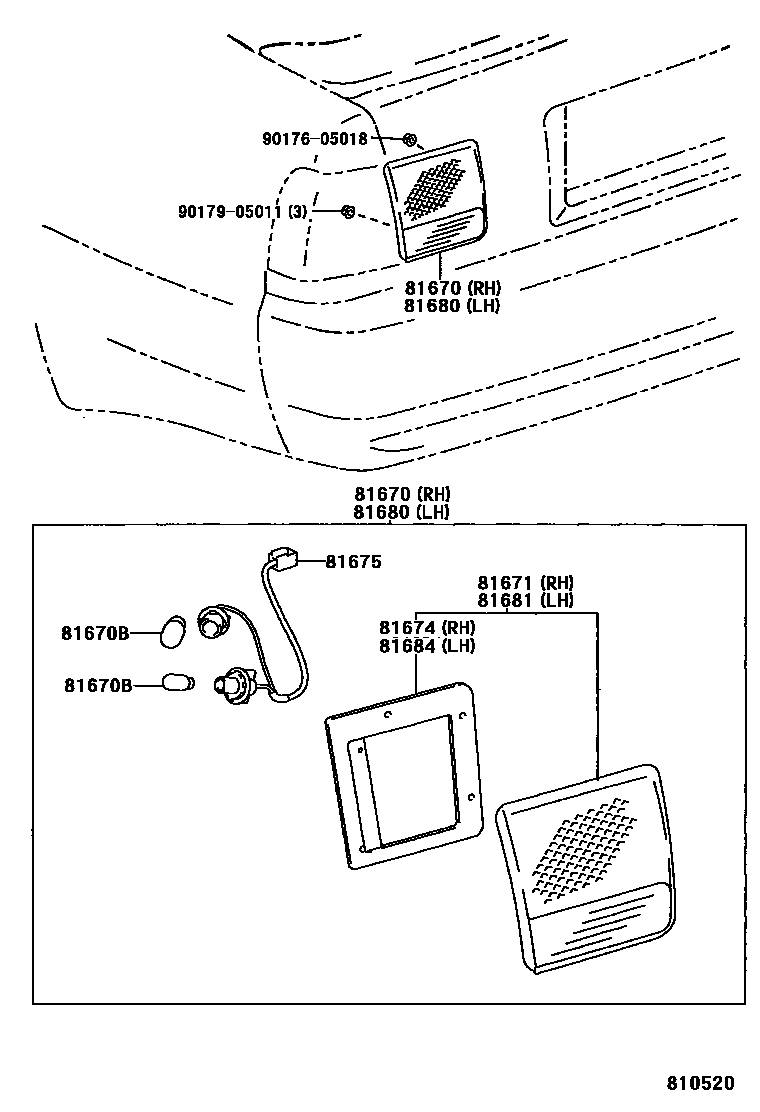

BACK UP LAMP

0001 1 0002 1

81670LAMP ASSY, BACK-UP, RH

main81670-32090iCV4#,SV4#..SED199406-199605

main81670-32100iCV4#,SV4#..CAM199605

main81670-32110iCV4#,SV4#..ALPX199605

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2iCV4#,SV4#..SED199406

main90981-13044×2iCV4#,SV4#..SED199406-199605

main99132-12050×2iCV4#,SV4#..SED199605

81671LENS, BACK-UP LAMP, RH

main81671-32090iCV4#,SV4#..SED199406-199605

main81671-32100iCV4#,SV4#..CAM199605

main81671-32110iCV4#,SV4#..ALPX199605

81674GASKET, BACK-UP LAMP BODY, RH

main81674-32090iCV4#,SV4#..SED199406

81675SOCKET & WIRE, BACK-UP LAMP

main81675-32090×2iCV4#,SV4#..SED199406-199605

main81675-32100×2iCV4#,SV4#..SED199605

81680LAMP ASSY, BACK UP, LH

main81680-32090iCV4#,SV4#..SED199406-199605

main81680-32100iCV4#,SV4#..CAM199605

main81680-32110iCV4#,SV4#..ALPX199605

81681LENS, BACK-UP LAMP, LH

main81681-32090iCV4#,SV4#..SED199406-199605

main81681-32100iCV4#,SV4#..CAM199605

main81681-32110iCV4#,SV4#..ALPX199605

81684GASKET, BACK UP LAMP BODY, LH

main81674-32090iCV4#,SV4#..SED199406

9017605018

main90176-05018

9017905011

main90179-05011

10 parts on this diagram · 2 diagrams in section
