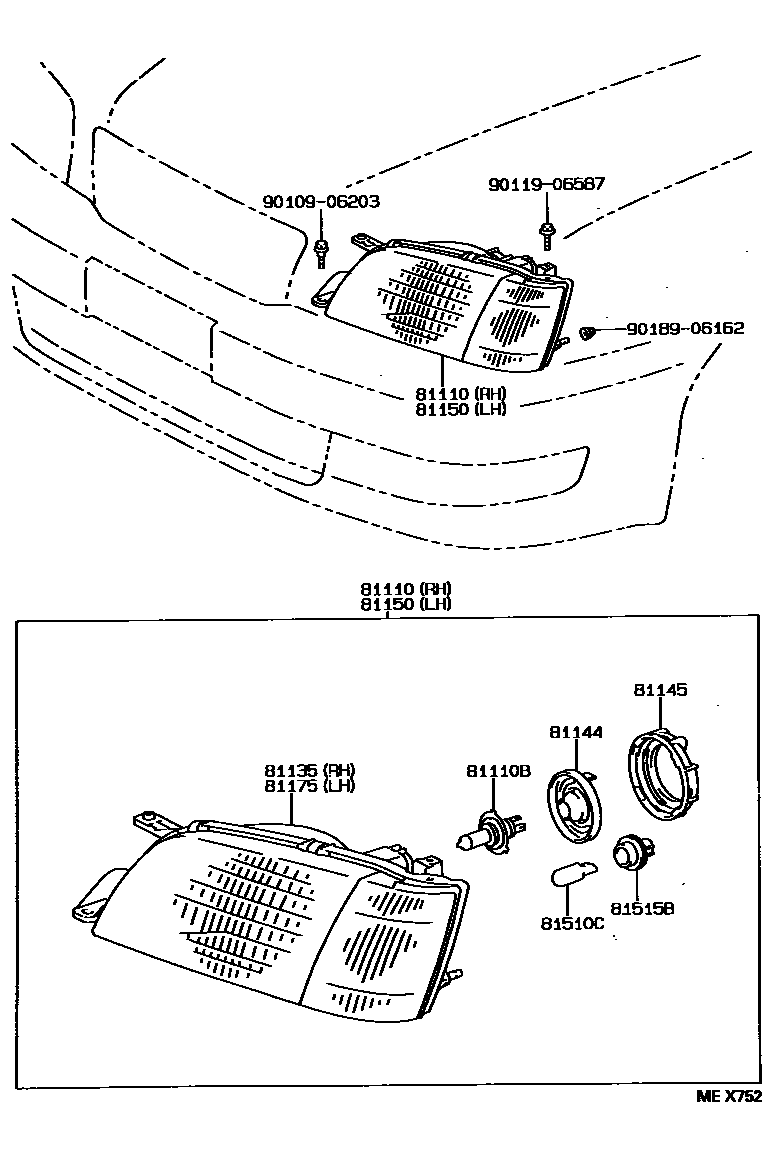

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-32420iCV4#,SV4#..SED199406-199605

main81110-32430iCV4#,SV4#..HT199406

main81110-32440iCV4#,SV4#..SED199605

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22002iCV4#,SV4#..HT199406

main90981-22004iCV4#,SV4#..SED199406

81135UNIT ASSY, HEADLAMP, RH

main81130-32420iCV4#,SV4#..SED199406-199605

main81130-32430iCV4#,SV4#..HT199406

main81130-32440iCV4#,SV4#..SED199605

81144COVER, HEADLAMP, NO.1

main81179-32430iCV4#,SV4#..HT199406

main90075-99058iCV4#,SV4#..SED199406-199605

81145COVER, HEADLAMP, NO.2

main90075-99096iCV4#,SV4#..SED199406-199605

81150HEADLAMP ASSY, LH

main81150-32420iCV4#,SV4#..SED199406-199605

main81150-32430iCV4#,SV4#..HT199406

main81150-32440iCV4#,SV4#..SED199605

81175UNIT ASSY, HEADLAMP, LH

main81170-32420iCV4#,SV4#..SED199406-199605

main81170-32430iCV4#,SV4#..HT199406

main81170-32440iCV4#,SV4#..SED199605

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iCV4#,SV4#..SED199406-199605

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99080iCV4#,SV4#..SED199406-199605

9010906203

main90109-06203

9011906587

main90119-06587

9018906162

main90189-06162

12 parts on this diagram · 3 diagrams in section
