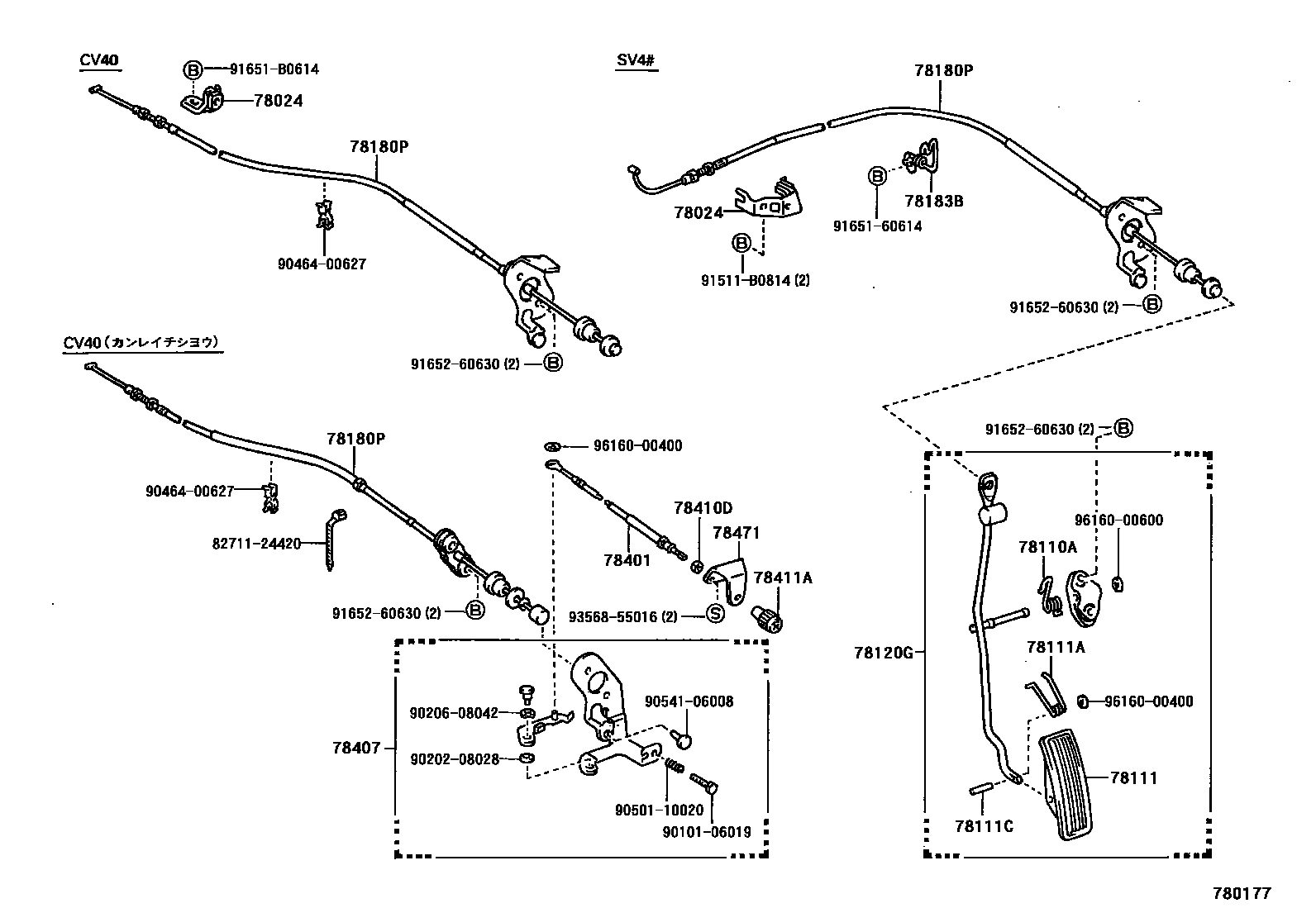

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20140iSV4#199406-199605

main78024-32140iCV4#199406

main78024-44020iSV4#199605

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iCV4#,SV4#..ATM199406

main90508-28004iCV40,SV40,43..MTM199406

78111PEDAL, ACCELERATOR

main78111-12100iCV4#,SV4#199406

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23119iCV4#,SV4#199406

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV4#,SV4#199406

78120GROD ASSY, ACCELERATOR PEDAL

main78120-32120iSV40,43..MTM199406

main78120-32130iSV4#..ATM199406

main78120-32140iCV40..MTM199406

main78120-32150iCV4#..ATM199406

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-32100iCV4#199406-199605

main78180-32101iCV4#199605

main78180-32150iCV40..MTM199406

main78180-32450iSV4#199406-199605

main78180-32460iSV4#199605

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-32030iSV4#199406

78401CABLE SUB-ASSY, THROTTLE CONTROL

main78401-32040iCV40..MTM199406

78407ARM SUB-ASSY, THROTTLE CONTROL

main78407-32020iCV40..MTM199406

78410DNUT, THROTTLE

main90179-11007iCV40..MTM199406

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iCV40..MTM199406

78471BRACKET, THROTTLE CONTROL CABLE

main78471-32010iCV40..MTM199406

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9010106019

main90101-06019

9020208028

main90202-08028

9020608042

main90206-08042

9046400627

main90464-00627

9050110020

main90501-10020

9054106008

main90541-06008

91511B0814

main91511-B0814

9165160614

main91651-60614

91651B0614

main91651-B0614

9165260630

main91652-60630

9356855016

main93568-55016

9616000400

main96160-00400

9616000600

main96160-00600

27 parts on this diagram · 1 diagram in section
