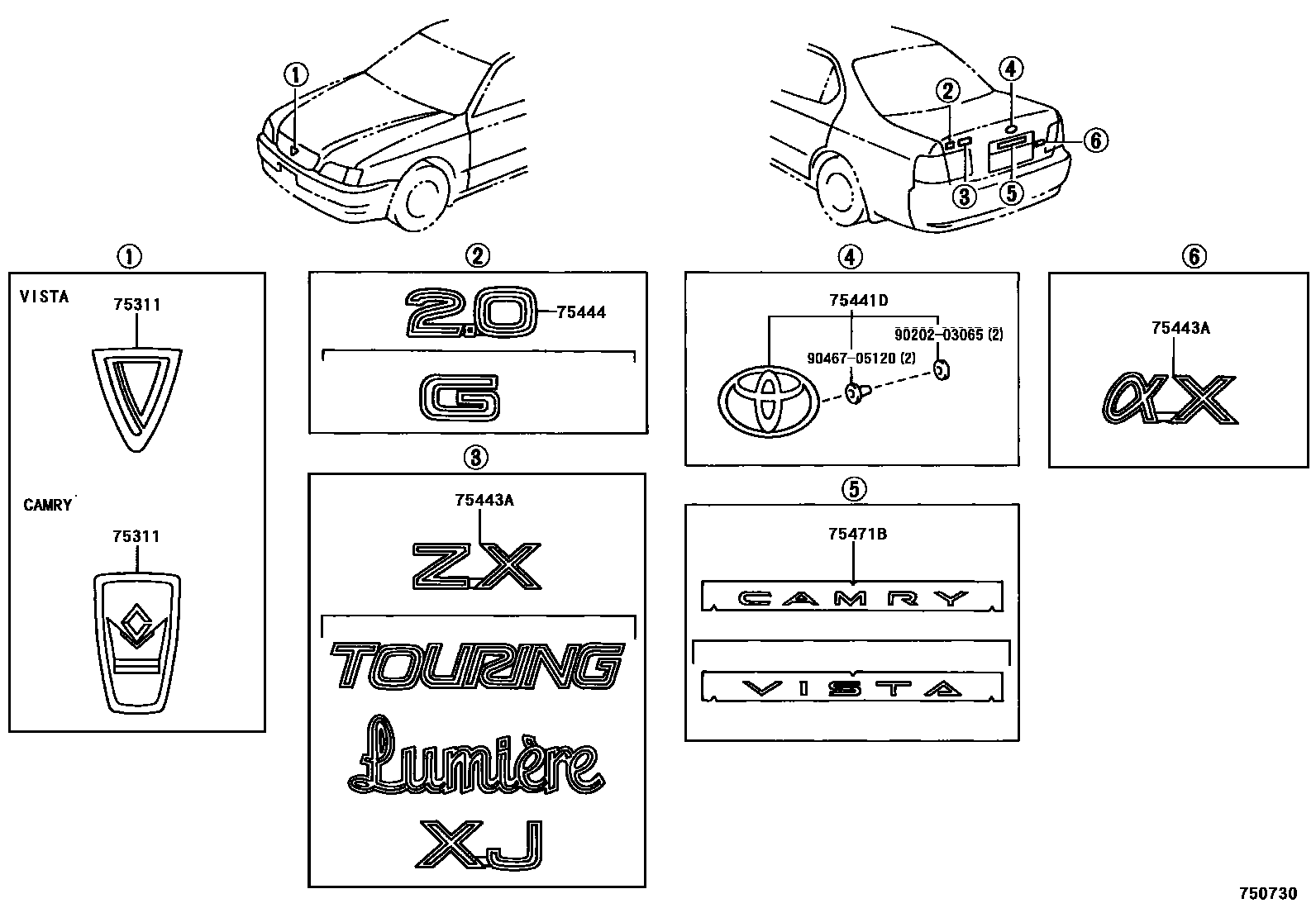

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-32200iCV4#,SV4#..ALPX199406-199605

main75311-32210iCV4#,SV4#..CAM199605-199806

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-32130iCV4#,SV4#..SED199406

main75441-32140iCV4#,SV4#..HT199406

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-32760iCV4#,SV4#..ZX199406

main75443-32770iSV42..SED..TOU199406

main75443-32780iSV40,41,43..LUM199406

main75443-32790iCV4#,SV40..XJ199406

main75443-32800iCV4#,SV4#..ALPX199406

main75443-32810iCV4#,SV40..VJ199406

main75443-32820iSV40,41,43..ETO199406

main75443-32830iSV42..HT..TOU199406

main75443-32840iCV4#,SV4#..VX199406

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-2B340iSV40,43..LUM199612

main75444-32180iSV41,42,43..LUM,ZX199406

main75444-32190iSV41,42,43..ETO,VX199406

75471BPLATE, REAR BODY NAME, NO.1

main75471-32020iCV4#,SV4#..CAM199406

main75471-32030iCV4#,SV4#..ALPX199406

9020203065

main90202-03065

9046705120

main90467-05120

7 parts on this diagram · 2 diagrams in section
