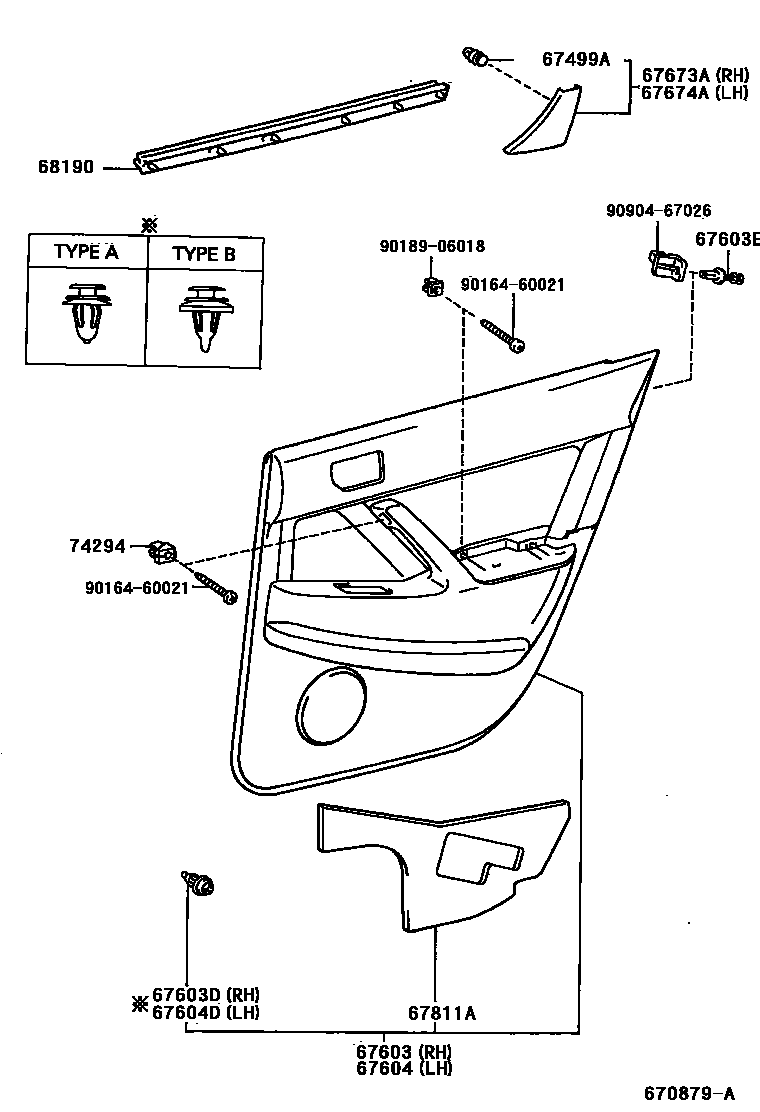

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH

main67771-17020×4iCV4#,SV4#..SED199406-199806

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-3H220-B0iCV4#,SV40,41,43..LUM,XJ199406-199605

SHADOW GRAY,TRIM1#

main67630-3H220-E0iCV4#,SV40,41,43..LUM,XJ199406-199605

OAK,TRIM4#

main67630-3H240-B0iCV4#,SV4#..SED..(ALPX,TOU)199406-199605

SHADOW GRAY,TRIM1#

main67630-3H250-B0iSV40,43..LUM199504-199605

main67630-3H250-E0iCV4#,SV4#..ZX199406-199605

OAK,TRIM4#

main67630-3H260-E0iSV40,43..LUM199504-199605

main67630-3H270-B0iCV4#,SV40,41,43..ETO,VJ199406-199605

SHADOW GRAY,TRIM1#

main67630-3H270-E0iCV4#,SV40,41,43..ETO,VJ199406-199605

OAK,TRIM4#

main67630-3H280-B0iSV42..HT..TOU199406-199605

SHADOW GRAY,TRIM1#

main67630-3H290-B0iSV40,43..ETO199504-199605

main67630-3H290-E0iCV4#,SV4#..VX199406-199605

OAK,TRIM4#

main67630-3H300-E0iSV40,43..ETO199504-199605

main67630-3H310-B0iCV4#,SV40,41,43..LUM,XJ199605

SHADOW GRAY,TRIM1#

main67630-3H310-E0iCV4#,SV40,41,43..LUM,XJ199605

OAK,TRIM4#

main67630-3H320-B0iCV4#,SV4#..SED..(ALPX,TOU)199605

SHADOW GRAY,TRIM1#

main67630-3H340-B0iCV4#,SV4#..ZX199605

SHADOW GRAY,TRIM1#

main67630-3H340-E0iSV40,43..LUM199612

main67630-3H360-B0iCV4#,SV40,41,43..ETO,VJ199605

SHADOW GRAY,TRIM1#

main67630-3H360-E0iCV4#,SV40,41,43..ETO,VJ199605

OAK,TRIM4#

main67630-3H370-B0iSV42..HT..TOU199605

SHADOW GRAY,TRIM1#

main67630-3H380-B0iCV4#,SV4#..VX199605

SHADOW GRAY,TRIM1#

main67630-3H380-E0iCV4#,SV4#..VX199605

OAK,TRIM4#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iCV4#,SV4#..SED199406

main67771-32140×3iCV4#,SV4#..SED199406

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-E0×2iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

main90467-07066-P0×2iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-3H220-B0iCV4#,SV40,41,43..LUM,XJ199406-199605

SHADOW GRAY,TRIM1#

main67640-3H220-E0iCV4#,SV40,41,43..LUM,XJ199406-199605

OAK,TRIM4#

main67640-3H240-B0iCV4#,SV4#..SED..(ALPX,TOU)199406-199605

SHADOW GRAY,TRIM1#

main67640-3H250-B0iSV40,43..LUM199504-199605

main67640-3H250-E0iCV4#,SV4#..ZX199406-199605

OAK,TRIM4#

main67640-3H260-E0iSV40,43..LUM199504-199605

main67640-3H270-B0iCV4#,SV40,41,43..ETO,VJ199406-199605

SHADOW GRAY,TRIM1#

main67640-3H270-E0iCV4#,SV40,41,43..ETO,VJ199406-199605

OAK,TRIM4#

main67640-3H280-B0iSV42..HT..TOU199406-199605

SHADOW GRAY,TRIM1#

main67640-3H290-B0iSV40,43..ETO199504-199605

main67640-3H290-E0iCV4#,SV4#..VX199406-199605

OAK,TRIM4#

main67640-3H300-E0iSV40,43..ETO199504-199605

main67640-3H310-B0iCV4#,SV40,41,43..LUM,XJ199605

SHADOW GRAY,TRIM1#

main67640-3H310-E0iCV4#,SV40,41,43..LUM,XJ199605

OAK,TRIM4#

main67640-3H320-B0iCV4#,SV4#..SED..(ALPX,TOU)199605

SHADOW GRAY,TRIM1#

main67640-3H340-B0iSV40,43..LUM199612

main67640-3H340-E0iSV40,43..LUM199612

main67640-3H360-B0iCV4#,SV40,41,43..ETO,VJ199605

SHADOW GRAY,TRIM1#

main67640-3H360-E0iCV4#,SV40,41,43..ETO,VJ199605

OAK,TRIM4#

main67640-3H370-B0iSV42..HT..TOU199605

SHADOW GRAY,TRIM1#

main67640-3H380-B0iCV4#,SV4#..VX199605

SHADOW GRAY,TRIM1#

main67640-3H380-E0iSV40,43..ETO199612-199806

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iCV4#,SV4#..SED199406

main67771-32140×3iCV4#,SV4#..SED199406

67673AGARNISH, REAR DOOR FRAME, RH

main67673-32010iCV4#,SV4#..SED199406

67674AGARNISH, REAR DOOR FRAME, LH

main67674-32010iCV4#,SV4#..SED199406

67811APAD, REAR DOOR SILENCER

main67812-32030×2iCV4#,SV4#199406-199806

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-32010×2iCV4#,SV4#..SED199406

main68190-32070iCV4#,SV4#..HT199406

main68240-32050iCV4#,SV4#..HT199406

74294PLATE, REAR DOOR ARMREST, NO.2

main74294-32010×2iCV4#,SV4#199406

9016460021

main90164-60021

9018906018

main90189-06018

9090467026

main90904-67026

14 parts on this diagram · 3 diagrams in section
