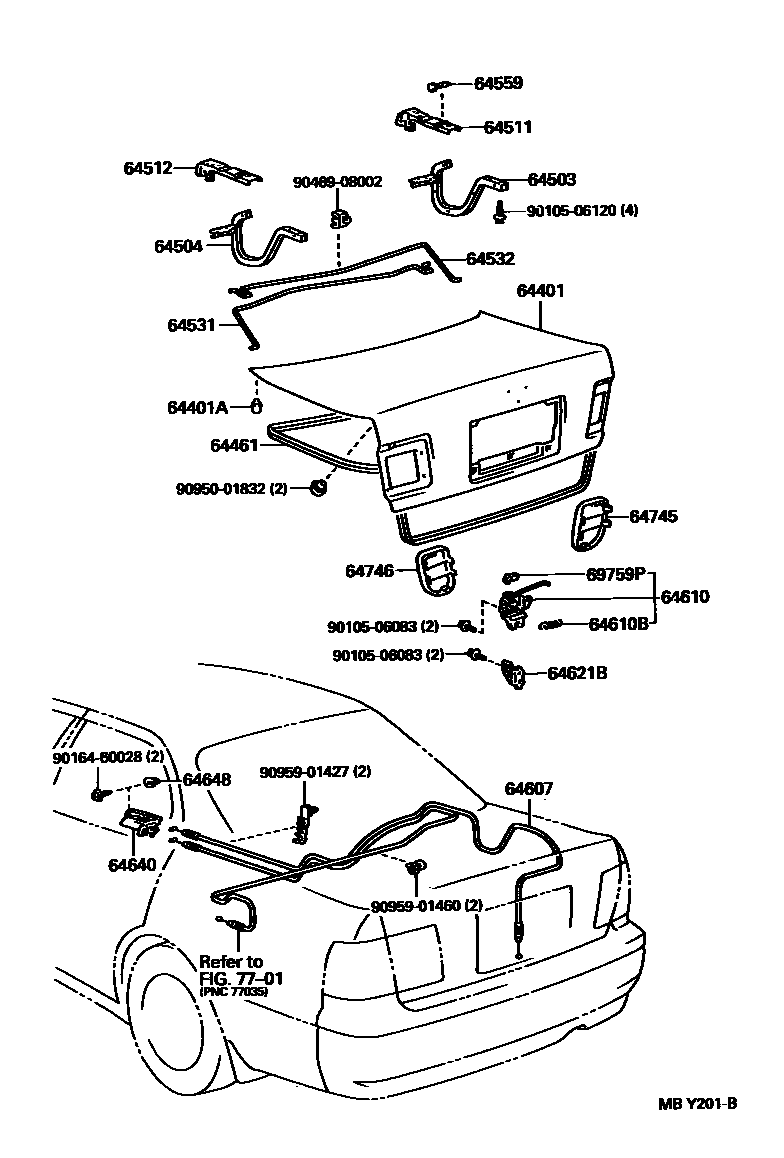

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-32690iCV4#,SV4#..ALPX,LUM,XJ,ZX199406-199605

sub64401-32691

main64401-32691iCV4#,SV4#..ALPX,LUM,XJ,ZX199605

main64401-32700iCV4#,SV4#..ALPX,ZX199406-199605

sub64401-32701

main64401-32701iCV4#,SV4#..ALPX,ZX199605

main64401-32710iCV4#,SV4#..ETO,VJ,VX199406

main64401-32720iSV42..HT..TOU199406

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06054iCV4#,SV4#199505

main90541-06059iCV4#,SV4#199406-199505

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-32100iCV4#,SV4#..SED199406

main64461-32110iCV4#,SV4#..HT199406

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-32040iCV4#,SV4#..SED199406-199504

sub64503-32041

main64503-32041iCV4#,SV4#..SED199504

main64503-32050iCV4#,SV4#..HT199406-199504

sub64503-32051

main64503-32051iCV4#,SV4#..HT199504

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-32030iCV4#,SV4#..SED199406-199504

sub64504-32031

main64504-32031iCV4#,SV4#..SED199504

sub64503-32041

main64504-32040iCV4#,SV4#..HT199406-199504

sub64504-32041

main64504-32041iCV4#,SV4#..HT199504

sub64503-32051

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-32070iCV4#,SV4#..SED199406

main64511-32080iCV4#,SV4#..HT199406

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-32070iCV4#,SV4#..SED199406

main64512-32080iCV4#,SV4#..HT199406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-32150iCV4#,SV4#..ALPX,LUM,XJ,ZX199406

main64531-32160iSV42..SED..TOU199406

main64531-32170iCV4#,SV4#..ETO,VJ,VX199406

main64531-32180iSV42..HT..TOU199406

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-32150iCV4#,SV4#..ALPX,LUM,XJ,ZX199406

main64532-32160iSV42..SED..TOU199406

main64532-32170iCV4#,SV4#..ETO,VJ,VX199406

main64532-32180iSV42..HT..TOU199406

64559PIN, LUGGAGE DOOR HINGE

main64559-32020iCV4#,SV4#199406

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-32250iCV4#,SV4#..SED199406

main64607-32260iCV4#,SV4#..HT199406

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-32080iCV4#,SV4#..SED199406

main64610-32100iCV4#,SV4#..HT199406

64610BSPRING, TENSION(FOR LOCK)

main90506-06009iCV4#,SV4#..SED199406

main90506-06010iCV4#,SV4#..HT199406

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12060iCV4#,SV4#199406

sub64621-12070

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-32090-B2iCV4#,SV4#199408-199605

SHADOW GRAY,TRIM1#

sub64640-32090

main64640-32090-B4iCV4#,SV4#199605

MD.GRAY,TRIM1#

sub64640-32090

main64640-32090-E1iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199408-199605

OAK,TRIM4#

sub64640-32090

main64640-32090-E3iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199605

MD.OAK,TRIM4#

sub64640-32090

main64640-32120-B0iCV40,SV4#199406-199408

SHADOW GRAY,TRIM1#

sub64640-32090

main64640-32120-E0iCV40,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406-199408

OAK,TRIM4#

sub64640-32090

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32020iCV4#,SV4#199406

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-32030iCV4#,SV4#..SED199406

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-32030iCV4#,SV4#..SED199406

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20110iCV4#,SV4#199406

7701

9010506083

main90105-06083

9010506120

main90105-06120

9016460028

main90164-60028

9046908002

main90469-08002

9095001832

main90950-01832

9095901427

main90959-01427

9095901460

main90959-01460

27 parts on this diagram · 2 diagrams in section
