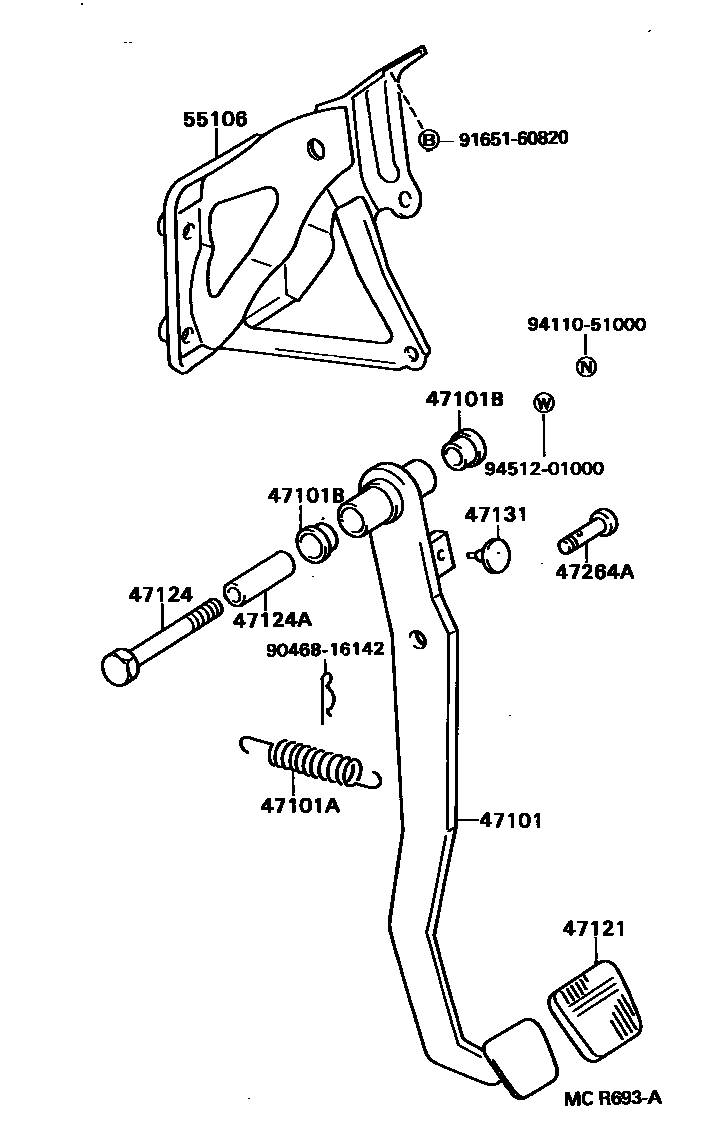

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32170iCV40,SV40,43..MTM199406

main47101-32180iCV4#,SV4#..ATM199406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14032iCV4#,SV4#199406

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iCV4#,SV4#199406

47121PAD, BRAKE PEDAL

main31321-14020iCV40,SV40,43..MTM199406

main47121-14010iCV4#,SV4#..ATM199406

47124SHAFT, BRAKE PEDAL

main90101-10039iCV4#,SV4#199406-199605

main90101-10273iCV4#,SV4#199605

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iCV4#,SV4#199406

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCV4#,SV4#199406

47264APIN(FOR PUSH ROD)

main90249-08051iCV4#,SV4#199408

main90249-08256iCV40,SV4#199407-199408

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-32060iCV4#,SV4#199406-199605

main55106-32070iCV4#,SV4#199605

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
