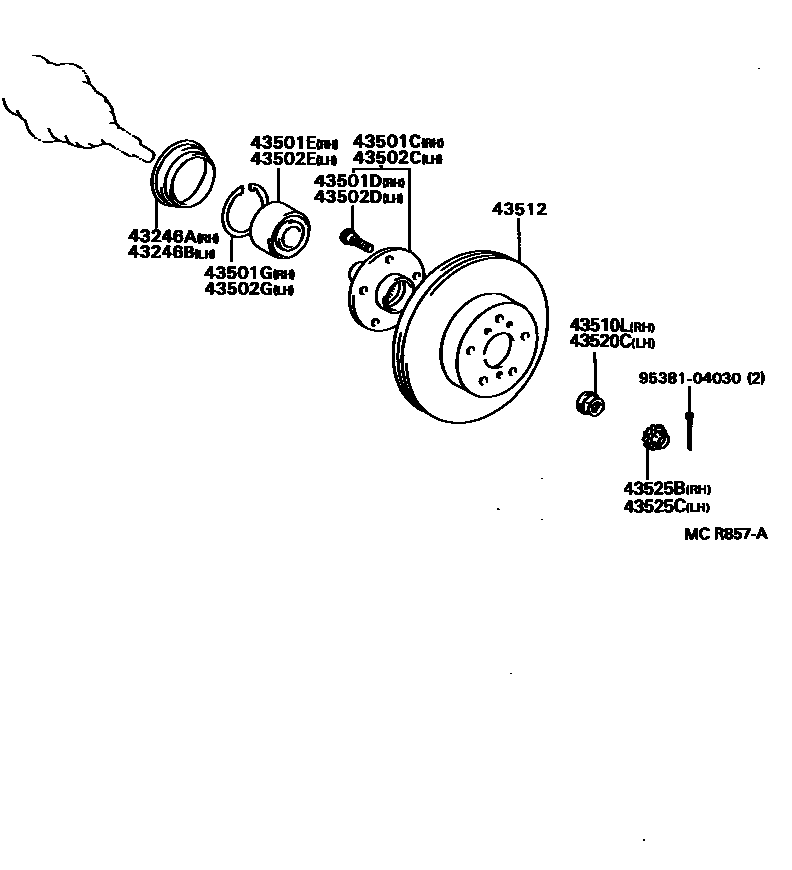

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-17020iCV4#,SV4#199406-199605

main43246-32020iCV4#,SV4#199406-199605

main43246-32020iCV4#,SV4#199605

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-17020iCV4#,SV40,41,43199406-199605

main43246-32020iSV42199406-199605

main43246-32020iCV4#,SV4#199605

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32070iCV4#,SV4#199406

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iCV4#,SV4#199406

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iCV4#,SV4#199406

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iCV4#,SV4#199406

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32070iCV4#,SV4#199406

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iCV4#,SV4#199406

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iCV4#,SV4#199406

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iCV4#,SV4#199406

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iCV43,SV4#199709

main90179-22020iCV4#,SV4#199406-199709

43512DISC, FRONT

main43512-32270iCV40,SV40199406

sub43512-32280

main43512-32280iCV43,SV41,42,43199406

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iCV43,SV4#199709

main90179-22020iCV4#,SV4#199406-199709

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iCV4#,SV4#199406

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iCV4#,SV4#199406

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
