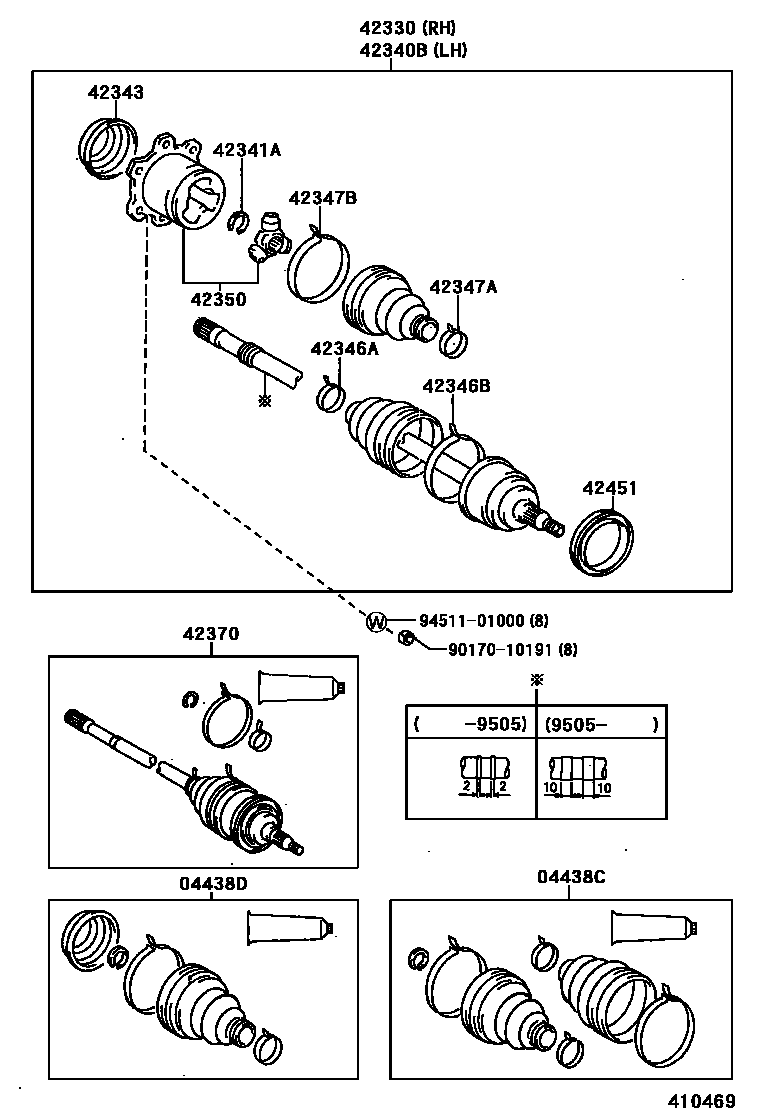

REAR AXLE SHAFT & HUB
04438CBOOT KIT, REAR DRIVE SHAFT
42330SHAFT ASSY, REAR DRIVE, RH
sub42340-32070
sub42340-32080
sub42340-20080
sub42340-20090
sub42340-32082
42340BSHAFT ASSY, REAR DRIVE, LH
sub42340-32070
sub42340-32080
sub42340-20080
sub42340-20090
sub42340-32082
42341ARING, SNAP (FOR REAR DRIVE SHAFT)
42343COVER, OUTBOARD JOINT END
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42350JOINT ASSY, REAR DRIVE SHAFT OUTBOARD
sub42360-22040
42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT
sub42370-39095
sub42370-39105
sub42370-29315
sub42370-29325
sub42370-39265
42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1
9017010191
main90170-10191
9451101000
main94511-01000
15 parts on this diagram · 4 diagrams in section
