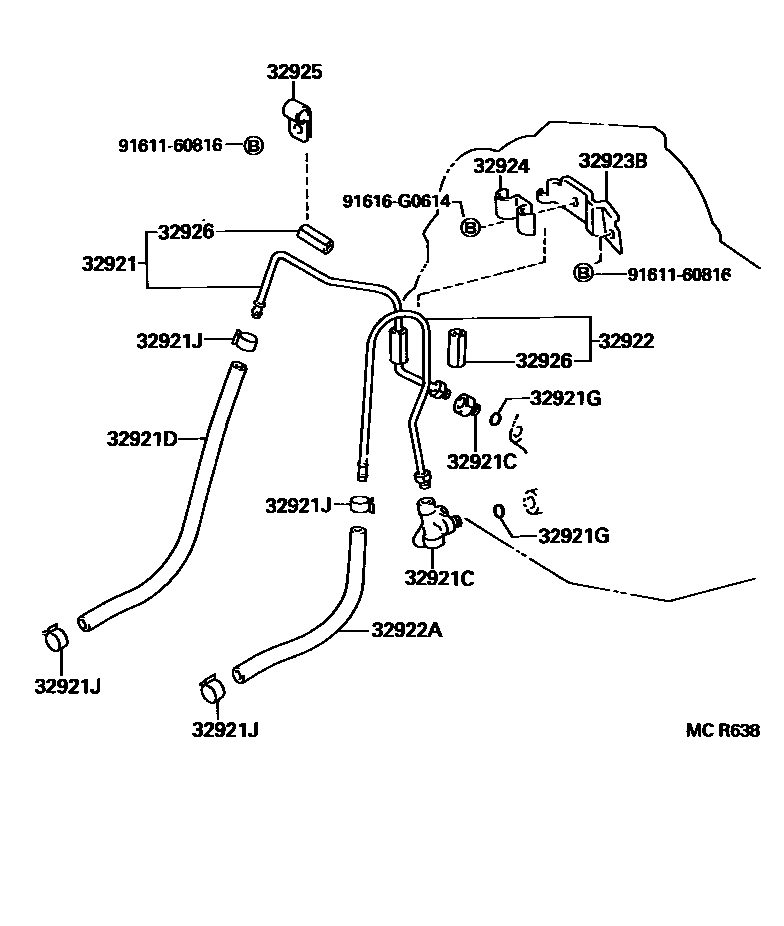

OIL COOLER & TUBE (ATM)

0001 1A140L 0002 1A140L,A140E 0003 1A540H 0004 1A540H

32921TUBE, OIL COOLER INLET, NO.1

main32921-32140iSV43..ATM199406

main32921-32160iSV40,41,42..ATM199406

main32921-32170iCV40..ATM199406

main32921-32190iCV43199501

32921CUNION(FOR OIL COOLER TUBE)

main32901-32060iCV43,SV43..ATM199406

OUTLET

main32901-32070iCV40,SV40,41,42..ATM199406

OUTLET

main32918-32010iCV43,SV43..ATM199406

INLET

main90404-14007iCV40,SV40,41,42..ATM199406

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15057iCV40..ATM199406-199501

sub32941-22310

main90445-15061iSV40,41,42..ATM199406

main90445-15069iCV40..ATM199501

sub32941-22310

main90445-17096iSV43..ATM199406

main90445-17097iCV43199501

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCV4#,SV4#..ATM199406

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iCV40,SV40,41,42..ATM199406

sub96135-51300

main90467-16013×4iCV43,SV43..ATM199406

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32090iCV40,SV40,41,42..ATM199406

main32922-32120iCV43,SV43..ATM199406

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15048iCV40,SV40,41,42..ATM199406

main90445-17106iCV43,SV43..ATM199406

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iCV40,SV40,41,42..ATM199406

main32923-32060iSV43..ATM199406

main32923-32070iCV43199501

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12071×2iCV43,SV43..ATM199406

main90462-12085iCV40,SV40,41,42..ATM199406

32925CLAMP, OIL COOLER TUBE, NO.3

main90461-06207iCV40..ATM199406

sub96221-24914

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iSV40,41,42..ATM199406

main32926-20010iCV43,SV43..ATM199406

main32926-30020iCV43,SV43..ATM199406

9161160816

main91611-60816

91616G0614

main91616-G0614

13 parts on this diagram · 4 diagrams in section
