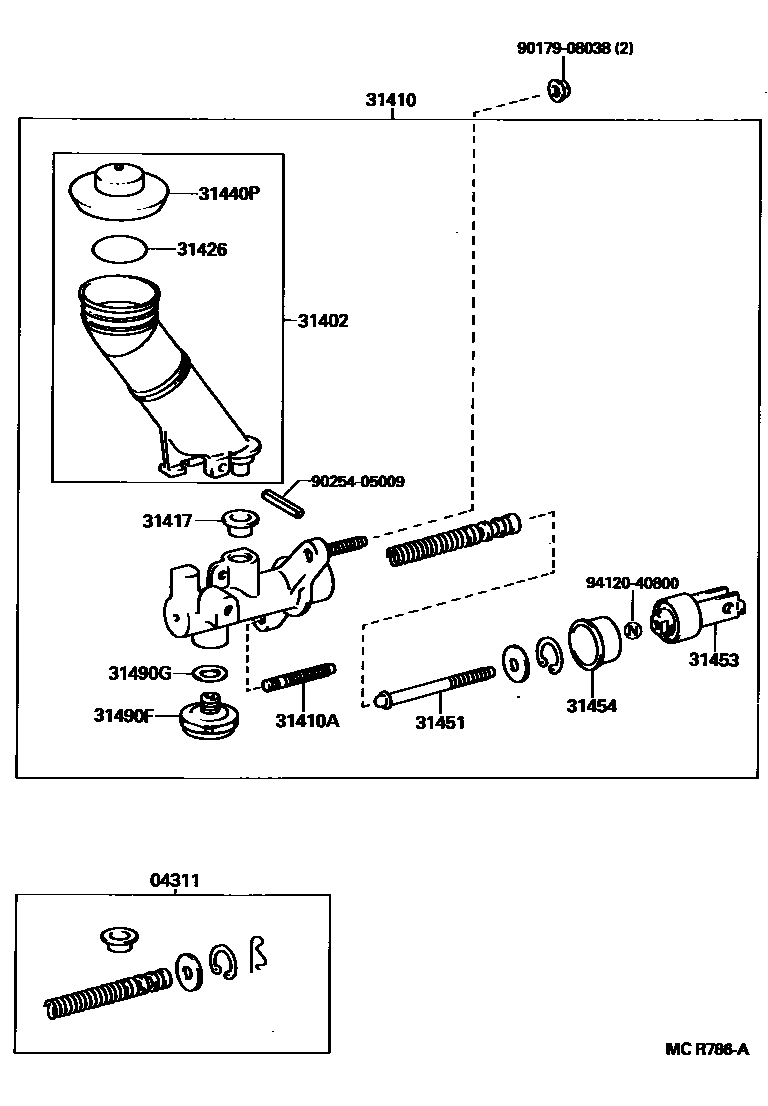

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iCV40,SV40,43..MTM199406

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20080iSV40..MTM199406

sub31402-20180

main31402-20090iSV43..MTM199406

sub31402-20180

main31402-20120iCV40..MTM199406

sub31402-20180

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32140iSV40..MTM199406

main31410-32150iSV43..MTM199406

main31410-32160iCV40..MTM199406

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357×2iCV40,SV40,43..MTM199406

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iCV40,SV40,43..MTM199406

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iCV40,SV40,43..MTM199406

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCV40,SV40,43..MTM199406

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30200iCV40,SV43..MTM199406

main31451-32080iSV40..MTM199406

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iCV40,SV43..MTM199406

main31453-35010iSV40..MTM199406

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iCV40,SV40,43..MTM199406

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iCV40..MTM199406

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iCV40..MTM199406

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
