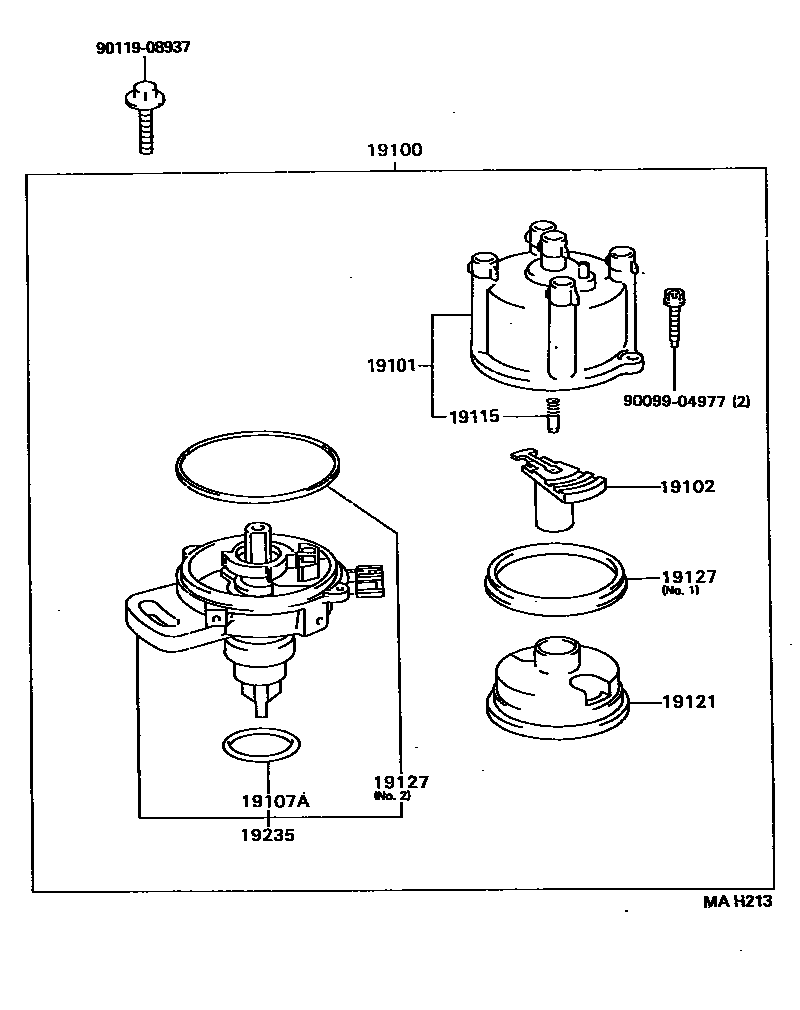

DISTRIBUTOR

0001 1 0002 1��(������ ����-�)

19100DISTRIBUTOR ASSY

main19050-74060i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

main19100-74081i3SFE,4SFE..SV4#199406-199605

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74150i3SFE,4SFE..SV4#199406-199605

main19101-74180i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE,4SFE..SV4#199406-199605

sub19102-11370

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i3SFE,4SFE..SV4#199406-199508

main90099-14127i3SFE..SV41,42..ALPX,TOU,VX,ZX199409-199508

main90099-14127i3SFE,4SFE..SV4#199508-199605

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

main19115-88280i3SFE,4SFE..SV4#199406-199605

19121COVER, DUST PROOF

main19121-11080i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

main19121-74010i3SFE,4SFE..SV4#199406-199605

main19121-74040i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

19127PACKING, DUST PROOF

main19127-74010i3SFE,4SFE..SV4#199406-199605

main19127-74040i3SFE,4SFE..SV4#199406-199605

main19127-74050i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

19235HOUSING, DISTRIBUTOR

main19235-74160i3SFE,4SFE..SV4#199406-199605

main19235-74220i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

9009904977

main90099-04977

9011908937

main90119-08937

10 parts on this diagram · 2 diagrams in section
