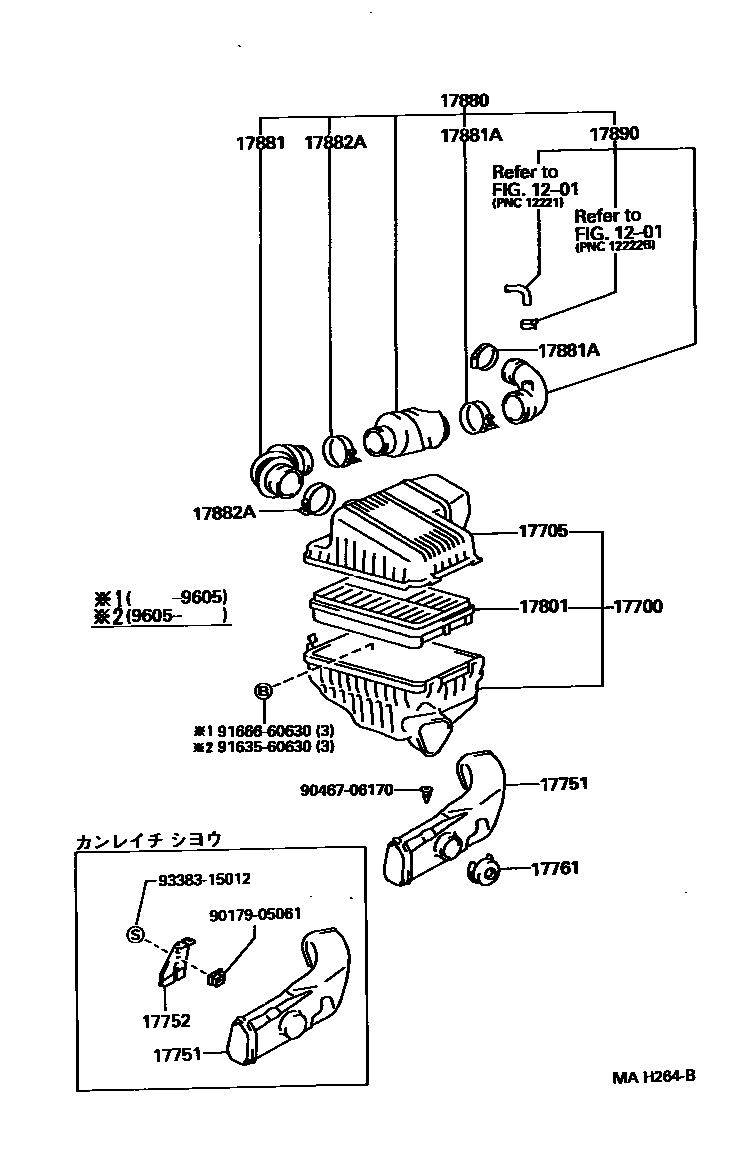

AIR CLEANER

0001 1 0002 1 0003 1

1201

17700CLEANER ASSY, AIR

main17700-64330i3CT..CV4#199406

main17700-74550i3SFE,4SFE..SV4#199406

17705CAP SUB-ASSY, AIR CLEANER

main17705-64220i3CT..CV4#199406

main17705-74390i3SFE,4SFE..SV4#199406

17751INLET, AIR CLEANER, NO.1

main17751-64040i3CT..CV4#199605

sub17751-74050

main17751-74050i3SFE,4SFE..SV4#199406

17752INLET, AIR CLEANER, NO.2

main17752-64010i3CT..CV4#199605

17761CAP, AIR CLEANER INLET

main17761-64010i3CT..CV4#199406

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64060i3CT..CV4#199406

sub17801-64070

main17801-74020i3SFE,4SFE..SV4#199406

17880HOSE ASSY, AIR CLEANER

main17880-64290i3CT..CV4#199406

17881HOSE, AIR CLEANER, NO.1

main17881-64280i3CT..CV4#199406

main17881-74610i3SFE,4SFE..SV4#199406-199605

main17881-74620i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

main17881-74770i3SFE,4SFE..SV4#199605

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-57002i3CT..CV4#199406

TURBOCHARGER SIDE

main90460-73001i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

sub90460-73011

main96111-10710i3SFE..SV41,42..ALPX,TOU,VX,ZX199406-199605

main96111-10710i3SFE,4SFE..SV4#199406

main96111-10730i3CT..CV4#199406

AIR CLEANER SIDE

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10630i3SFE,4SFE..SV4#199406

main96111-10730i3CT..CV4#199406

17890HOSE ASSY, AIR CLEANER, NO.2

main17890-64050i3CT..CV4#199406

9017905061

main90179-05061

9046706170

main90467-06170

9163560630

main91635-60630

9166660630

main91666-60630

9338315012

main93383-15012

17 parts on this diagram · 3 diagrams in section
