11011WASHER SET, CRANKSHAFT THRUST

main11011-64010i199406

main11011-74020i199406-199806

sub11011-74030

main11012-64010i199406

main11013-64010i199406

11702BEARING SET, CRANKSHAFT

main11704-63021i199406

sub11704-63022

main11704-64040i199406-199412

sub11704-64070

main11704-64070i199412-199509

sub11704-64071

main11704-64071i199509-199806

sub11704-27021

11711BEARING, CRANKSHAFT

main11071-63020-01i199406

sub11071-63021

main11071-63020-02i199406

sub11071-63021

main11071-63020-03i199406

sub11071-63021

main11071-63020-04i199406

sub11071-63021

main11071-63020-05i199406

sub11071-63021

main11701-63021-01i199406

MARK 1,NO.1,2,4,5

sub11701-63022

main11701-63021-02i199406

MARK 2,NO.1,2,4,5

sub11701-63022

main11701-63021-03i199406

MARK 3,NO.1,2,4,5

sub11701-63022

main11701-63021-04i199406

MARK 4,NO.1,2,4,5

sub11701-63022

main11701-63021-05i199406

MARK 5,NO.1,2,4,5

sub11701-63022

main11701-64040-01i199406-199412

MARK 1

sub11701-64070

main11701-64040-02i199406-199412

MARK 2

sub11701-64070

main11701-64040-03i199406-199412

MARK 3

sub11701-64070

main11701-64070-01i199412-199509

MARK 1

sub11701-64071

main11701-64070-02i199412-199509

MARK 2

sub11701-64071

main11701-64070-03i199412-199509

MARK 3

sub11701-64071

main11701-64071-01i199509

MARK 1

sub11701-27011

main11701-64071-02i199509

MARK 2

sub11701-27011

main11701-64071-03i199509

MARK 3

sub11701-27011

main11701-64071-04i199509

MARK 4

sub11701-27011

main11701-64071-05i199509

MARK 5

sub11701-27011

13011RING SET, PISTON

main13011-64212i199406

sub13011-64213

main13011-74072i199406-199605

main13011-74121i199406

main13011-74360i199605-199609

sub13011-74361

main13011-74361i199609

main13013-64212i199406

sub13013-64213

main13013-74072i199406-199605

main13013-74121i199406

main13013-74360i199605-199609

sub13013-74361

main13013-74361i199609

main13014-74121i199406

13041BEARING, CONNECTING ROD

main13041-64041-01i199406-199412

MARK 1

sub13041-64070

main13041-64041-02i199406-199412

MARK 2

sub13041-64070

main13041-64041-03i199406-199412

MARK 3

sub13041-64070

main13041-64070-01i199412-199509

MARK 1

sub13041-64071

main13041-64070-02i199412-199509

MARK 2

sub13041-64071

main13041-64070-03i199412-199509

MARK 3

sub13041-64071

main13041-64071-01i199509-199603

MARK 1

main13041-64071-02i199509-199603

MARK 2

main13041-64071-03i199509-199603

MARK 3

main13041-64071-04i199509-199603

MARK 4

main13041-64071-05i199509-199603

MARK 5

main13041-64072-01i199603

MARK 1

sub13041-64073

main13041-64072-02i199603

MARK 2

sub13041-64073

main13041-64072-03i199603

MARK 3

sub13041-64073

main13041-64072-04i199603

MARK 4

sub13041-64073

main13041-64072-05i199603

MARK 5

sub13041-64073

main13041-74030-01i199406-199608

MARK 1

sub13041-74040

main13041-74030-02i199406-199608

MARK 2

sub13041-74040

main13041-74030-03i199406-199608

MARK 3

sub13041-74040

main13041-74040-01i199608

MARK 1

sub13041-74041

main13041-74040-02i199608

MARK 2

sub13041-74041

main13041-74040-03i199608

MARK 3

sub13041-74041

13101PISTON SUB-ASSY, W/PIN

main13101-64160-01i199506

main13101-64160-02i199506

main13101-64160-03i199506

main13101-64170-01i199406-199506

sub13101-64151

main13101-64170-02i199406-199506

sub13101-64151

main13101-64170-03i199406-199506

sub13101-64151

main13101-74100-01i199406-199605

main13101-74100-02i199406-199605

main13101-74100-03i199406-199605

main13101-74160-01i199406

main13101-74160-02i199406

main13101-74160-03i199406

main13101-74191-01i199605

main13101-74191-02i199605

main13101-74191-03i199605

main13103-64160i199506

main13103-64170i199406-199506

sub13103-64151

main13103-74100i199406-199605

main13103-74160i199406

main13103-74191i199605

main13104-74160i199406

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25004i199406-199605

sub90520-22025

main90521-29003i199406

13201ROD SUB-ASSY, CONNECTING

main13201-64031i199509-199603

main13201-64032i199603

main13201-69076i199406-199509

main13201-79146i199406-199608

sub13201-79215

main13201-79215i199608

main13201-79305i199605-199608

sub13201-79306

main13201-79306i199608-199705

sub13201-79405

main13201-79405i199705

sub13201-79555

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73102i199406-199610

sub90999-73138

main90999-73112i199406-199605

main90999-73138i199610

13202BEARING SET, CONNECTING ROD

main13204-64041i199406-199412

sub13204-64070

main13204-64070i199412-199509

sub13204-64071

main13204-64071i199509-199603

main13204-64072i199603-199806

sub13204-64073

main13204-74030i199406-199608

sub13204-74040

main13204-74040i199608

sub13204-74041

13265BOLT, CONNECTING ROD

main13265-49015i199406-199501

main13265-49045i199501

main13265-62030i199406

sub13265-74030

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08118i199406

main90179-10042i199406

13405FLYWHEEL SUB-ASSY

main13405-64060i199406

main13405-74051i199406

main13405-74120i199406

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i199406

13405BBOLT, FLYWHEEL SETTING

main90105-10071i199406

13411CRANKSHAFT

main13411-64903i199406-199504

sub13411-64905

main13411-64905i199504-199509

sub13411-64913

sub90105-16064

sub90560-16025

main13411-64907i199509

sub13411-64912

sub90105-16064

sub90560-16025

main13411-74908i199406

13453GEAR, FLYWHEEL RING

main13453-64011i199406

main13453-74011i199406

13471PULLEY, CRANKSHAFT

main13408-64120i199406

main13408-74041i199406

sub13408-74031

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i199406

main95161-30516i199406

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90201-14030i199406

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14089i199406

main90119-14015i199406

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i199406

main95161-30622i199406

13521PPULLEY, CRANKSHAFT TIMING

main13521-64011i199406

main13521-74020i199406-199605

sub13521-74040

main13521-74040i199605

13566AGUIDE, TIMING BELT

main13566-64011i199406

main13567-74010i199406

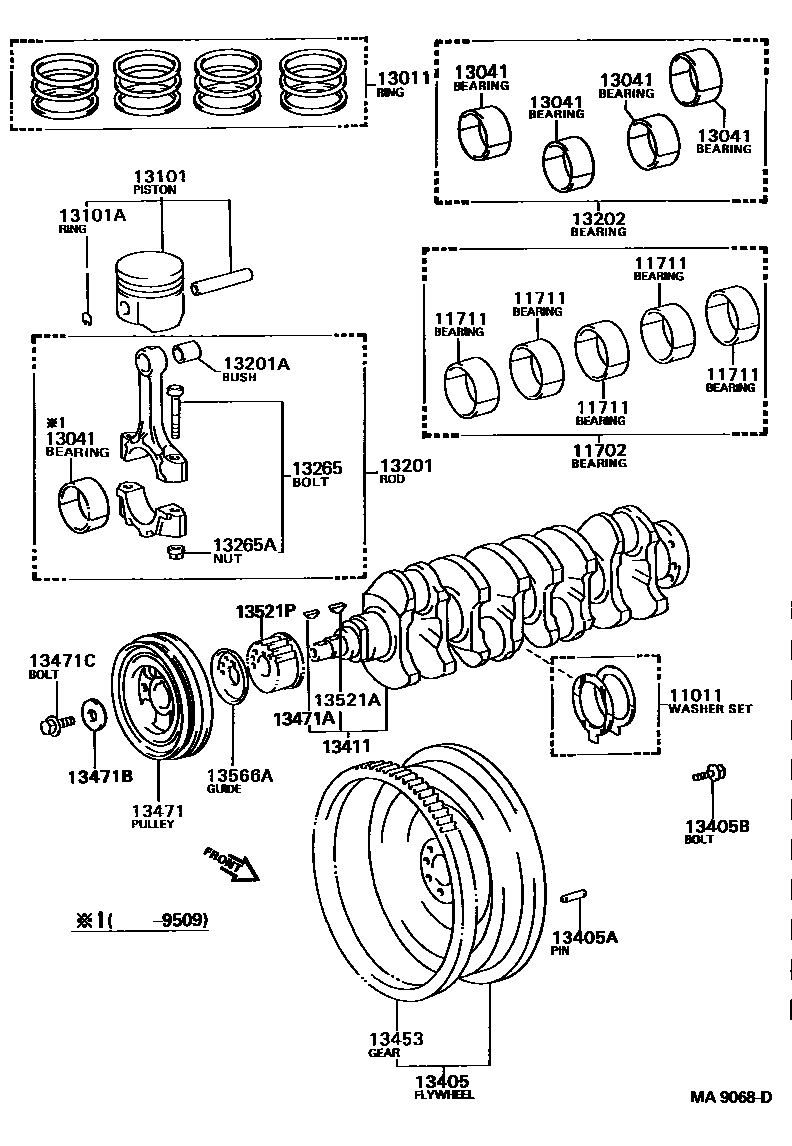

CRANKSHAFT & PISTON
